0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder

Certification
China SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD certification
China SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD certification
Customer Reviews
Well received the PET strap making machine today, it's easy for installation and operation.

—— Ahmed from Sudan

Since using JIATUO strapping line, our production efficiency has increased dramatically and the equipment is running very stably!

—— Avinash from India

Excellent cooperation with Jiatuo Machinery, and thanks for Zoey's fast service. I am going to buy another one PP making machine!!!

—— Mustafa Koçak from Turkey

High production capability and low energy consumption, which can help me to make lots of money!!

—— Kashan from Pakistan

This is the second PP machine I ordered, the output is very high, the energy consumption is low, which greatly saves my production cost, thank you very much for Arey's patient guidance and service!

—— Hasseb from Columbia

JIATUO's technical team is very professional, door to door installation of our machine, a few days is exactly stable operation, thank you very much!

—— Farzed from Turkey

I'm Online Chat Now

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder
0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder
0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder

Large Image :  0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder

Product Details:
Place of Origin: CHINA
Brand Name: PET strap making machine
Certification: IS CEO
Model Number: JTPET-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder

Description
Strap Thickness: 0.4-1.2mm Model: 100*2900mm
Voltage: 380V/50HZ (customized) Raw Material: PET Bottle Flake Material, 100% Broken Material
Winding Method: Manual/automatic Total Power: 250KW(Power For Operation:120-120KW)
Power: 45KW Strap Width: 9-32mm
Capacity: 180-200kg/H Pull: 350-650kg
Highlight:

Automatic Winder PET Strap Making Machine

,

Customized PET Strap Making Machine

,

1.2mm PET Strap Making Machine

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder



                                        Technical parameters of PET belt production line

Machine name
PET strap making machine
Place of origin
SHENZHEN, China
Certification
50 pantents
Raw material
Reclycled material/ bottle flakes material
Product width
9-32mm
Product thickness
0.4-1.2mm
Manpower
2-3persons/shift
Machine size
28-35*2*8M
Extruder
JT-PET90
JT-PET100
JT-PET125
Strap Qty
1-2
1-3
2-4
Max output
220-250KG/H
300-330KG/H
480-500KG/H




Feature of PET strap making machine



1. Even plasticization and stable extrusion with automatic control for the full line
2. The dosing pump ensures continuous and stable production
3. Chemical fiber filter 2.5m2 filtration area can get rid of impurity effectively
4. 100% recycled material can be used for production.
5. New design dehumidifier

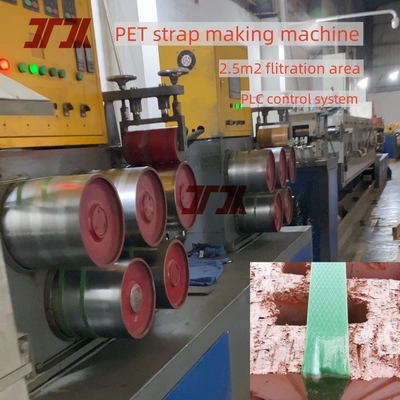

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 0

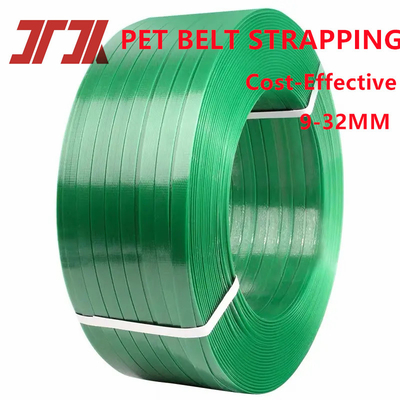

Application of PET strapping



PET packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.



Production description of PET strap making machine



 Packing belts are very common in life.

It is needed to complete the packaging and fixing of goods. So its usage rate is very high.

PET packaging belt production line, including, drying, extrusion, traction, stretching, fixing, winding, and other parts.

It is characterized by fast speed, large production capacity and high safety.

We provide global installation training services, input and output, maximize revenue.

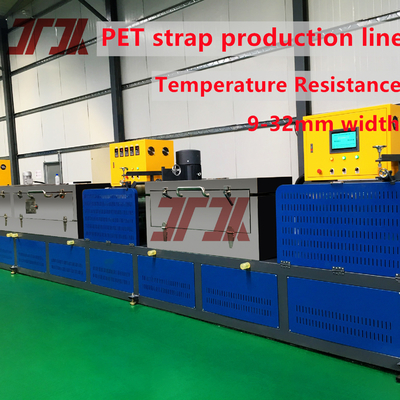

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 1



FAQ



1.Q: How do you make sure the machine quality?

A: To make sure the machine is qualified before deliver to our customer, we always arrange production testing, customer can assign the testing strap's specification. Customer could join the testing process or we can provide video to show customer.



2.Q: Can the strap produced by your machine be used by full automatic strapping machine?

A: Yes, One of ur advantages is to provide customer Production lines that produce full Automatic strap-ping, Many of our customer now is supplying full automatic strapping to big Enterprises like Huawei,Gree, Haier, TCL etc. the quality of the straps are well recognized by the end users.



3.Q: Can we customize machine such as machine size,special strap specification or production capacity?

A: Yes, we are a professional factory which specialized in making PP and PET packing strap production line, we have rich experience in this industry, we can provide all kinds of solutions to customers.

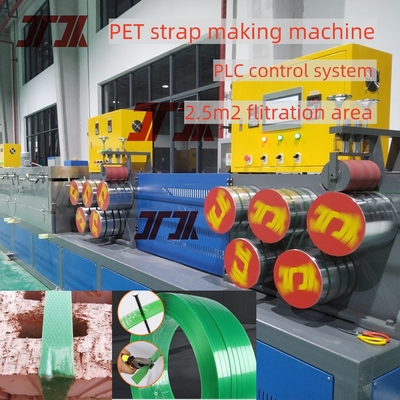

0.4-1.2mm Customized PET Plastic Strap Making Machine For PET Strap Band Extrusion With Automatic Winder 2
