Single Screw PET Strap Production Double Output Making Machine With Automatic Grade Winder
Technical parameters of PET belt 2output production line
| Raw material |
PET granules or PET recycled material |
| Width of final product |
9-32mm |
| thickness of final product |
0.4-1.2mm |
| Max Capacity |
180-200kg/h |
| Manpower |
1-2 persons/shift |
| Machine Dimension |
55*2*8m |
| BRANDS |
| Gearbox: |
GUOMAO |
| Contactor: |
Siemens |
| Temperature controller |
Fotek |
| Inverter |
INVT |

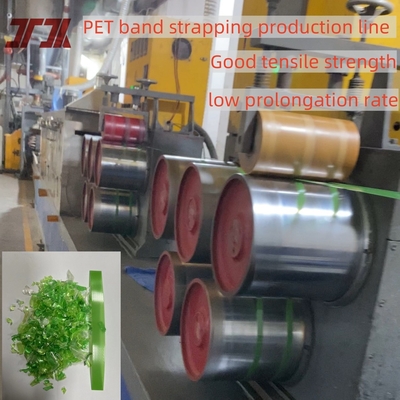

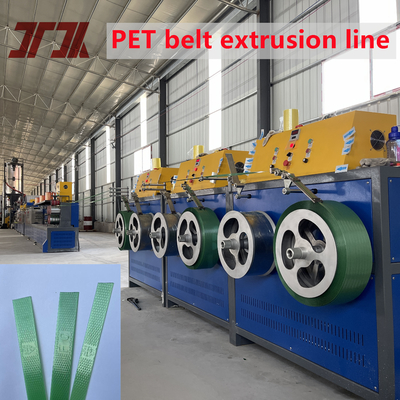

Production description of PET belt making machine
PET strapping machine is used to make PET straps, which are widely used for packing heavy goods, such as building materials, pallets, large equipment, etc. It is strong and has no cracks to protect the goods. It is strong, durable and can protect the goods safely. Because of environmental protection and durability, it has completely replaced the use of steel belts.
Advantage of PET Stapping making machine
1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process PET bottle flakes or 100% recycled material.
3.Plasticization and stable extrusion can with PLC automatic control for the full line.
4.According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.

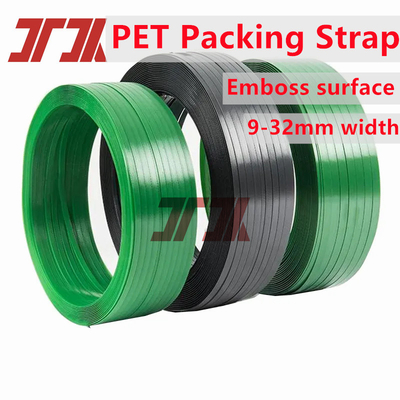

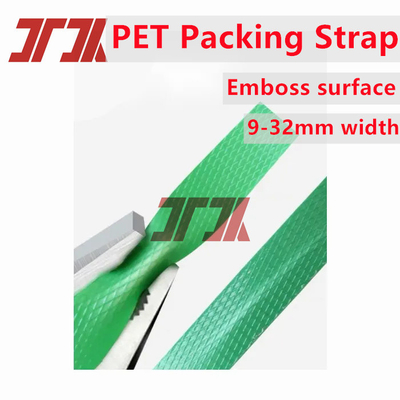

Application of PET strapping
PET packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
