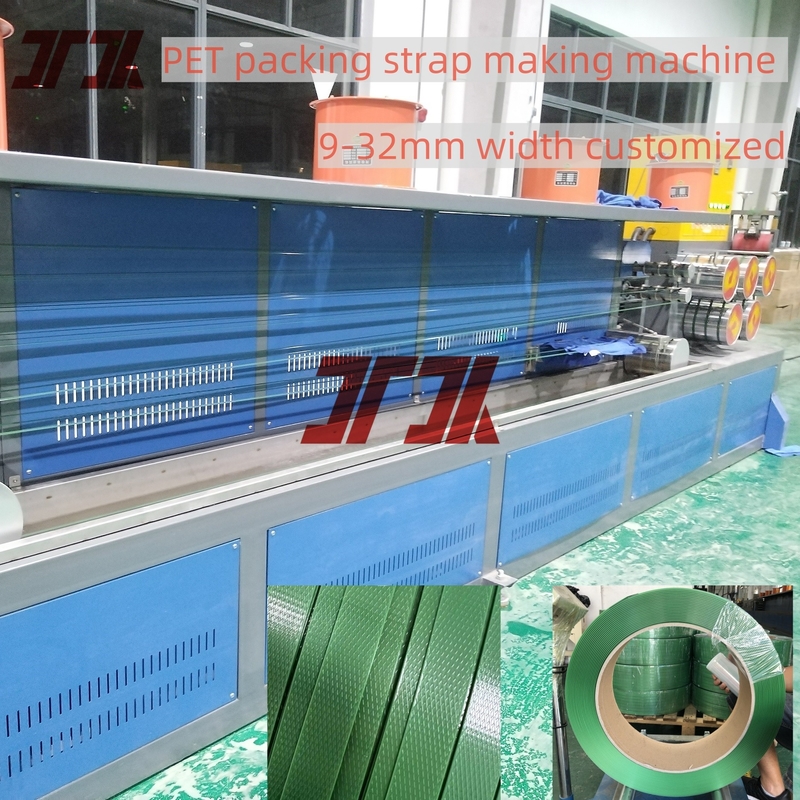

High Quality Pet Packing Belt Production Line with Automatic Neatly Winder

Certification
China SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD certification
China SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD certification
Customer Reviews
Well received the PET strap making machine today, it's easy for installation and operation.

—— Ahmed from Sudan

Since using JIATUO strapping line, our production efficiency has increased dramatically and the equipment is running very stably!

—— Avinash from India

Excellent cooperation with Jiatuo Machinery, and thanks for Zoey's fast service. I am going to buy another one PP making machine!!!

—— Mustafa Koçak from Turkey

High production capability and low energy consumption, which can help me to make lots of money!!

—— Kashan from Pakistan

This is the second PP machine I ordered, the output is very high, the energy consumption is low, which greatly saves my production cost, thank you very much for Arey's patient guidance and service!

—— Hasseb from Columbia

JIATUO's technical team is very professional, door to door installation of our machine, a few days is exactly stable operation, thank you very much!

—— Farzed from Turkey

I'm Online Chat Now

High Quality Pet Packing Belt Production Line with Automatic Neatly Winder

High Quality Pet Packing Belt Production Line with Automatic Neatly Winder
High Quality Pet Packing Belt Production Line with Automatic Neatly Winder
High Quality Pet Packing Belt Production Line with Automatic Neatly Winder High Quality Pet Packing Belt Production Line with Automatic Neatly Winder High Quality Pet Packing Belt Production Line with Automatic Neatly Winder High Quality Pet Packing Belt Production Line with Automatic Neatly Winder High Quality Pet Packing Belt Production Line with Automatic Neatly Winder

Large Image :  High Quality Pet Packing Belt Production Line with Automatic Neatly Winder

Product Details:
Place of Origin: CHINA
Brand Name: PET strap making machine
Certification: IS CEO
Model Number: JTPET
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days

High Quality Pet Packing Belt Production Line with Automatic Neatly Winder

Description
Strap Thickness: 0.4-1.2mm Model: 100*2900mm
Voltage: 380V/50HZ (customized) Raw Material: PET Bottle Flake Material, 100% Broken Material
Winding Method: Manual/automatic Total Power: 250KW(Power For Operation:120-120KW)
Power: 45KW Strap Width: 9-32mm
Highlight:

Automatic Pet Packing Belt Production Line

,

High Quality Packing Belt Production Line

,

Automatic Winder Packing Belt Production Line

High Quality Pet Packing Belt Production Line with Automatic Neatly Winder

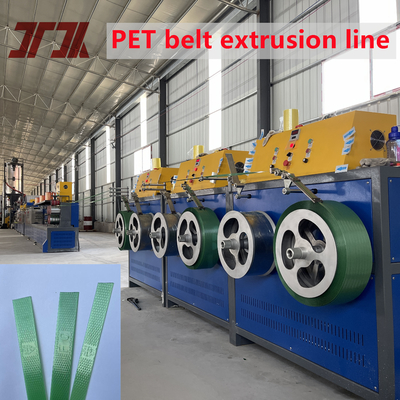

Technical parameters of PET belt 3output production line


Raw material PET granules or PET recycled material
Width of final product 9-32mm
thickness of final product 0.4-1.2mm
Max Capacity 300-330kg/hour
Manpower 2-3 persons/shift
Machine Dimension 58*2*8m
BRANDS
Gearbox: GUOMAO
Contactor: Siemens
Temperature controller Fotek
Inverter INVT

High Quality Pet Packing Belt Production Line with Automatic Neatly Winder 0

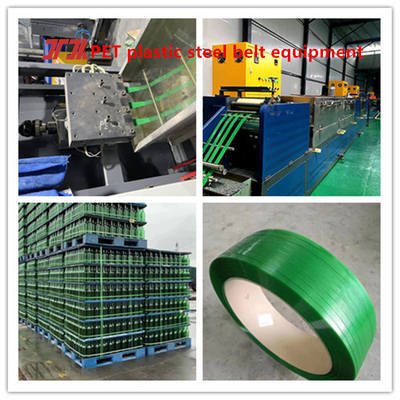

Feature of PET Stapping making machine

1. Special designed extrusion die mould; And the improved screen changer realize non-stop screen changing, and without material leakage. And also equit the melting pump to ensure the packing strap material out more average.
2. Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension strength. high temperature resistance.
3. Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;

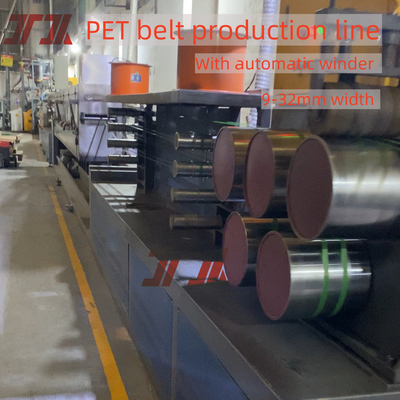

4. Double-station automatic winder, easy operation and winding neatly.
5. We provide our worldwide customer the turn-key project. We will assist our customer from the installation to the final production of this line.

Advantage of PET strapping

1. Strong tension: Strong tensile resistance, can withstand 0.5 to 8.5 tons of tension, so it can replace traditional steel belt.
2. Shock resistance: because of its ductility and recovery after deformation, the fiber packing belt absorbs shock energy better than the steel belt, and it won't loosen after the cargo contracts or expands.
3. Low cost: the cost of packing tools is low, only a simple tool is needed, and the wear is small, and the maintenance cost is low.
4. Safety: it is light and soft, and it no need to be used with gloves. When it is cut off, it does not blip, which will prevent to injure transporting workers and customers.



High Quality Pet Packing Belt Production Line with Automatic Neatly Winder 1



FAQ

1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.


2. Do you have quality certificate?
Yes we have CE, SGS etc.


3. What's the delivery time?
Around 40~50days, however, based on order.



4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
