9-32mm High Strength Pet Packing Strip Belt Making Machine with PLC System

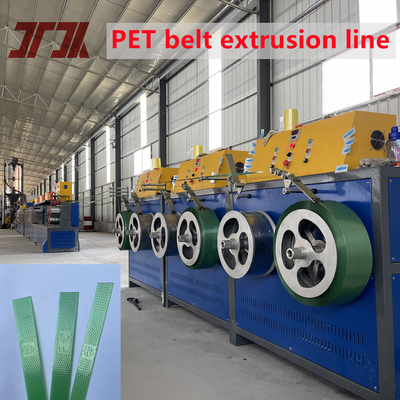

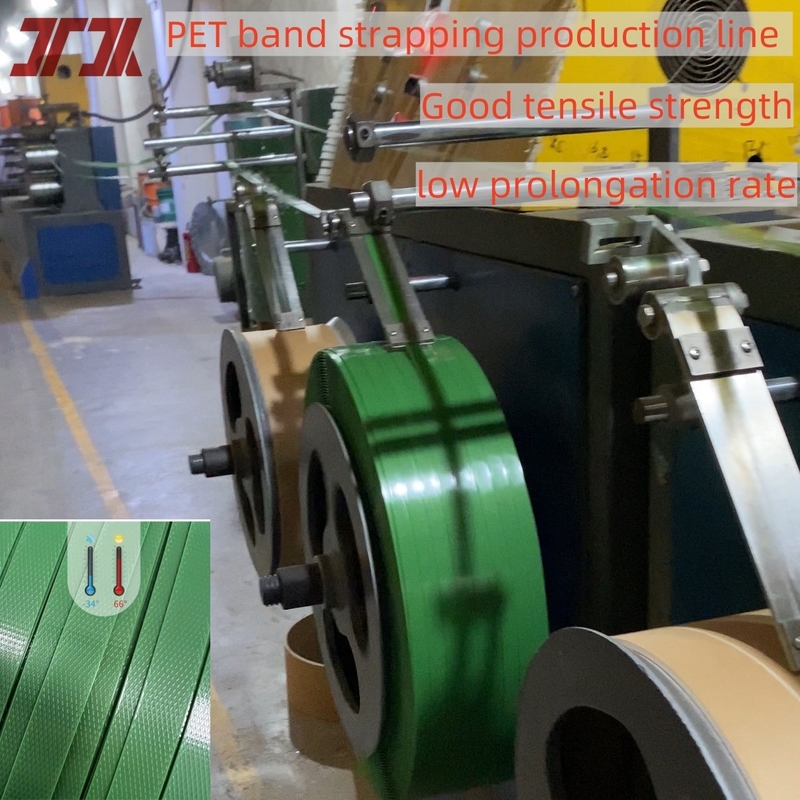

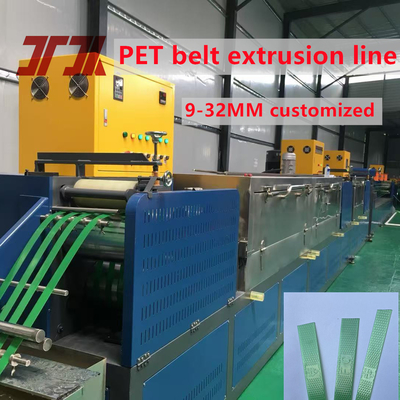

Technical parameters of PET belt 3output production line
| Raw material |
PET granules or PET recycled material |
| Width of final product |
9-32mm |
| thickness of final product |
0.4-1.2mm |
| Max Capacity |
300-330kg/hour |
| Manpower |
2-3 persons/shift |
| Machine Dimension |
58*2*8m |
| BRANDS |
| Gearbox: |
GUOMAO |
| Contactor: |
Siemens |
| Temperature controller |
Fotek |
| Inverter |
INV |
|
Descripition:

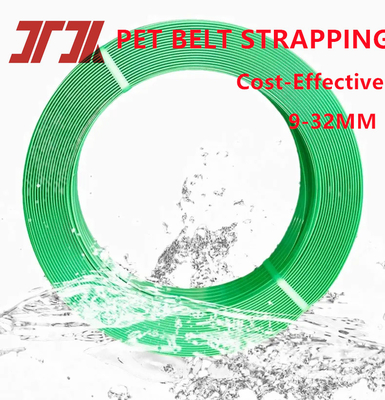

PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
Advantages of PET Stapping
1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process 100% recycled PP/PET bottle flakes or pellets which can saving cost of material.
3.Plasticization and stable extrusion can with PLC automatic control for the full line. can be choose the language of require.
4.According different requirements, changing materials for make strap have better and special function.
5.Melt filter with two pistons with air venting design and back flushing.
6.Number of strap:1,2,3,4,6,Width: 5mm-19mm,Thickness: 0.4mm-1.2mm
7.Workers: 2 -3 workers per shift, 12 hours/shift.
About us:
1. We only make and export high quality machine. because we know after machine exporting, if machine has problems, it is very high cost to change parts and repair. so we must ensure the machine will work good in buyer's factory
2. raw material of the machine : from the machine frame steel, till all parts, like motor, gear box, screw, heaters,bearing, electric parts, cables, we all use the best. we don't use low quality low price parts. we must gurantee the parts can use more than 20 years.
3. processing : we use CNC machine process the parts , keep the parts in precision. those can ensure machine produce high precision straps.
4. machine surface treatment : we make polish on the machine outside by hands. we paint three times painting on the surface. to keep the machine outside perfect showing , and nice view.
5. designing : we adopt the most and latest technology of the world of strap machine. the machine proper designing ensure the machine can produce out automatic machine use straps.
