Product Details:
|
Strap Thickness: | 0.4-1.2mm | Model: | 100*2900mm |
---|---|---|---|
Voltage: | 380V/50HZ (customized) | Raw Material: | PET Bottle Flake Material, 100% Broken Material |
Winding Method: | Manual/automatic | Total Power: | 250KW(Power For Operation:120-120KW) |
Power: | 45KW | Strap Width: | 9-32mm |
Highlight: | Automatic Winder PET Strap Making Machine,Single Pet Packing Belt Production Machine,Making Strap PET Strap Making Machine |

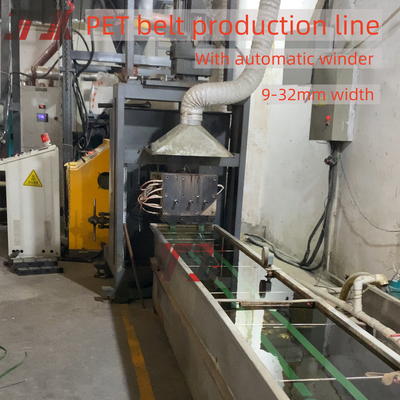

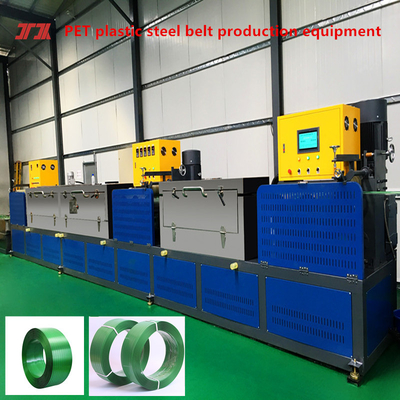

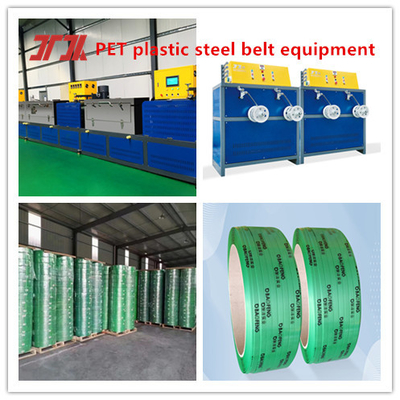

Technical parameters of PET belt 3output production line
Screw model | 90 Single screw |
Number of strap | 2 straps |
Width | 9-32mm |
Thickness | 0.3-1.2mm |
Screen changer | Automatic/Manual |
Control system | PLC control(Chinese and English other as require) |
Production capacity | 220-250kg/H |
Reducer Brand | GUOMAO |
Motor Brand | Siemens |
Pull of finial product | 150kg-900kg |
Line speed | More than 160m/min |
Material | PET crushed material/bottle flake material |
Advantage of PET belt
1. Built for Heavy-Duty Applications.
2. Secure Your goods with Confidence.
3. High Tensile Strength for every environment.
4. Strength Integrate Sustainability.
5. Ideal choose for Packaging, Agriculture, and industry etc.

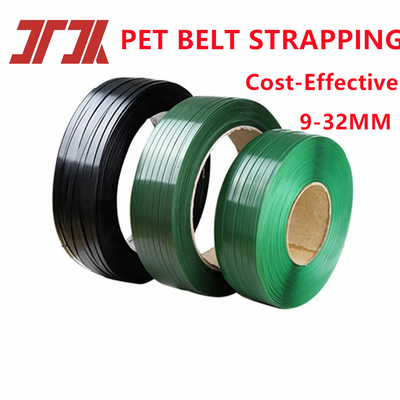

Descripition of PET strapping
1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ºC, can be used under the environment of 120 ºC for a long time not to distort,it has a good stability.
4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
PET packaging tape, also known as PET plastic tape, is a new type of packaging material widely used in the world. It replaces the use of steel tape by its strong pulling force, ease of use and environmental protection.
With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum
industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry.
About us:
1. We only make and export high quality machine. because we know after machine exporting, if machine has problems, it is very high cost to change parts and repair. so we must ensure the machine will work good in buyer's factory
2. raw material of the machine : from the machine frame steel, till all parts, like motor, gear box, screw, heaters,bearing, electric parts, cables, we all use the best. we don't use low quality low price parts. we must gurantee the parts can use more than 20 years.
3. processing : we use CNC machine process the parts , keep the parts in precision. those can ensure machine produce high precision straps.
4. machine surface treatment : we make polish on the machine outside by hands. we paint three times painting on the surface. to keep the machine outside perfect showing , and nice view.
5. designing : we adopt the most and latest technology of the world of strap machine. the machine proper designing ensure the machine can produce out automatic machine use straps.
