High-end intelligent PET plastic steel strap extruder PET strapping equipment with 9-32mm width
Product Description of pet strap manufacturing machine:
PET strapping production line is a high-speed, intelligent and environmentally friendly plastic equipment with the following advantages:
1. Raw materials: PET plastic steel belt can use raw materials: bottle flakes or crushed materials or thickening granular materials
Bottle flakes: waste mineral water, Sprite, Coke and other bottle flakes as raw materials, which are crushed, cleaned and dried.
Crushed materials: finished PET plastic steel belt is crushed and screened, cleaned and dried;
Viscosity granular materials: PET crushed materials are processed, cleaned and thickened granular materials
PET plastic steel belt winding machine can be equipped with: Automatic winding machine or semi-automatic winding machine
Width: 9-32mm, Thickness: 0.6-1.2mm,
Technical parameter of PET strap double output extrusion line
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |

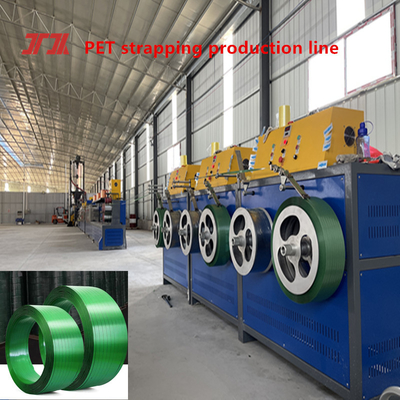

pet strap production line
pet strapping band making machine
pet strapping band machine
pet strapping band making machine
PET plastic steel belt application industry:
PET packing tape, PET plastic steel strapping tape, is widely used in the strapping of various heavy goods and used to fix the goods during transportation. In warehouses, PET packing tape is also often used to fix goods and is used in heavy industries, such as the strapping and fixing of building materials.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A:shenzhen, China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20-23T, 40GP container * 3PCS
