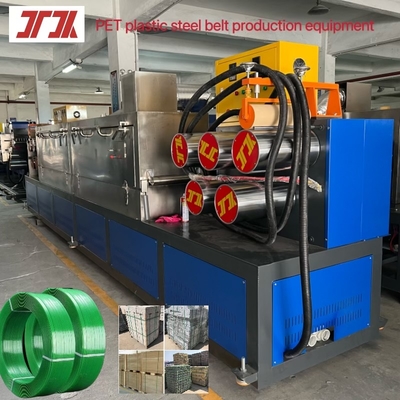

Packaging machinery PET extruder PET plastic steel belt equipment for automatic winding machine
Product Description of pet strap manufacturing machine:
PET packaging tape, also known as PET plastic steel tape, is a material that can replace steel strapping tape and has been used in the steel, aluminum, chemical fiber, cotton spinning, brick making, paper making and metal can industries.
With strong tensile strength, it not only has the durability of steel tape, but also has excellent impact resistance, which can ensure unparalleled safety of your products.
Raw materials: 100% bottle flakes or crushed materials
Width: 9-32mm, Thickness: 0.4-1.2mm
Embossing machine features:
1. Crafted with precision, the embossing wheel undergoes nitriding for enhanced durability, achieving an impressive surface hardness of 60 degrees through heat treatment. This ensures that the surface texture of the strapping tape, as pressed by this machine, is both distinct and textured, optimally designed for automatic strapping machines to exert adequate force.
2. Ingeniously designed, the embossing machine's upper and lower flower wheels are synchronized with precision gears, guaranteeing perfect rotational harmony. This ensures that the intricate patterns on both sides of the strapping tape are flawlessly aligned, enhancing both the aesthetic appeal and the transparency of the tape.
3. Our design innovation allows for a fixed gap between the upper and lower flower wheels during assembly, preventing any collision and significantly extending the lifespan of these critical components.

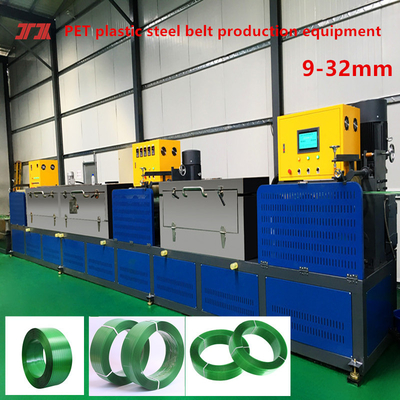

Technical parameter of PET strap double output extrusion line
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
PET plastic steel belt raw materials:
PET plastic steel belt is a kind of strapping belt made of waste mineral water bottles, Sprite bottles, Coke bottles, etc.

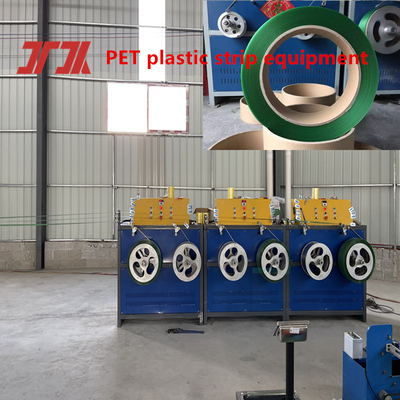

The PET plastic steel belt equipment winding machine adopts a constant force winding system and a uniquely designed deviation correction device,
which ensures neat winding and a smooth and beautiful surface.
The PET plastic steel belt production line uses a rotary honeycomb dehumidification and drying system to dry the raw materials.
The dew point of -50℃ ensures that the moisture content of the raw materials is ≤50PPM, and it also has a solid phase polycondensation and viscosity-increasing effect on the original.
FAQ:
Q: Can the PET plastic steel belt equipment be customized?
A: Customization is supported
Q: What is the voltage of the PET plastic steel belt equipment?
A: Standard 380V/50HZ, customization is supported.
Q:Q: How many strips can the PET plastic steel strip machine extrude at the same time?
A:2-8 strips
Q: What is the trading method of PET plastic steel belt equipment?
A:TT ,LC
