Supply plastic machinery PET strapping machine PET plastic steel strapping production line PET strapping equipment for 9-32mm width
Product Description of pet strap manufacturing machine:
PET strapping production line equipment fully meets environmental protection requirements. PET plastic steel belt can be produced using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
The PET plastic steel belt production line is equipped with a metering pump extrusion system, which makes the extrusion more uniform and the error range of the produced PET plastic steel belt is smaller.
PET plastic steel belt equipment adopts special screw for extruder, which has good plasticization, uniform extrusion, wear resistance and long service life.
Width: 9-32mm, Thickness: 0.6-1.2mm,
PET plastic steel belt winding machine can be equipped with: Automatic winding machine or semi-automatic winding machine
Technical Parameters of pet strap manufacturing machine:
| Type |
PET Plastic Extrusion Machine |
| Strap Width |
9-32mm |
|
StrapThickness
|
0.6-1.2mm |
| Switchgear |
Schneider |
| Solid-state Relay |
Taiwan Fotek |
| Screw |
100*2900mm |
| Raw Material |
100% Recycled Bottle Flakes Material |
| Weight |
18000KG |
| Warranty |
1 Year |
| Winding Method |
Manual/Automatic |
| Cylinder |
Double Cylinder/Single Cylinder |
| Control System |
PLC Control System |

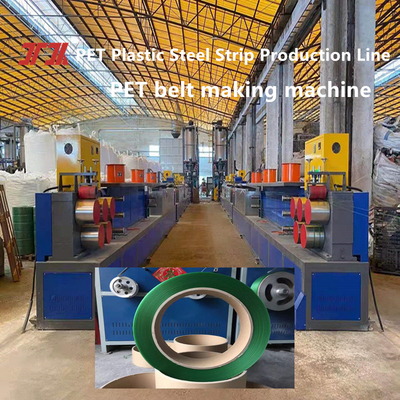

pet strap production line

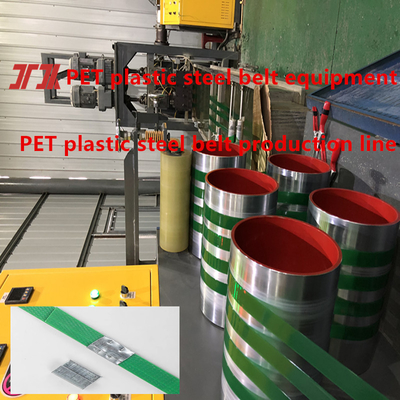

pet strapping band making machine

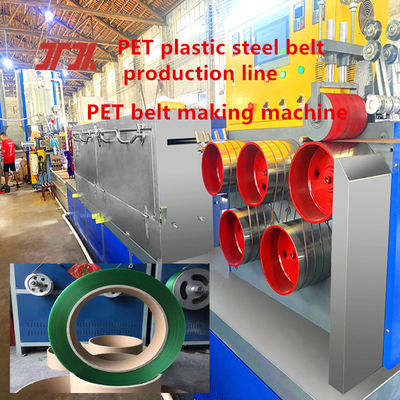

pet strapping band machine
pet strapping band making machine
Raw materials:
100% bottle flakes or crushed materials
The PET plastic steel belt production line is equipped with a special screw for the extruder,
which has good plasticization, strong friction ability and long service life.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
