Extruder Plastic Machinery PET Plastic Steel Strip Equipment with 9-32mm Width
Product Description of pet strap manufacturing machine:
PET strapping production line equipment fully meets environmental protection requirements. PET plastic steel belt can be produced using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
PET strapping production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure that the product quality is the same every time.
PET plastic steel belt equipment adopts a unique oven heating system and an internal reciprocating winding method to fully utilize thermal energy and greatly reduce power loss.
PET plastic steel belt winding machine can be equipped with: Automatic winding machine or semi-automatic winding machine
Features of automatic winding machine:
a, Human-machine interface: various functions and displays in the PLC touch screen panel of the automatic winding machine (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
Technical parameter of PET strap double output extrusion line
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |

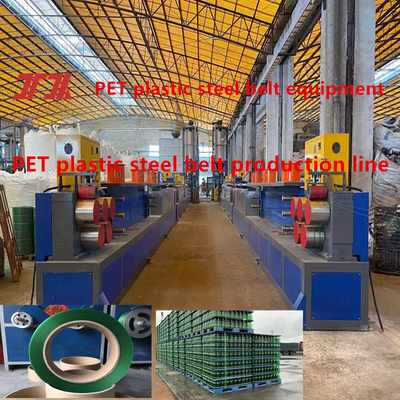

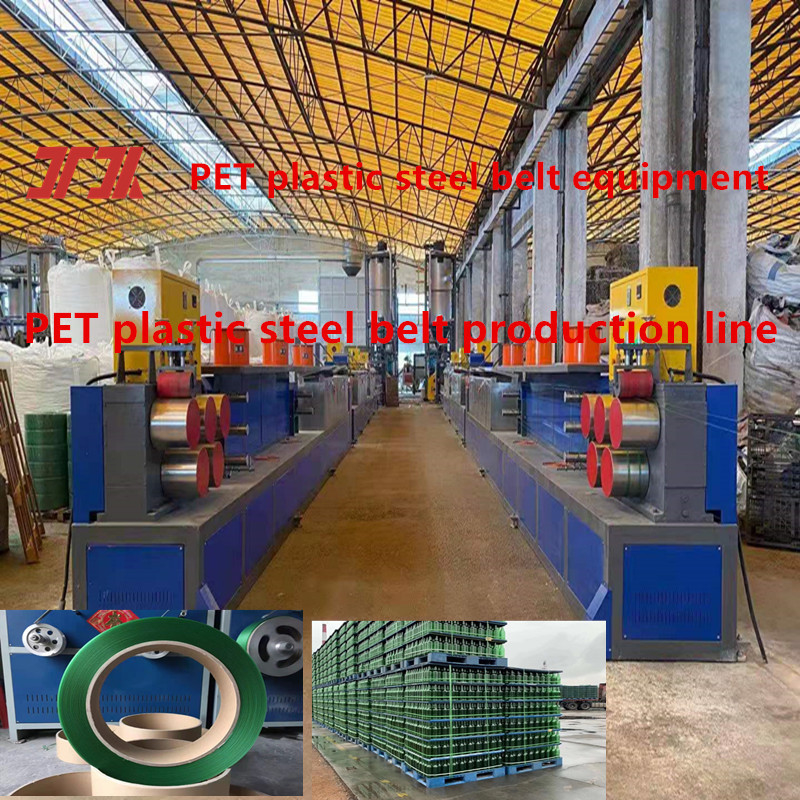

pet strap production line
pet strapping band making machine
pet strapping band machine
pet strapping band making machine
Raw materials:
100% bottle flakes or crushed materials
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A:shenzhen, China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20-23T, 40GP container * 3PCS
