Supply high-end intelligent PET plastic steel belt equipment PET extruder with 9-32mm width

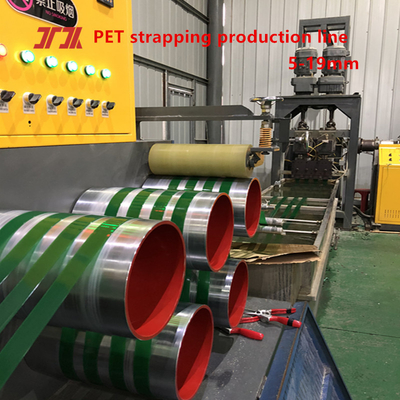

PET strapping production line equipment fully meets environmental protection requirements. PET plastic steel belt can be produced using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
PET strapping production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure that the product quality is the same every time.

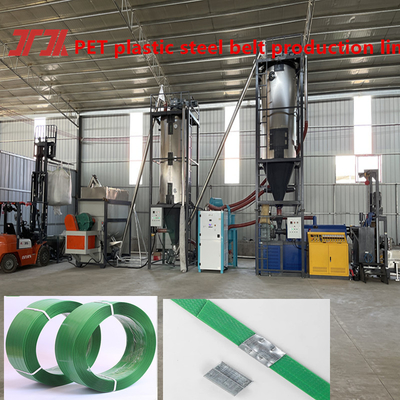

The equipment is equipped with two sets of shaping oven systems, one stretch shaping, two shaping shaping, etc. The equipment consists of: stirring part, feeding part, drying part, dehumidification part, main machine part, cooling part, extension part, shaping part, small traction part, large traction part, embossing part, winding machine, etc.

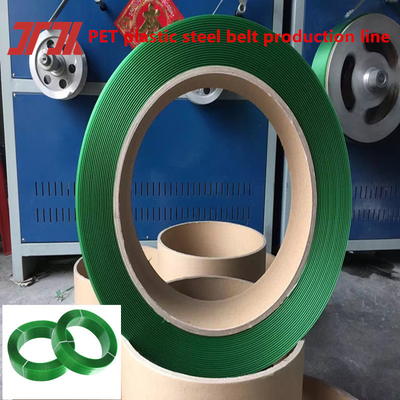

PET plastic steel belt winding machine can be equipped with: Automatic winding machine or semi-automatic winding machine
Technical parameter of PET strap double output extrusion line
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
>=150 |
>=150 |
>=150 |
>=150 |
>=150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Horizontal mixer
Uses super strong magnets
to absorb metal debris in the material
It can mix bottle flakes or crushed materials together during production to make the quality of the produced PET tape better.
Applications of PET Strap Making Machine:
Our PET Plastic Steel Strap, a hot melt adhesive marvel, works seamlessly with various strapping tools, offering versatile bonding through electric heating, friction, and hot melt.
1. Handheld Strapping Machine
2. Pneumatic Strapping Machine
3. Manual Iron Buckle Strapping Machine
4. Automatic Strapping Machine
After-sales service:
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
