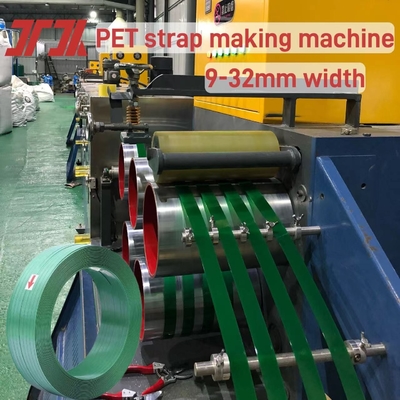

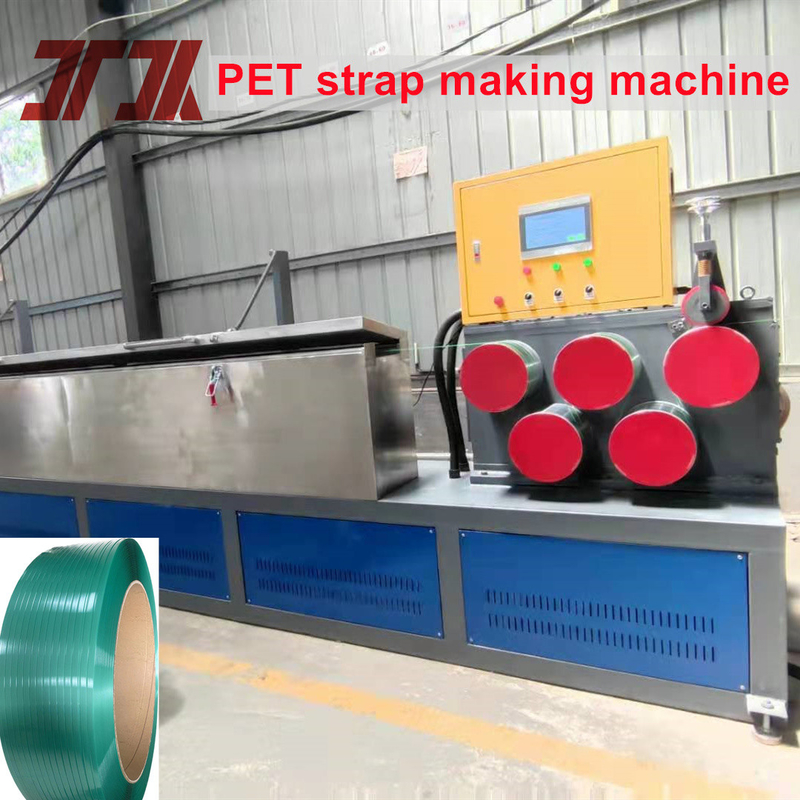

Single Screw PET Strap Making Machine Use For Packing Cargo PET Strap

Large Image : Single Screw PET Strap Making Machine Use For Packing Cargo PET Strap

Product Details:

Place of Origin:	CHINA
Brand Name:	JIATUO CHINA
Certification:	CE SGS ISO
Model Number:	JTPET-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	plastic film
Delivery Time:	30-40 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000sets

Contact Now

Single Screw PET Strap Making Machine Use For Packing Cargo PET Strap

Description

Product Name:	PET Strap Extrusion Line	Material:	PET Bottle Flakes Material/PET Recycle Material
Power Supply:	380V/50Hz/220V/60HZ Three-phase	Automation:	PLC Computer Touch Screen
Oil Removal And Dust Removal Filter:	1set	Main Motor:	37KW(Siemens)
Neat Winding:	YES	Pre Drying Tower:	5000L
Production Capacity:	220-250kg/H	Width:	9-32mm
Thickness:	0.4-1.2mm	Line Speed:	>260m/min
Highlight:	Single screw PET strap making machine , pet strap making machine price , Packing cargo PET strap making machine

Single screw PET strap making machine use for packing cargo PET strap

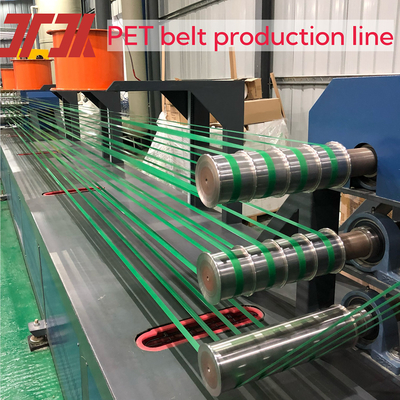

Technical parameters of PET belt 2output production line

Finished Product Size	Width:9-32mm Thickness:0.3-1.2mm
Main Material	Bottle flake material/PET recycled material
Extruder	90 Single-Screw
Production Capacity	230-250kg/h
Line speed	Max 180m/min
Total length	42m
Pull of finial product	150kg-800kg
Line speed	More than 160m/min
Screen changer	Automatic/Manual (Can be choose)

Description of PET strap band production line

This PET packing strap extrusion machine can use 100% strap scrap raw material to produce both hand and full automatic strapping machine used packing strips. it's excellent performance production and saving cost abilities won customer's high recognize and comments.

Process flow of PET belt production line

1. feeding to → 2.mixing raw materials→ 3. ingredients are vacuum dehumidification prebake→ 4. Vacuum dehumidification of raw materials→ 5. raw materials melting extrusion→ 6. material embryo expression(with embryo) cooling molding → 7.preheat the oven→ 8. firstly stretching → 9. secondly streching → 10. embossing → 11. tempering oven→ 12. cooling → 13.winding to finished product.

Single Screw PET Strap Making Machine Use For Packing Cargo PET Strap 5
