32mm PP Packing Strap Making Machine Twin Screw PP Strap Extruder
PRODUCT DESCRIPTION

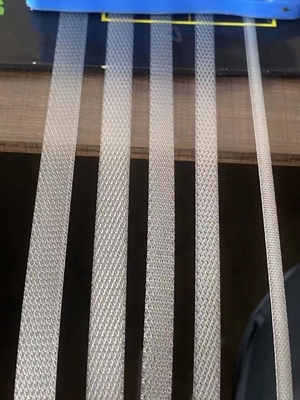

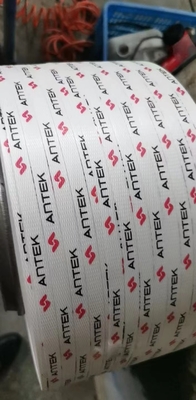

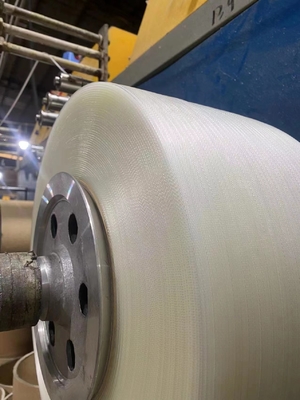

This production line is used for making full automatic PP strapping band and manual PP strap band for packing usge. The width of the strap band is 4-32 mm, Thickness is from 0.5-2.5 mm.

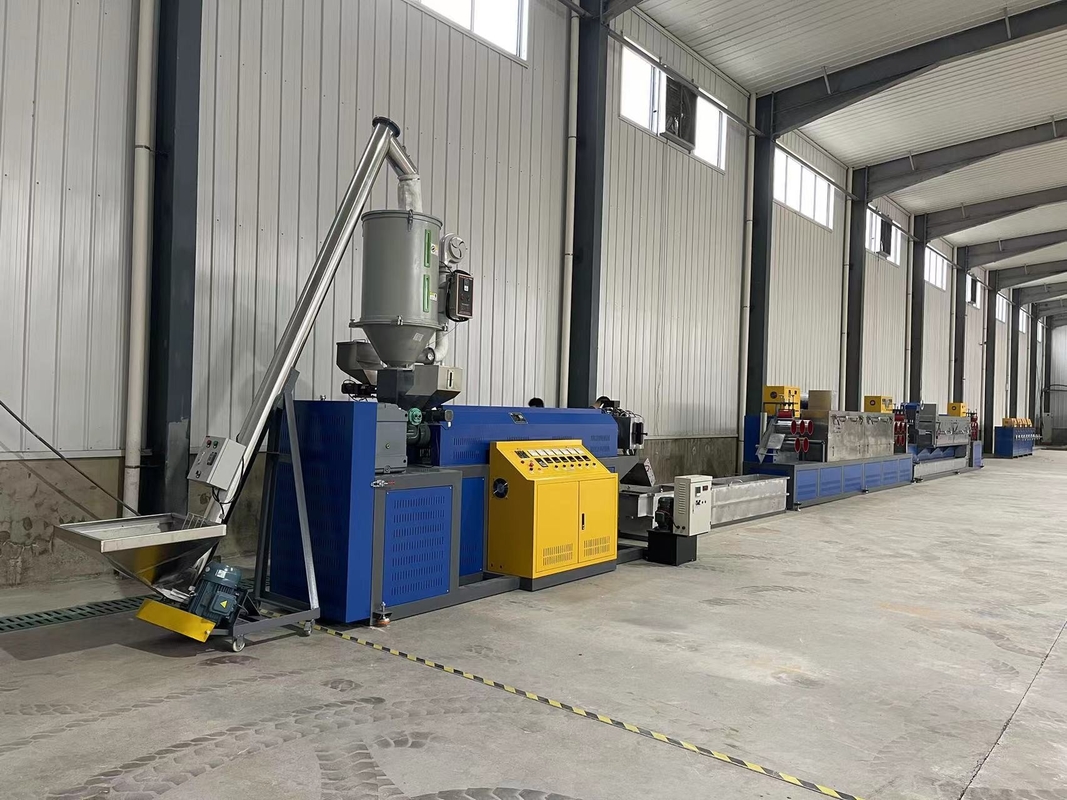

Packing belt equipment adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production, extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable, the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.
| Machine size (L*W*H) mm | 36000*1200*4000 |
| Product arrange mode | PP One out four |
| Extrusion Capacit(kg/h) | 240-300KG/H |
| Speed (m/min) | more than 250-300 |
| Number of Straps | 4 |
| PLC control system | PLC |
| Outgoing band width(mm) | 5-19 |
| Band Thickness(mm) | 0.4-1.2 |
| Capacity per day | 5-6 T |
APPLICATION & FEATURES
- PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and
drying that save a large number of equipment investment and reduce the production cost by 30%;
- Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
- With the multi-purpose machine, produce the PP straps in different specifications directly and don not need to change the mould head;
- Extrusion die channel can be closed, PLC computer control machine, simple operation, stable operation, we only produce high-end intelligent PP/PET plastic steel belt production equipment.
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the usage of PP strap? Packing boxes, money, paper.
* Will the strap be used for automatic strapping tool or manual tool? Both.
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes.
* Will the strap be used for automatic strapping tool or manual tool? Both.
FAQ
Q1:Are you a trading company or a factory?
A1:We are a factory,can give u best service.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
