PET strapping band making machine PLC control PET plastic steel strap production line 100-300m /min
Product Description of PET strapping band making machine:
PET strapping band making machine
PET strapping band making machine is a high-speed, intelligent, environmentally friendly plastic equipment,
Advantages:
Raw materials: PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
Features of PET strapping band making machine:
Efficient production-----with high degree of automation and fast production speed.

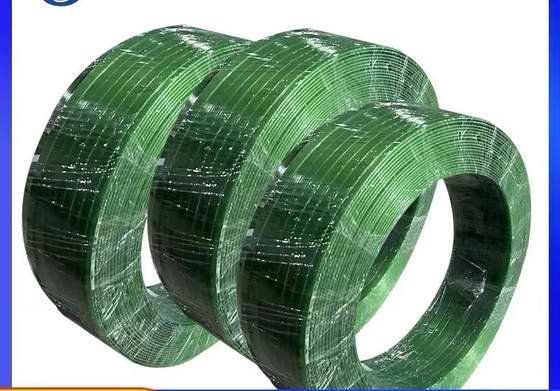

High-quality products----The produced PET plastic steel belt has high strength, good toughness and strong tensile force.
Energy saving -----energy-saving design is adopted, the raw materials are mineral water bottles, which can be recycled and the manufacturing cost is low.
Easy operation----PLC automatic control, easy to operate.
Technical Parameters of PET Strap Making Machine:
| Key Selling Points |
High Quality |
|
Name
|
PET strapping band making machine |
| Strap Width |
9-32mm |
| Color |
REQUIREMEN BY CUSTONMER |
| Host Inverter |
45KW(INVT) |
|
Screw feeder
|
3 sets
|
|
Dryer capacity
|
3000L |
| Strap Thickness |
0.6-1.2mm |
|
Oil removal and dust removal filter
|
1 set |
|
Pre drying tower
|
4000L
|
|
Main machine bucket
|
4000L |
| Voltage |
380V/50HZ (customized) |
| Paper Tube Size |
GUOMAO |
| Control System |
PLC Computer Touch Screen |
|

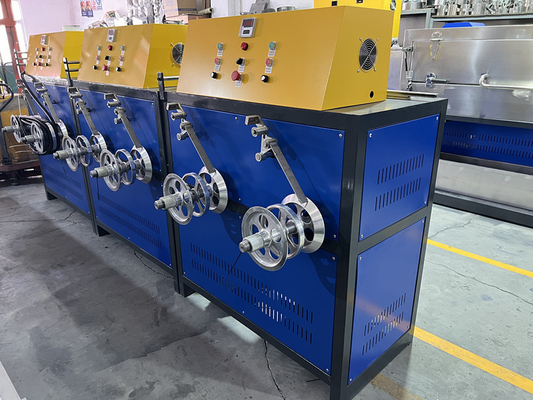

Double position winder
|
3set |

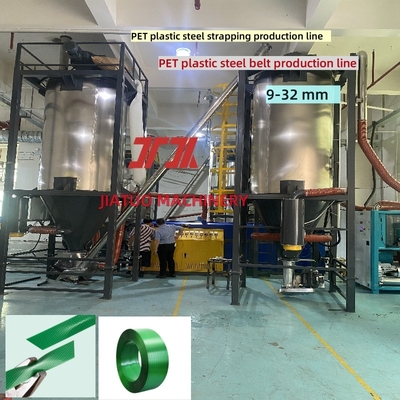

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
Packing and Shipping:
Packaging and Shipping
- The PET Strap Making Machine will be carefully packed in a sturdy wooden box to ensure safe transportation.
- All necessary parts and accessories will be securely wrapped and placed in the box.
- The wooden box will be sealed and labeled with the product name, specifications, and destination address.
- The package will be delivered to the designated shipping company for transportation.
- International shipping may require additional customs documents and fees, which will be handled by the shipping company.
