Single Screw Electric Packing Belt Extrusion Line/ PET Strap Making Machine

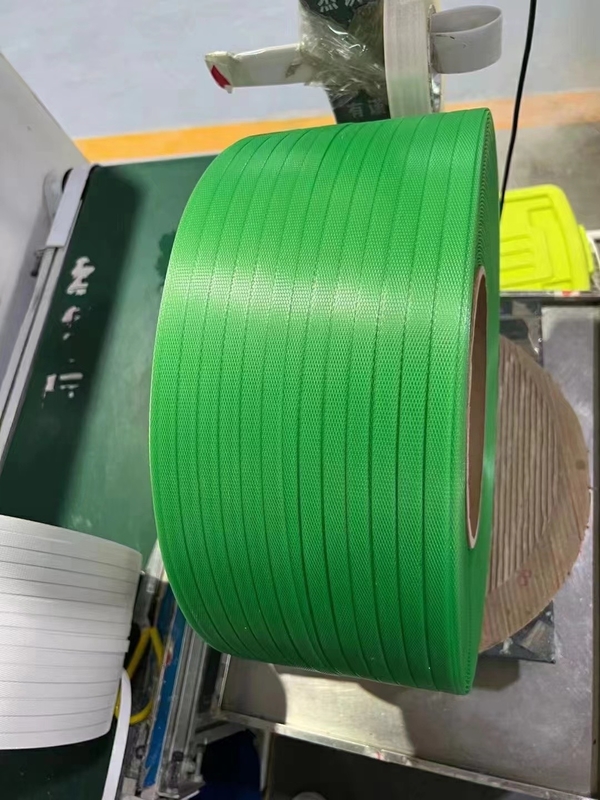

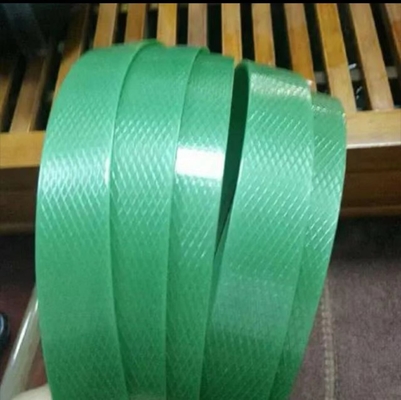

PET STRAPPING BAND
PET strapping band is a new product used in packing industry, which shares the burden loading capacity of steel straps and the elasticity of PP straps.
Similar to steel straps, the extension rate of PET strap can be adjusted according to the customers request.
This unit adopts automatic way of metered material charging and mixing, automatic circulation of preheating and drying, precise energy-saving temperature control system, melt-material metering pump, powerful straps extending device and isolating oven, as well as large capacity stainless steel water tank and automatic controlling equipment of the liquid level.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Advantages of PET strap
- Use 100% Recycled PET/PP Flakes to reduce the cost.
- Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.
- Special design hot forming tensile tank to make good forming ,equal width,straight strap.

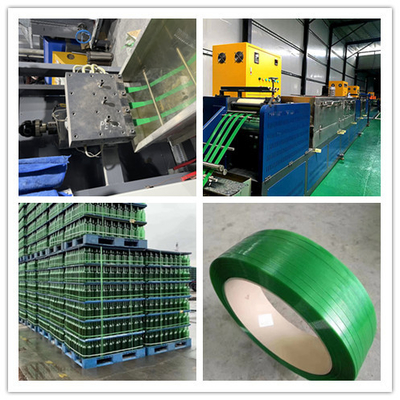

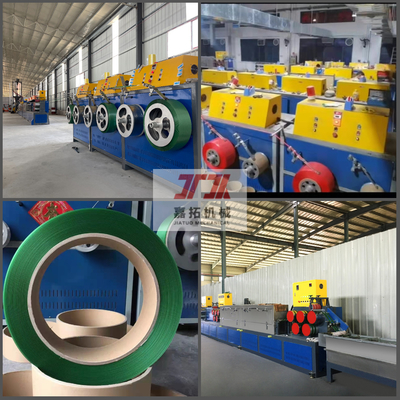

Features of PET packing strap production line
1. The raw material treatment is by our CSG serious dehumidify and dryness system, it ensures the
humidity in raw material less than 80PPM.
2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw
material.
3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the
even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good
dimension of PET strap.
4. The machine can produce 1/2/4 strap at the same time.
5. The mould is specially designed, equipped with two-stage filter.
6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile
strength performance.
7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape.
ABOUT OUR COMPANY
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.
Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine for all bags, automatic packing machine for all bags and automatic packing machine for all bags; High grade, high-strength and environment-friendly PP baling machine, PP packing belt, pet plastic steel belt and other packaging materials.
The target of Jiatuo Machinery Co., Ltd. is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Jiatuo Machinery Co., Ltd. to new and old friends.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
