High Output Strong Tension Plastic Pet / PP Straps Packing Band Belt Making Extrusion Machine
Parameters of PET 1 to 3 production machine:
| Name |
High Output Strong Tension Plastic Pet / PP Straps Packing Band Belt Making Extrusion Machine |
| Applicable raw materials |
Bottle flake material, 100% broken material |
| Number of screws |
Single Screw |
| Screw model |
150 |
| Number of extruded belts |
6 |
| Width range |
9-32mm |
| Thickness range |
0.4-1.2mm |
| Production capacity |
600kg/h (according to the weight of each meter) |
| screen changer |
Double cylinder / single cylinder |

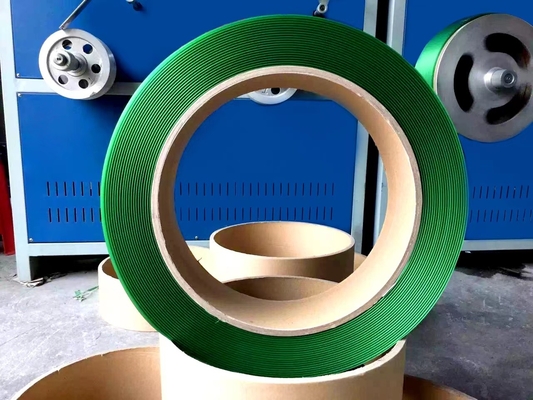

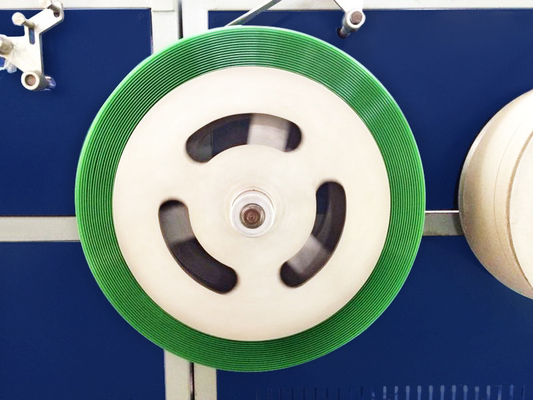

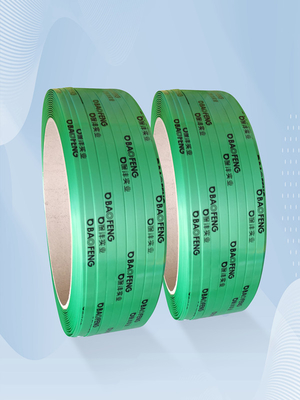

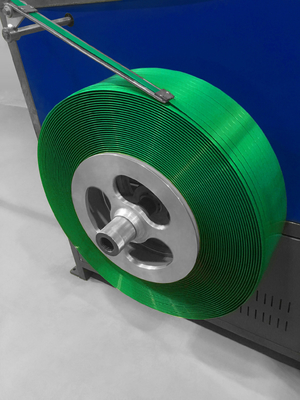

Plastic steel strap finished products:
As you see that, the plastic steel strapping can be different colors different patterns, but also can be printed according to your requirements of the company logo or any logo what you want to show, different colors depending on the color master you use.

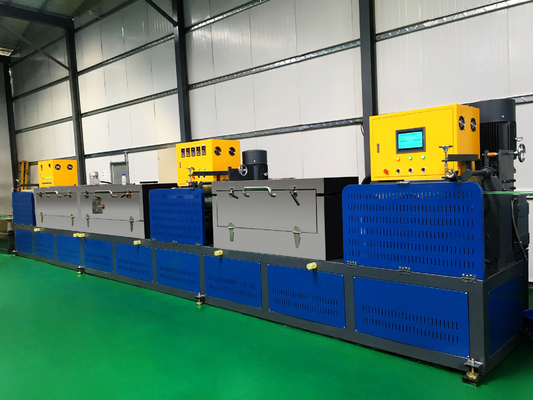

PP PET packing strap extrusion machine features
Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part;
Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps;
Stainless steel cooling trough with four thermo treatment processes displaces the traditional one;
Haul off rollers with bigger size ensure the quality of products;
New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection;
Laser embossing roller makes clear and even patterns.

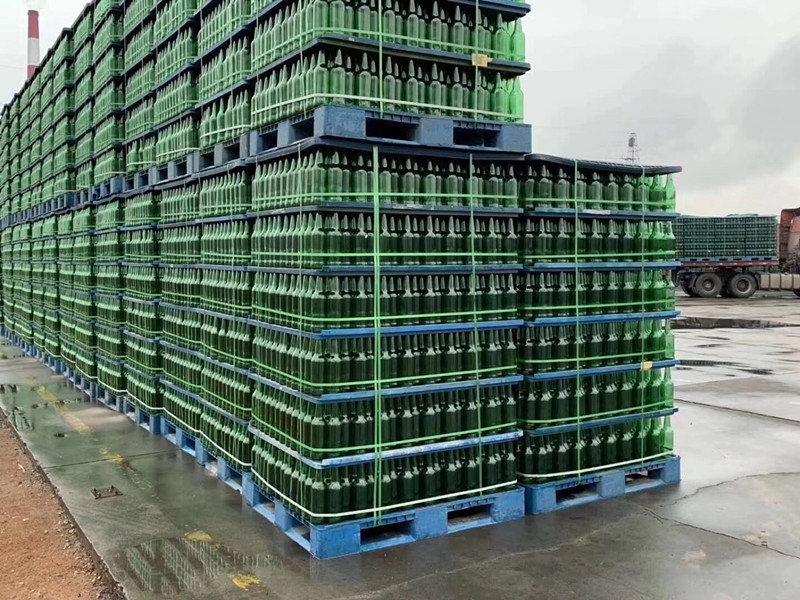

Application for plastic steel strapping:
As a new type of strapping product with strong tensile force and corrosion resistance, PET strapping belt is gradually replacing traditional stainless steel strapping products with overwhelming advantages in performance and price. Therefore, the potential of PET strapping production line as a small and medium-sized investment is huge.It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.
Advantages for PET Making Machine:
-
Advantage of Wedo PP PET packing strip belt making machine
1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process 100% recycled PP/PET bottle flakes or pellets.
3.Plasticization and stable extrusion can with PLC automatic control for the full line.
4.According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5.Melt filter with two pistons with air venting design and back flushing.
6.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7.Workers: 2 -3 workers per shift, 12 hours/shift.
About the making machine FAQ:
1.Are you manufacturer or trading company?
We are manufacturer, so that we can quote a best price to you without any person adding extra fee between us.
2.China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
3.If we buy your machines, can you offer us wear-out spare parts?
We will provide some wear-out spare parts free of charge, it will send to you with the machine.
4.How am I suppose to trust you the machine I received matches your description?
Appearance of final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
