200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine

200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine
200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine
200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine 200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine 200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine 200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine

Large Image :  200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 30-35 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 10000sets
Contact Now

200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine

Description
Product Type: Pp Strapping Band Production Line Making Machine Extruder Screw Design: Single-screw,Double-screw,single Or Double
Processing Type: Extruding Machine Raw Material: PP
Application: Sheet,Strap,Pipe,packaging Band,Tape And Strap Automation: Automatic
Driven Type: Electric Voltage: 220V-240V
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas

200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine

PRODUCT DESCRIPTION

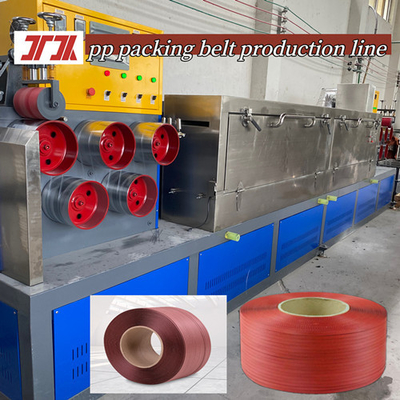

PP strap production line /PP strap manufacturing machine, PP strap making machine
PP strap with width from 5mm to 19mm can be manufactured by our PP strap manufacturing machine. we furnish PP strap production machines with 1, 2, 4 and 6 PP straps extruded.

1.PP strapping belt production line has a high degree of automation and high output.

2.PP strapping belt production line low power consumption, power saving.

3.PP strapping belt production quality is stable, the production of PP strapping belt straightness, width and thickness control uniform belt.

4.PP binding belt production line adopts PLC control system, metering and extrusion, the produced PP belt specifications are consistent, and the error range is small.

Machine size (L*W*H) mm 3600*1200*4000
Product arrange mode PP One out four
Extrusion Capacit(kg/h) 330-330 KG/H
Speed (m/min) 250-300m/min
Number of Straps 6
PLC control system PLC
Outgoing band width(mm) 5-19
Band Thickness(mm) 0.4-1.2
Capacity per day 8 T

200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine 0


FEATURES

1. special designed and high output

2. energy saving

3. this series machine can produce sandwiched strap

4. specialized formulation, and cost saving

5. specialized driving mode and low noise

6. Reinforced strapping band making machine is applied to produce manual bands or automatic bands

7. different formulation for customers

8. quality stability

9. lower labour cost

10. different screw designed with customers requirements






FAQ



1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm.
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw.

2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm.
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw.



200kg/H PP Strap Band Extrusion Line 3.6*1.2*4M PP Packing Belt Machine 1
