Packaging machinery 9-32mm high speed PET plastic steel belt production line PET extrusion machine with chemical fiber filter
Product Description of pet strap manufacturing machine:
♦The PET Strap Making Machine is an automatic brickyard and metal strapping equipment with a weight of 18000KG, designed to strap items together securely. It comes with a Schneider switchgear, and is capable of strapping items with a strap width of 9-32mm. This machine is not only suitable for steel, aluminum and brewery applications, but also provides safety features such as a SIMENS switchgear and an automatic stop, ensuring maximum reliability and protection. The PET Strap Making Machine comes with a 1 year warranty for added peace of mind.

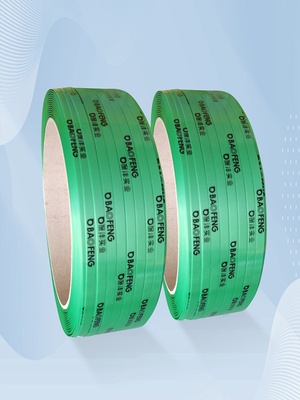

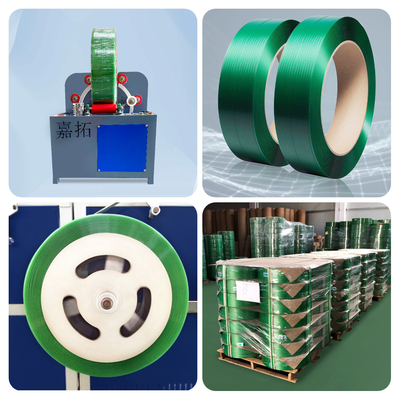

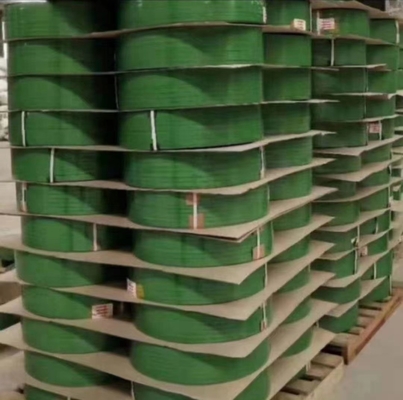

♦PET plastic steel strip is made of polyethylene terephthalate, abbreviated PET.
♦Non-toxic and tasteless, transparent and bright, high temperature resistance, recyclable, strong tension, in line with environmental requirements, especially suitable for pallet and heavy special packaging.
♦Widely used in mechanical and electrical, ceramics, paper products, building materials, tobacco, wood, cotton, chemical fiber and other industries, with portable baler and pallet automatic baler more efficient use.
♦Compared with the same model of PET plastic steel belt and iron belt, the strength is equal, the density is not equal, and the density ratio is 1:6(PET density 1.3, steel density 7:8).
♦That is, the length of 1 ton of plastic steel belt is equivalent to the length of 6 tons of iron belt, which can save a lot of packaging costs for customers.
♦Good safety, no steel belt rust pollution of bundled objects, bright color can be seen.

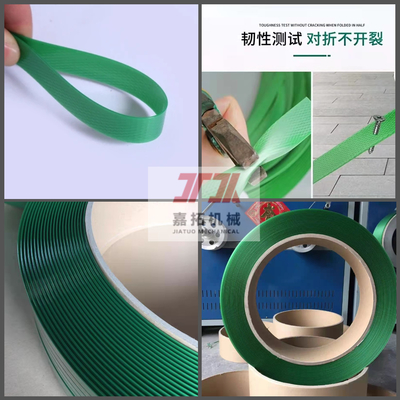

♦Strong tensile force, both the tensile force of steel strip, and the ductility of impact resistance, to ensure the safety of the product transportation.
♦The elongation is small, and the elongation is only one-sixth of the polypropylene strip, which can maintain the tension for a long time.
♦Strong temperature resistance, melting point is 260 degrees, 120 degrees below the use of deformation.
Features :
1. Adopt special PET extruder dedicated screw, extrusion energy can be customized according to customer requirements.
2. Can use 100% recycled PET bottle flakes or broken material pellets for production.
3. The main machine extrudes evenly, the die head flow channel extrudes stably, and the whole line is automatically controlled by PLC.
4. According to different requirements, the coating material is replaced to make the strap have better stretching ability.
5. Equipped with melt filter, ventilation design and backwashing function.
6. Number of straps: 1-8 straps, support customization.
EXTRUSION PARAMETERS TABLE
| Name | PET packing strap making machine |
| Applicable raw materials | 100% bottle flakes or crushed materials |
| Number of screws | Single Screw |
| Screw model | 150 |
| Number of extruded belts | 6 |
| Width range | 9-32mm |
| Thickness range | 0.4-1.2mm |
| Production capacity | 600-650kg/h |
| Metering Pumps | 150CC |
Why do we need to add PET toughening agent to PET plastic steel belt? What is the role of toughening agent?
THE MAIN FOLE OF PET TOUGHENING AGENT:
Improve impact resistance------By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reducing processing temperature, reducing energy consumption, and improving fluidity to make processing smoother.
Enhance flexibility-------Make PET material softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
