5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H

5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H
5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H
5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H

Large Image :  5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: IS CEO
Model Number: JTPP-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days

5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H

Description
Electrical Appliances: Schneider Inverter: INVT
Gearbox : GUOMAO 30 Years Old Brand: YES
Material: PP Polypropylene New Material/recycled Material Speed: 260-300m/min
Motor: Siemens Equipment Layout Diagram: Customized
Total Power: 100KW(Power For Operation:50-55KW) Screw: ¢110*3300 Mm
Reducer Specification: 250#

5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H

Product Description of pp strapping band making machine:

►TPP packaging belt extruder is an advanced, efficient bundling equipment, environmental protection, durable.
Using IPLC control system, the width and thickness of PP packing belt can be controlled within the international standard range. The PP packing belt is beautiful and can withstand cold and high temperature conditions.
►PP packing belt extruder is equipped with advanced technology and efficient standard accessories, which can effectively improve production efficiency and reduce production costs.
►PP packaging belt production line can produce width: 5-19mm, thickness: 0.3-1.2mm, PP packaging belt is suitable for the production of a variety of different products.

5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 0


Features of pp strapping band making machine:

  • PP Strap Band Extrusion Line
  • Polypropylene Band Production Line
  • PLC Touch Screen Control System
  • Production Capacity: 200-300kg/h
  • Screw: 110*3300mm
  • Strap Width: 5-19mm

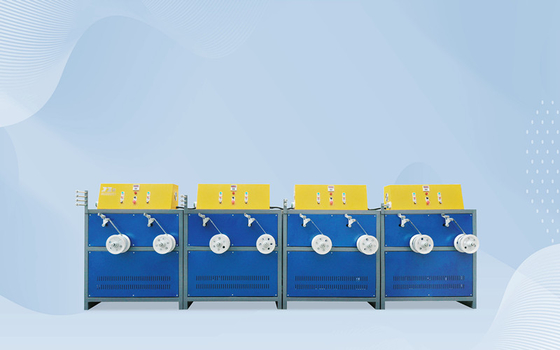

  • Automatic winder
  • PP polypropylene extrusion equipment
  • Packaging tape manufacturing equipment
  • Strong and durable
  • Advanced technology
  • Service guaranteed
  • Beautiful and generous



Technical Parameters of pp strapping band making machine:



Parameter Value
Name PP Environment-friendly strapping equipment
Environment-friendly strapping equipment YES

Screw

Ø110*3300mm

Host inverter

37KW (INVT)

Main motor

37KW(Siemens)

Screen changer

Replace the filter without cutting off the machine power supply

Winding method

manual/automatic

Number of tapes

4
Total Power 100KW
Gearbox GUOMAO
Cold and high temperature resistance YES
Beautiful and generous YES
Neat winding YES
Overall dimensions L36*W2.0*H4.0M

Screw Material

38CrMoALA

The equipment voltage Three-phase 380v /50Hz ( Customized )
Video outgoing-inspection YES

Capacity /24H

5-6T


5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 1

Applications of pp strapping band making machine:


The PP Strap Band Extrusion Line from JIATUO CHINA with model number JTPP-110 is certified by IS CEO and comes with a minimum order quantity of 1 SET. The price is Negotiable and the product is packed in plastic film. Delivery can be expected within 30-40days. This product is designed for maximum beauty and generosity and comes with a production capacity of 200-300kg/h and total power of 100KW. It can provide neat winding. The product is highly reliable and has earned a good reputation in the industry.




Support and Services of pp strapping band making machine:



  • Troubleshooting and technical support
  • On-site installation and commissioning
  • On-site training and instruction
  • Preventative maintenance and system optimization
  • Repair and replacement of parts


5-19mm Strap Width Polypropylene Strapping Band Extrusion Line - Automatic winder 6000KGS/24H 2


Packing and Shipping of pp strapping band making machine:

The PP Strap Band Extrusion Line will be packaged and shipped in a sturdy wooden box with foam lining to ensure both safety and convenience during the delivery process. The product is also wrapped with plastic film to ensure it is free from dust and other environmental contaminants during the shipping process.
