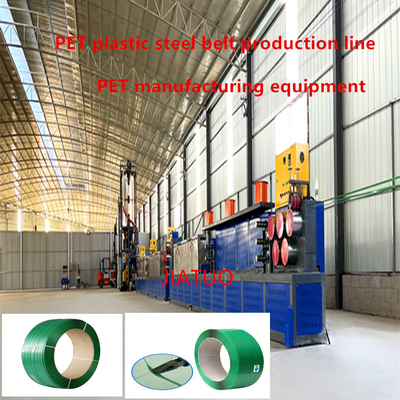

Customized extruder PET plastic steel belt production line PET belt making machine PET strapping line fot 100-600KG/H extrusion output

Customized extruder PET plastic steel belt production line PET belt making machine PET strapping line fot 100-600KG/H extrusion output

Product Description of PET strap manufacturing machine:

Features :

1. Good tensile strength----PET strapping tape production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping tape is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping tape is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping tape is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.

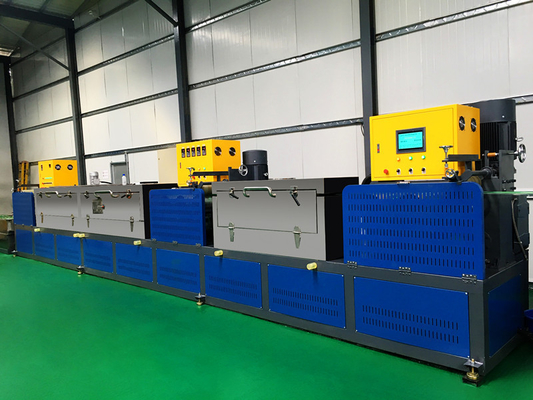

PET plastic steel belt production line extrusion process:

Horizontal feeder -------mix different PET crushed materials or bottle flakes evenly.

Drying barrel -------- heat the PET raw materials to dry the moisture.

Dehumidifier--------remove the moisture in the PET raw materials.

Extrusion molding-------make the molten PET belt blank pass through the mold to form.

Cooling water tank-------cool the extruded PET belt blank to ensure its molding.

Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.

Stretcher--------stretch the formed PET belt instantly, about 1-10 times

Oven--------heat the strapping belt to improve the toughness of the PET belt.

Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.

Forming oven--------heat and shape again to make the PET belt more standardized.

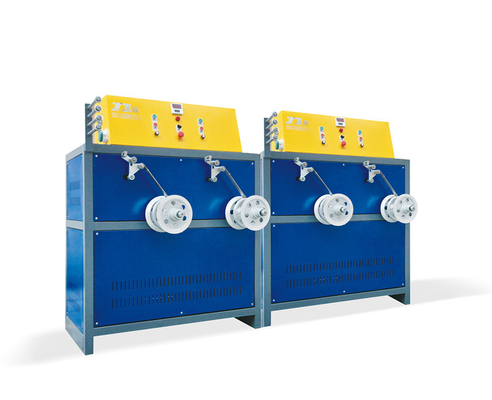

Rewinder---------roll the strapping belt into a roll for easy storage and transportation.

                                      EXTRUSION PARAMETERS TABLE

Why do we need to add PET toughening agent to PET plastic steel belt? What is the role of toughening agent?

THE MAIN FOLE OF PET TOUGHENING AGENT:

Improve impact resistance------By increasing the toughness of PET, it reduces its brittle fracture when impacted.

Improve processing performance------Reducing processing temperature, reducing energy consumption, and improving fluidity to make processing smoother.

Enhance flexibility-------Make PET material softer and suitable for application scenarios that require flexibility.

Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.

About us:

Shenzhen JIATUO Plastic Machinery Co., Ltd. is a professional manufacturer of PP/PET packaging tape production lines with high quality and excellent technology.

We have nearly 30 years of experience in contacting PP/PET strapping equipment. Our company has sent after-sales teams and technicians many times to learn advanced technologies in the plastic machinery industry in Germany, Japan, South Korea and other parts of the world. Even some advanced technologies have surpassed Germany, Japan and other countries. The PP tape equipment currently produced by the company can extrude 12 tapes at the same time, with: high output, low energy consumption, power saving, labor saving, simple operation, etc.;

At the same time, we also produce PP tapes and PET plastic steel tapes ourselves. We have 4 factories,

Including:

PP PET strapping equipment factory: 1 PCS

PP strapping factory: 1 PCS

PET plastic steel tape factory: 1PCS

So: We are well aware of the production process of PP tapes and PET tapes, the operating procedures, process details, raw material formula ratios, etc.

We have professional knowledge of PP plastics and PET plastics, and look forward to more detailed exchanges with customers.

 Services :

We provide technical support and services for our PET Strap Making Machine to ensure that it runs smoothly and efficiently. Our team of experienced technicians are available to answer any questions you may have about the machine and provide you with the best solutions. Our services include:

• Inspection and repair of machine parts
• Troubleshooting and diagnosis of machine issues
• Installation and setup of the machine
• Advice on the best practices for machine maintenance
• On-site training for machine operators

We are committed to providing you with the best quality service and support for our PET Strap Making Machine. If you have any questions or concerns, please do not hesitate to contact us.

Packing and Shipping of PET strap manufacturing machine:

The PET Strap Making Machine is packed in a wooden box with foam lining to ensure maximum protection during transport. The wooden box is then placed in a standard shipping container. If the order is large, multiple machines can be shipped in one container.
The shipping method for the PET Strap Making Machine is determined by the customer. The most popular options are air, sea, and rail freight. Air freight is the fastest option, but also the most expensive. Sea freight is the slowest option, but also the most cost-effective. Rail freight is a good option for customers who are located close to the port.

FAQ:

Q: What is the brand name of the PET Strap Making Machine?

A: The brand name of the PET Strap Making Machine is JIATUO CHINA.

Q: What is the model number of the PET Strap Making Machine?

A: The model number of the PET Strap Making Machine is JTPET.

Q: Where is the PET Strap Making Machine made?

A: The PET Strap Making Machine is made in China.

Q: Does the PET Strap Making Machine have certification?

A: Yes, the PET Strap Making Machine has IS CEO certification.

Q: What is the minimum order quantity for the PET Strap Making Machine?

A: The minimum order quantity for the PET Strap Making Machine is 1 SET.
