9-32mm single screw PET plastic steel strapping equipment PET strapping production line PET packaging strap with automatic winding machine

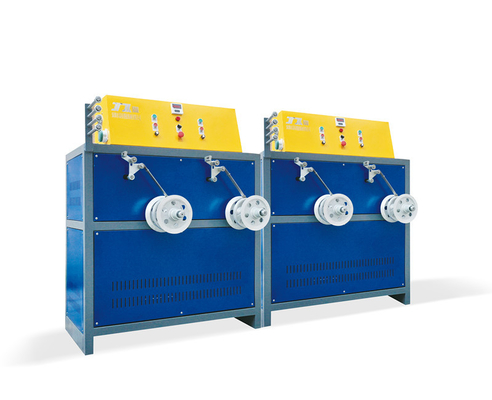

Product Description of PET Strap Making Machine:
PET plastic steel belt production line features:
Extrusion process-----PET belt making machine uses a special screw for extruder, which is evenly extruded by heating and melting.
Cooling and solidification----The extruded PET belt embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.
Stretching and orientation----PET belt making machines usually include stretching and orientation parts to improve the tensile strength, flexibility and overall performance of the PET belt. This process aligns the molecules in the PET material to enhance its mechanical properties.
Basic parameters of PET steel plastic belt equipment:
Production capacity: 100-600 kg/h
Belt width: 9-32 mm.
Belt thickness: 0.4-1.2 mm.
Equipment power: depending on the model, the power is between 100-400KW.
Different extruder models and production capacities can be customized according to customer requirements.
Technical Parameters of PET Strap Making Machine:
| Parameters |
Details |
| Product Name |
PET Strap Making Machine |
| Production Capacity |
300-600kg/h |
| Voltage |
380V 50HZ 3Phase (Customized) 220V 60HZ |
| Strap Tension |
150-850kg |
| Strap Speed |
100-150m/min |
| Strap Core Material |
Paper/Plastic/Aluminum |
|
Numbers of straps
|
3straps
|
|
Screw feeder
|
3 sets
|
|
Dryer capacity
|
3000L |
|
honeycomb rotary dehumidification dryer
|
0ST-1000
|
|
pre drying tower
|
4000L |
|
main machine bucke
|
4000L |
|
Gearbox model
|
250 |
|
screw
|
100*2900mm
|
|
host frequency converter
|
45KW(INVT) |
|
motor power
|
45KW Siemens motor
|
About us:
We have nearly 30 years of production experience in the production of PP PET strapping equipment. We have our own production workshop, processing center, high-precision imported lathes, sales team, after-sales team, management team, etc.; including we currently also produce PP strapping, PET plastic steel strapping, etc., so we are very clear about the process details, the formula ratio of raw materials, and the addition ratio of various auxiliary materials;
We are the agent for the sale of various automatic strapping machines, semi-automatic strapping machines, handheld strapping machines, pneumatic strapping machines, etc., so we are clear about the requirements of different strapping machines for strapping;
We currently have 3 factories:
PP PET strapping equipment factory: 1PCS
PET plastic steel strapping factory: 1PCS
PP strapping factory: 1PCS
Packing and Shipping of PET Strap Making Machine:
Packaging and Shipping for PET Strap Making Machine
The PET Strap Making Machine is packaged in a corrugated cardboard box with a foam cushion layer inside. The box is sealed with strong adhesive tape to ensure the machine is secure during delivery. The box is also labelled to identify the contents.
The machine is shipped via a reliable shipping carrier. All shipped items are insured against loss or damage during transit.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
