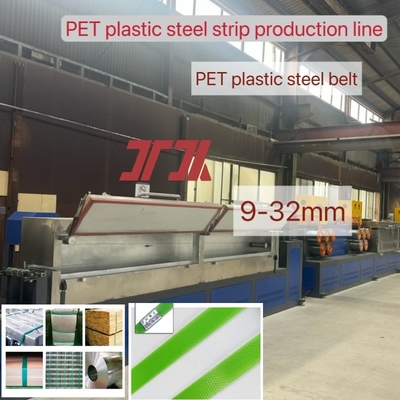

Extrusion equipment High-speed PET plastic belt production line PET strapping equipment PET belt making machine with PLC control system

Extrusion equipment High-speed PET plastic belt production line PET strapping equipment PET belt making machine with
PLC control system

Product Description of PET plastic belt production line:

1.The extruder uses a special PET screw with unique parameter design. The screw has a unique separation and mixing effe ect to ensure the uniform plasticization of the raw materials. It has the advantages of large extrusion, good plasticization,high hardness, high wear resistance, etc.

2.The three-dimensional folding super !arge area filter device, the unfolded area of the filter screen is 30 times larger than tl the area of the traditional flat filter screen; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.

3.The rotating honeycomb dehumidification drying system is used to dry the raw materials.

4.The dew point of -50°C ensures that the moisture content of the raw materials is ≤50PPM, and has the effect of solid-pha ase polycondensation and viscosity increase.

stable, and the width and thickness fluctuations are much smaller than national standards;

5.The equipment adopts a unique double-stretching process, which has good rigidity and stable width, which improves the t tensile strength of the finished product.

6.High-precision components make the product quality Unique oven circulating heating system, internal reciprocating winding method, making full use of heat energy to

greatly r reduce power loss.

7.ToThe unique circulating cooling system and multiple sets of shaping guide rollers make the packing belt cooler and shrinl nk more fully, the product is more stable, and the size is more accurate.

8.ToThe five-roller traction system has stable traction, makes the equipment run smoothly, reduces the failure rate, and red duces the post-maintenance cost by 60%.

9.ToThe high-precision special embossing and pressing device, the pressure is adjustable, the embossing wheel can be sy ynchronized up and down, the embossing is clear and beautiful, and the product quality is comparable to that of Europe, America, Japan and South Korea.Constant force rewinding system, unique design paramet ters, in line with high output, excellent reeling effect, flat and beautiful sides on both sides.

10.The rewinding machine adopts double-station rewinding device, which is easy to operate and easy to change the reel.

11.It can be produced entirely with 100% bottle flakes, and the quality of the finished product can be compared with brand ne ew materials.

Features of PET plastic belt production line:

• Product Name: PET Strap Making Machine
• Voltage: 380V 50HZ 3Phase(Customized)/440/220V
• Trademark: Jiatuo
• Strap Color: White/Black/Blue/Green Etc.
• Strap Core Material: Paper/Plastic/Aluminum
• Production Capacity: 300-400kg/h
• Equipment footprint: 60*2.0*7.0M
• The fuselage frame adopts :100*100*4.0 mm (pass national standard square)
• Paper core specification: ￠ 406*150mm
• Dimension of thread return shaft: ￠ 32*150mm (imported from Taiwan)
• Automatic: Yes
• PET STRAP: Yes
• 100% recycled bottle flakes material: Yes

Technical Parameters of PET plastic belt production line:

Applications of PET plastic belt production line:

The JIATUO CHINA PET Strap Making Machine, with model number JTPET, is designed to produce plastic straps of various widths, from 9-32mm, for a variety of industries. Certified by IS CEO, the machine is available in minimum orders of 1 SET. Customers can expect a competitive price and their goods to be packaged in plastic film. Delivery time is usually within 30-40 days after order confirmation.

The PET strap making machine is powered by a SIEMENS brand motor and an INVT brand inverter, allowing for a strap speed of up to 250m/min. Its PLC control system is equipped with memory parameter and speed control functions.

The PET strap making machine is well-suited for use in brickyards, metal, steel, aluminum and brewery industries. It offers an efficient and reliable way for customers in these industries to produce plastic straps with precision.

• PET packaging belt production line
• High Efficiency PET packing belt production equipment with Automatic Control
• PET plastic steel belt production equipment
• PET packing equipment
• Production equipment of bottle packaging tape
• Pack and tape equipment

 Services :

Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET plastic steel belt equipment.

2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.

3. Analysis of raw materials used in PET plastic steel belt equipment.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.

2. Installation, commissioning and training of PET plastic steel belt equipment.

3. Maintenance service of PET plastic steel belt equipment.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

FAQ:

Q: What is the brand name of the PET Strap Making Machine?

A: The brand name of the PET Strap Making Machine is JIATUO CHINA.

Q: What is the model number of the PET Strap Making Machine?

A: The model number of the PET Strap Making Machine is JTPET.

Q: Where is the PET Strap Making Machine made?

A: The PET Strap Making Machine is made in China.

Q: What certification does the PET Strap Making Machine have?

A: The PET Strap Making Machine has an IS CEO certification.

Q: What is the minimum order quantity for the PET Strap Making Machine?

A: The minimum order quantity for the PET Strap Making Machine is 1 SET.
