Description

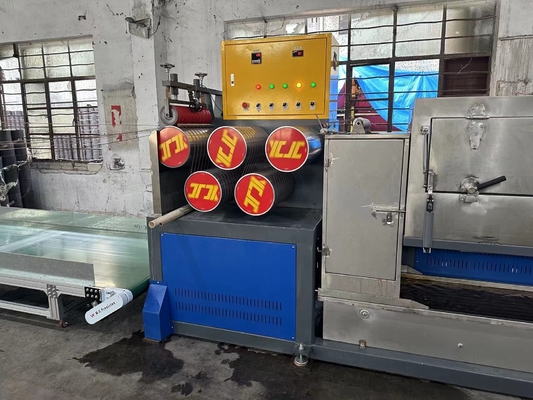

PP strapping band extrusion machine production line
PP sandwish packing tape production line
PP packing tape, the name of polypropylene, is a lighter type of common plastic. The main material of PP packing tape is polypropylene drawing grade resin, which can use 100% recycled material. Because of its good plasticity, strong tensile strength, resistance to bending, light weight, easy to use, etc., the bundled belt has been widely used in various fields
The tape produced by the strapping production line can meet the needs of industries such as tile factory, carton,
cloth, toy outer box packaging, paper industry, clothing, food, fruit, electrical appliances (such as refrigerators,washingmachines).
Machine parameters
| Motor power |
37kw |
| Screw diameter |
110mm |
| Production line size |
L (36m) ×W (2m) ×H (4m)
|
| Band width range |
5-19mm |
| Product thickness |
0.4-1.2mm |
| Line speed |
250m/min |
| Extrusion ability |
230-250kgs/H |
Characteristics
The screw and the cylinder of JT-PP type automatic or manual PP plastic strapping band making machine adopt excellent quality alloy steel done nitrogen treatment, which leads to long using life, good abrasion resistant and high output of extruding. This machine has advantages of auto temperature control, economical power consumption, high output and easy operation. It use PE powder, which is mainly Ι&ΙΙ grade recycing material, as it is main material. It does not need to fry or mix the raw material, but use it directly, during the process of producting the granules; it uses mineral powder instead of expensive master batch to produce auto strapping band, which improves the quality of the products and reduce the production cost. The machine has printing device.
Double lines, four lins, six lines, eight lines.
Features
PP strap band production machine
- This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
- Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
- PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
- PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
- Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
- Low Energy consumption, but high production capability;
- Easy to operate, save the manpower and two persons for one production line on average
Application
PP packing straps making machine
Materials: PP material, or 100% recycling pp flakes and granules.
This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.Based on the reinforced strapping band unit, is specially used for the top-grade light weight products with good quality, light gram weight and well rigidity. Its high-speed low-temperature stretching technology and optimized structure may reduce energy consumption to the maximum extent, simplify operating procedure and realize digital displayed accurate control. The unit has advantages of energy saving, great extrusion pressure, optimal embossing effect, high output, good formation, convenient maintenance, simple operation, safety and reliability. The single-band unit is an ideal device that is used to manufacture top-grade light weight strapping band. This unit is applicable to PP fresh material and used for producing light weight strapping band.

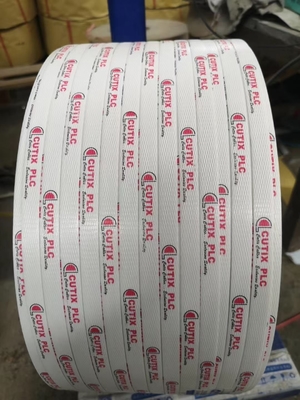

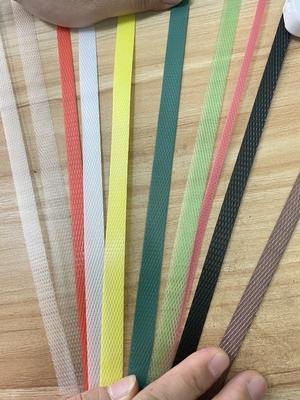

Final product picture
PP straps extrusion machine
