Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment

Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment
Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment
Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment

Large Image :  Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-90
Document: parameter details of PP Str...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month

Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design: Optional Twin Screw Type: Co-rotating Parallel Twin-screw
Driven Type: Electric Processing Type: Extruding Machine
Automation: Automatic Application: Packaging Strap
Warranty: 1 Year Width: 5-19mm

Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment



QUICK DETAILS OF PP STRAP MAKING MACHINE



Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200-300kg/h

Installation size: L38*W2.0*H4.0(m)


CONFIGURATION OF PP STRAPPING PRODUCTION LINE

NO. Name QTY
1 Color Mixer 1 set
2

Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine)

customer choose one of it.

1 set
3 Hopper dryer 1 set
4 SJ single screw extruder 1 set
5 High speed Screen exchanger device 1 set
6 Molud 1 set
7 Water cooling tank 1 set

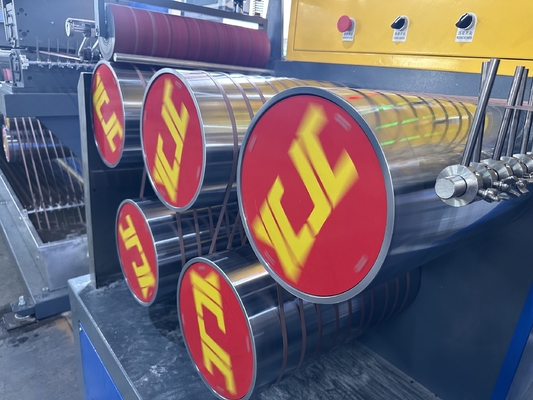

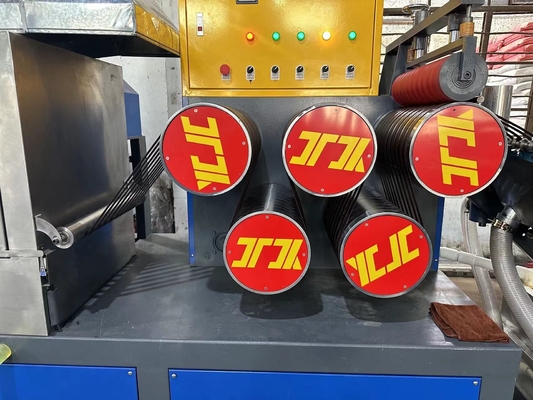

8 The first traction machine- 5 rollers 1 set
9 The first Stretch forming oven 1 set
10 The Second traction machine- 5 rollers 1 set
11 The second Stretch forming oven 1 set
12 The Third traction machine- 3 rollers 1 set
13 Embossing machine 1 set
14 The Winder machine 1 set

Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment 0

APPLICATION & FEATURES OF PP STRAP EXTRUSION LINE



Features of the oven:

1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.

2. High-temperature resistant silicone seals keep the oven super tight

3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable

4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.


Single screw polypropylene strapping tape making machine PP strapping tape production line PP plastic strapping equipment 1

FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE



FQA:

Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
