Plastic Machinery Single Screw 4straps Plastic Strap Packing Machine PET Strap Extrusion Line
Quick Detail Of PET Strapping Making Machine
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
Raw materials---- 100% bottle flakes or crushed materials or thickening granular materials
Screw----The extruder of the PET plastic steel belt production line adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
Filter----Three-dimensional foldable large-area filter device, the unfolded area of the filter is 30 times larger than the traditional flat filter area; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |

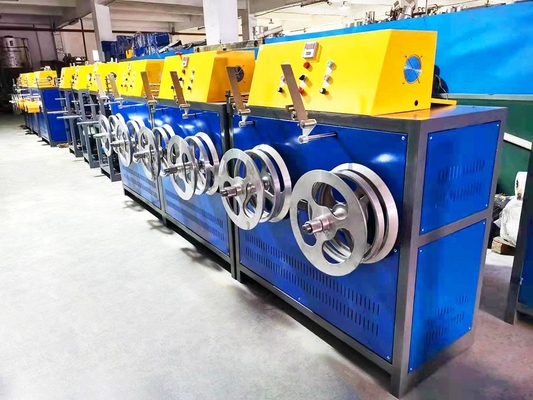

| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Advantages of PET strapping extrusion production line

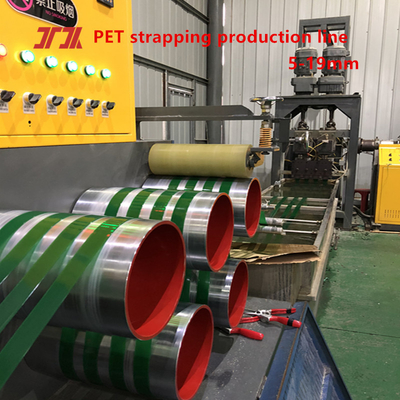

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →
⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →
⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →
⑫ Cooling →⑬ Finished product winding

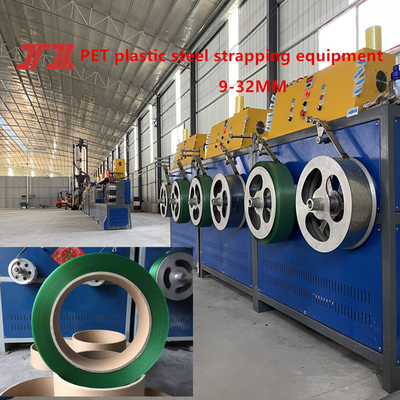

Features of PET packing strap production line
Advantages of PET plastic steel belt equipment:
Economical and efficient------With long service life, low maintenance requirements and high degree of automation,
it is an economical and efficient equipment for the use of packaging materials.
Efficient-----High strength and durability ensure efficient material handling, sustainable production and reduced downtime.
Safe----- The solid structure ensures safe and reliable operation and minimizes the risk of belt failure.
Energy saving------- Energy saving and environmental protection, high output and low power consumption.
FAQ
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
