High Production Energy Saving PET Strapping Packing Band Production Line
PRODUCT DESCRIPTION
PET strap production line adopt advanced technology, optimized equipment performance, it has easy operation and long service life. 100% recycling material from the PET bottle flakes.This production line is mainly used for the production of PET strap, packaged with good flatness, production speed advantages.
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Features of PET packing strap production line:
This production line uses PET waste mineral water, Sprite, Coke and other bottle flakes as raw materials to produce packing belts, with low cost and high efficiency.
The computer control system is used for real-time control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure product quality. Equipment composition: Special equipment Three stretching machines, ovens, molds, traction machines, control boxes, winders, etc. General equipment Feeder, extruder, mold temperature machine, chiller, dryer, air compressor, etc.
Features: ·PET belt, also known as plastic-steel belt, is a new type of strapping belt that is popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.
·Strong tensile strength: It has both the tensile strength like a steel belt and the ductility that can resist impact, which can ensure the safety of your product transportation.
·Small elongation: The elongation is only one-sixth of that of polypropylene (PP) tape, which can maintain tension for a long time.
· Strong temperature resistance: the melting point is 260 degrees, and it will not deform when used below 120 degrees. ·Good flexibility: no sharp edges of steel belts, safe operation, neither hurting hands nor damaging the bundled objects.
·Beautiful appearance and no rust: There is no risk of rusting the steel belt to contaminate the bundled objects, and the color is bright and can be seen.
·Good economic benefits: The length of 1 ton of plastic steel belt is equivalent to 6 tons of steel belt, and the unit price per meter is lower than that of steel belt, which can reduce the cost for you.
TECHNICAL SPECIFICATION ABOUT PET STRAP MAKING MACHINE

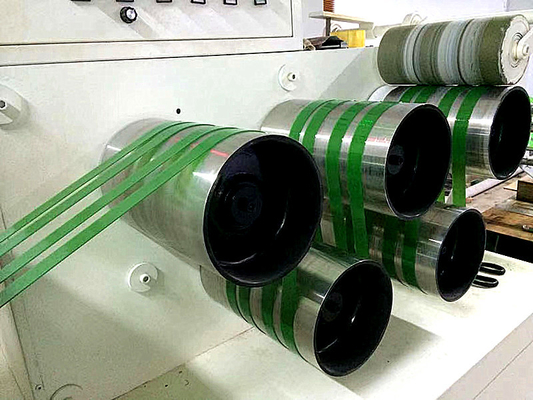

- For the PET strap packing into a roll. The center automatically arranged winding. Consists of: closing reel, core, transmission unit, winding displacement unit, rack, electrical control parts, etc.
- Automatic computer control winding disk diameter and length of the winding.
- Winding parameters, cable parameters can be set according to the product specifications by computer.
- Servo motors are used to control the width and spacing of winding displacement.
- Straps entrance with protection device.
- Torque arm directly separately checks the location and pneumatic plug to maintain the tension of straps.
