PLC Control 200kg/H Plastic PET Strap Making Machine 200KW High Speed Production Line

Plastic PET Strap Extrusion Line / Plastic Manufacturing Machine For PET Package Belt​

PRODUCT DESCRIPTION

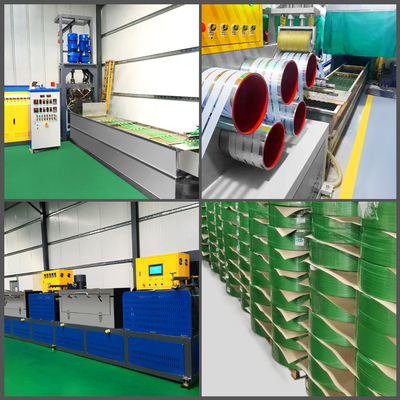

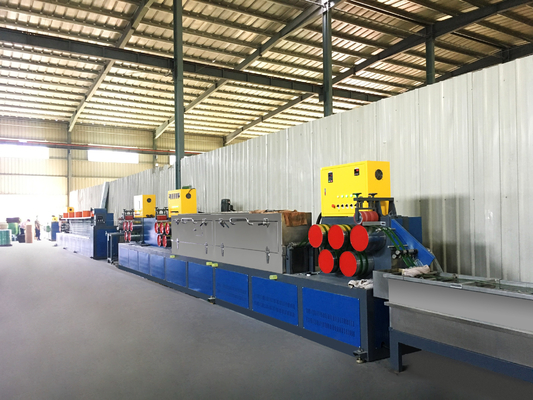

PET Strap Production Line Machine List

Features of PET packing strap production line:

Features: This production line uses PET waste mineral water, Sprite, Coke and other bottle flakes as raw materials to produce packing belts, with low cost and high efficiency.
The computer control system is used for real-time control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure product quality. Equipment composition: Special equipment Three stretching machines, ovens, molds, traction machines, control boxes, winders, etc. General equipment Feeder, extruder, mold temperature machine, chiller, dryer, air compressor, etc.

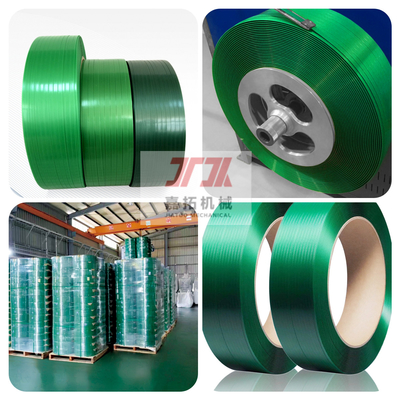

Features: ·PET belt, also known as plastic-steel belt, is a new type of strapping belt that is popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.
·Strong tensile strength: It has both the tensile strength like a steel belt and the ductility that can resist impact, which can ensure the safety of your product transportation.
·Small elongation: The elongation is only one-sixth of that of polypropylene (PP) tape, which can maintain tension for a long time.
· Strong temperature resistance: the melting point is 260 degrees, and it will not deform when used below 120 degrees. ·Good flexibility: no sharp edges of steel belts, safe operation, neither hurting hands nor damaging the bundled objects.
·Beautiful appearance and no rust: There is no risk of rusting the steel belt to contaminate the bundled objects, and the color is bright and can be seen.
·Good economic benefits: The length of 1 ton of plastic steel belt is equivalent to 6 tons of steel belt, and the unit price per meter is lower than that of steel belt, which can reduce the cost for you.

PET and PP strap making machine introduction

• Pre crystallization drying unit

As PET is easy to absorb moisture in the air, it must be fully dried. At the same time, in order to prevent bonding during drying, crystallization equipment needs to be configured. PP strap not need it.

• Single Screw Extruder

Always PET two straps extrusion needs 90/30 single screw extruder.
PP two straps extrusion needs 75/30 single screw extruder.
Special design screw structurer could extrude PET PP materials smoothl,it does not create excessive shear molecular structure, and ensures the strength of the packing belt

• Filter, Melt Pumb, Exrusion Die Unit

It is controlled by PLC pressure closed loop control system. The pressure sensor will transmit signals, and PLC is used to control the speed of melt pump and extruder, so as to stabilize the extrusion of PET or PP materials

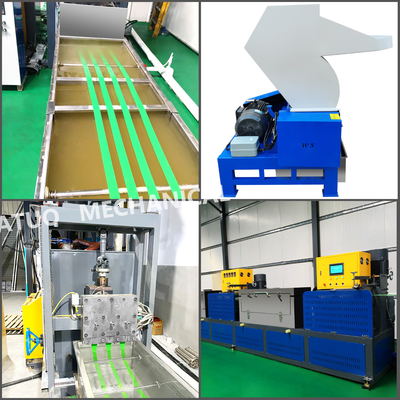

• Water tank with first haul off rollers

PET is Length 4000mm, PP 2000mm.
It is stainless steel materials.
The water is heated by water tank heating unit
The haul off rollers is five rollers, working to take PET or PP strap materials out of water tank

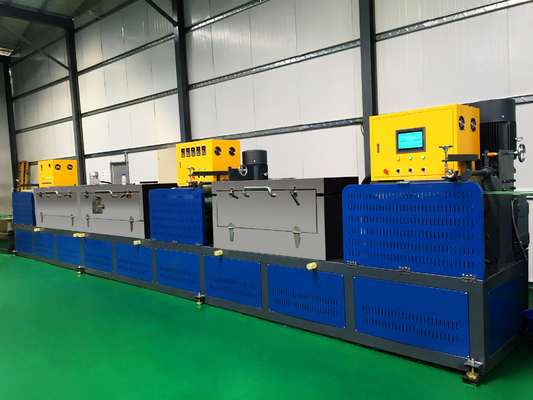

• The stretching oven

The oven is heated by electric power. Heating air is spread evenly by fans.
In the oven, the PET and PP strap will be stretched first time.

• Stretching rollers

This device is working for PET strap second time stretching.
PP strap not need stretching.

• Embossing Roller

This 38Crmoal materials, high surface hardness rollers do embossing

• Annealing oven and cooling tank

As PET and PP materials has high deformation prestress after stretching. It has to do annealing and water cooling to fix the size.

• Three rollers puller

It is working to take the materials out of annealing oven and cooling tank before winders

• Automatic Winder

The winder could be designed into servo motor unit, inverter motor unit and torque motor according PET or PP materials.

The unique back tooth shaft is used to make the packing belts neatly arranged without overlapping and no horn shape, so that the packing belts maintain a good straightness, which is more suitable for the use of automatic packing machines, and ensures that the automatic equipment conveyor belts are in place. Do not drop the belt.
