250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine

Certification
China SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD certification
China SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD certification
Customer Reviews
Well received the PET strap making machine today, it's easy for installation and operation.

—— Ahmed from Sudan

Since using JIATUO strapping line, our production efficiency has increased dramatically and the equipment is running very stably!

—— Avinash from India

Excellent cooperation with Jiatuo Machinery, and thanks for Zoey's fast service. I am going to buy another one PP making machine!!!

—— Mustafa Koçak from Turkey

High production capability and low energy consumption, which can help me to make lots of money!!

—— Kashan from Pakistan

This is the second PP machine I ordered, the output is very high, the energy consumption is low, which greatly saves my production cost, thank you very much for Arey's patient guidance and service!

—— Hasseb from Columbia

JIATUO's technical team is very professional, door to door installation of our machine, a few days is exactly stable operation, thank you very much!

—— Farzed from Turkey

I'm Online Chat Now

250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine

250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine
250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine
250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine

Large Image :  250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Thickness Range: 0.6-12mm PET Strap Width: 9-32mm
Capacity: 200~350kg/h Driven Type: Electric
Motor: Siemens Product Color: Green/Pink/yellow/black
Voltage: According To Customer's Factory Application: Packaged Material
After-sales Service Provided: Video Technical Support, Online Support Warranty: 1 Year
Highlight:

Recycled Material PET Strap Making Machine

,

50HZ PET Strap Making Machine

,

250 kg/H PET Strap Extrusion Line

High Speed PET Strap Production Line Recycled PET Extruder Strap Band Making Machine


PRODUCT DESCRIPTION

Descripition:

This machine is mainly used to make PET strap ,PP packing strap.

Our machines adopts the PLC control to realsize the whole line auotmatic production.

Using the melting pump and pressure sensor ensure the production stable and strap quality control.

The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.


PET Strap Production Line Machine List

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design

250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 0
Advantages of PET strap

  • Use 100% Recycled PET/PP Flakes to reduce the cost.
  • Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.

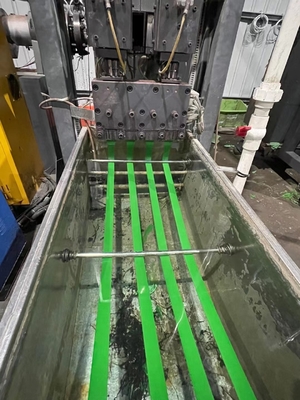

  • Special design hot forming tensile tank to make good forming ,equal width,straight strap.

Features of PET packing strap production line:

  • 1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.

  • 2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.

  • 3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.

  • 4. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.

  • 5. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.

  • 6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.

  • 7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging

250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 1


FAQ

(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.


(2).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.


(3).Q: How can I get the price, photos and video about the machine?
A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive QQ, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.


(4).Q: Why choose us?
A: 1.We are an exporter of professional wire drawing machine and rope machine factory
2. We have rich experience for chemical and plastic machinery more than 20 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.

250kg/H PET Strap Extrusion Line 380V 50HZ PET Strap Making Machine 2
