PET Plastic Packing Belt Double Output Making Machine
PET Packing Strap Production Line
Company Profile:
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.
Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine, automatic packing machine for all bags and automatic packing machine; High grade, high-strength and environment-friendly PP machine, PP packing belt, pet plastic steel belt and other packaging materials.
Machine Description
PET Strap Making Machine is using pet bottle flakes, to produce various specifications of pet strap.
Machine Products Description
Applications: widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics, textile and timber industries.

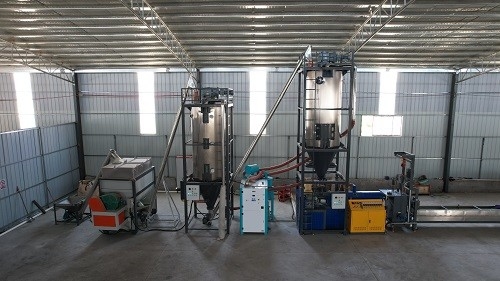

PET Packing Strap Production Line Details:
| No. |
Name |
Qty |
| 1 |
Dehumidifying and Crystallizing Unit |
1 set |
| 2 |
Oil and dust filter |
1 set |
| 3 |
Single Screw Extruder |
1 set |
| 4 |
Single Cylinder Filter |
1 set |
| 5 |
Melt Pump |
1 set |
| 6 |
Die Head |
1 set |
| 7 |
Cooling Water Tank |
1 set |
| 8 |
Stretching Oven |
1 set |
| 9 |
Five Roller Gearbox |
3 sets |
| 10 |
PLC Control System |
1 set |
| 11 |
First and Second Stretching Rollers |
1 set |
| 12 |
Shaping Oven |
1 set |
| 13 |
Five-roller Haul-off Device |
1 set |
| 14 |
Fourth Haul-off Rollers |
1 set |
| 15 |
Winder |
2 sets |
Parameters of PET 1 to 2 production machine:
| Item |
JTPET-90 |
| Screw design |
Single screw |
| Straps Qty. |
2 straps |
| Output/Day |
5.5-6T/24 hours |
| Screw Dia. |
90mm |
| Winder Qty. |
2 sets |
| Material used |
100% Recycled Bottle Flakes/Virgin Material/mixed with |
| Running power |
110-120kw |
| Installed power |
200kw |
| Strap specifications |
Width 9-32mm thickness 0.6-1.2mm |
| Workshop area |
L (55m) ×W (2m) ×H (7m) |
| Electric components |
Schneider |
| Materials |
PET raw material or 100% PET bottle flakes recycled |
Features of PET Strap Making Machine:
1.Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part.
2. Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps.
3.Precise dosing and raw material mixing.
4.Preheat and dry circulating automatically.
5.Even plasticization, stable extrusion and accurate temperature control.
6.Big hauling force stretching device and isolated heating oven.
7.Large capacity stainless steel water tank, automatic liquid level control.
Package and Delivery:
Turnkey Project Service:
Pre-sale service:
1 To provide all the machines for the complete testing according to customer's requirements.
2 To provide complete service for factory layout and other information to help customer to build the factory.
After-service:
1 To provide raw material to the customer if need.
2 Free installation and debugging and training until customers can run the machines and make stably production.
3 Provide all kinds of product formula, technology.
4 According to the customer's requirements, provide technical guidance.
5 Responsible for maintenance service, door to door service if necessary.
6 Except one year quality guarantee,we will provide after-sell service for all the life.
FAQ:
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 20 years, we also have our own PET straps production workshop.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely. We are Trade Assurance by Google, we can make business by Trade Assurance.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q:What about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
