Schneider Electric Components PET Strap Extrusion Line With Recycled Material
Schneider Electric Components Pet Strap Making Machine With Recycled Material 400-450kgs/H
Product Description
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
Heavy duty equipment can be used for four, six and eight straps production.
Technical Parameters of PET 1 to 4 production machine
| Item |
JTPET-125 |
| Screw design |
Single screw |
| Straps Qty. |
4 straps |
| Output/Day |
10-11T/24 hours |
| Screw Dia. |
125mm |
| Winder Qty. |
4 sets |
| Material used |
100% Recycled Bottle Flakes/Virgin Material/mixed with |
| Running power |
110-120kw |
| Installed power |
200kw |
| Strap specifications |
Width 9-32mm thickness 0.4-1.2mm |
| Workshop area |
L (55m) ×W (2m) ×H (7m) |
| Electric components |
Schneider |
| Materials |

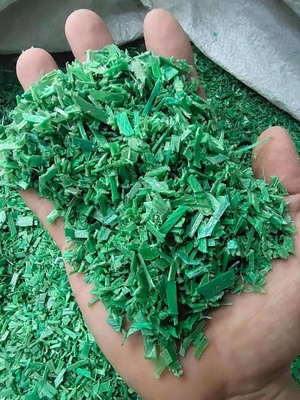

PET raw material or 100% PET bottle flakes recycled |

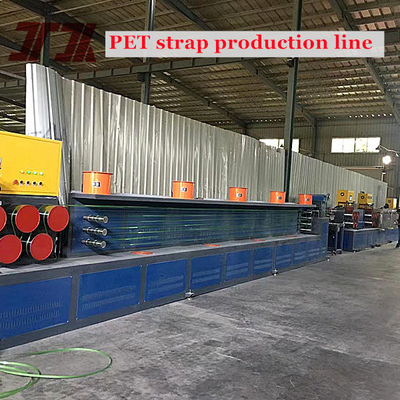

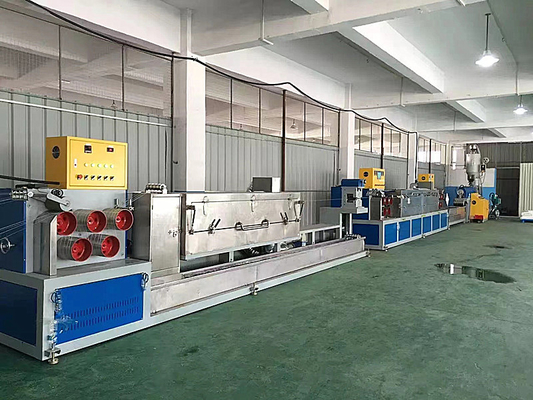

PET strap production line configuration reference
| Item |
Name |
Quantity |
| 1 |
Dehumidification and drying system |
1 set |
| 2 |
Oil and dust filter |
1 set |
| 3 |
Horizontal mixer(5000L) |
1 set |
| 4 |
Pre-drying tower(5000L) |
1 set |
| 5 |
Screw Feeder |
3 set |
| 6 |
Barrel(5000L) |
1 set |
| 7 |

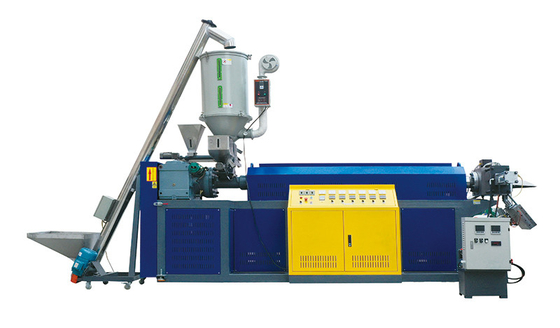

¢125mm Extruding Machine |
1 set |
| 8 |
Melt pump |
1 set |
| 9 |
Single cylinder filter |
1 set |
| 10 |
PET Mould output 4straps |
1 set |
| 11 |
Cooling water tank |
1 set |
| 12 |
Stretching oven |
1 set |
| 13 |
Five roller gearbox |
3 set |
| 14 |
PLC electrical control system |
1 set |
| 15 |
Forming oven |
1 set |
| 16 |

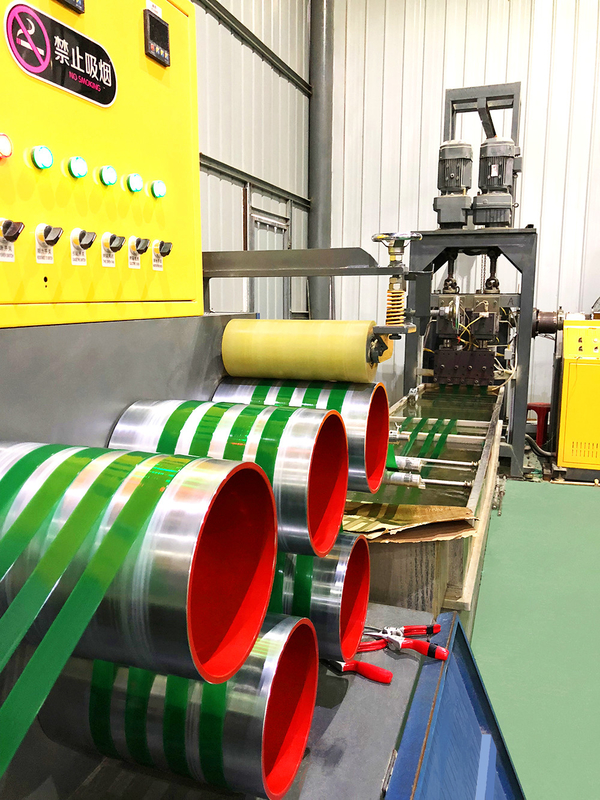

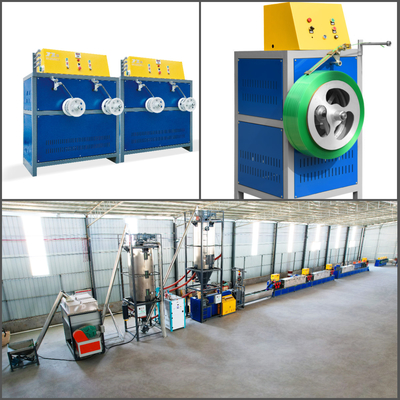

Double disk winder |
4 set |
Features of PET Strap Extruder Machine
- Raw material process and extrusion system.
- High performance crystallizing and drying system.
- Production can use 100% recycled material to obtain a high add value strapping band.
- Special designed hot air stretching oven.
- Configured with heating unit and automatic temperature control system.High performance heat insulating layer.
- Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

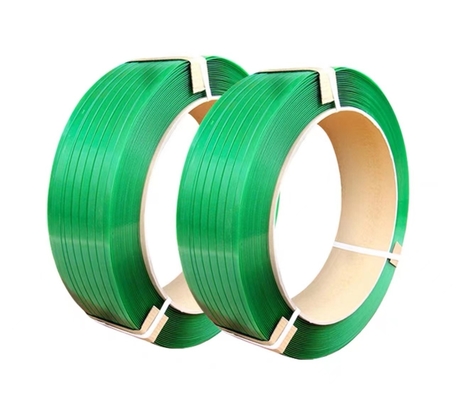

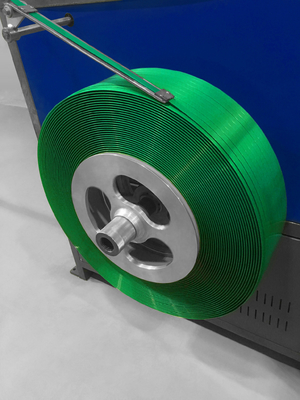

Application of PET strapping
Color: white, red, yellow, blue, black and other colors. Used for carton packing with automatic strapping machine.
FAQ
(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.
(2).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
(3).Q: How can I get the price, photos and video about the machine?
A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive Whatsapp, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.
(4).Q: Why choose us?
A: 1.We are a manufacturer, we can offer a best price for you guys.
2. We have rich experience for PP/PET production line more than 30 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.
