9mm-32mm Width PET Packing Belt / Strap Production Line Machine 350 kg / hr
PRODUCT DESCRIPTION
This PET strap production line adopts new technique and design, with high capacity and good quality. It strong as steel belt.
Used 100% recycled PET flakes, goes through the extrusion, stretching, embossing, cooling, winding etc.

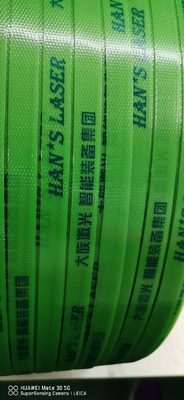

Final product is PET strap, with high tensile. One strap extrusion, two straps extrusion, four straps extrusionare availabe.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Features of PET packing strap production line:
1)Adopts advanced CSW-800 comby dehumidify dryer system. It make sure the material humidity≤80PPM at -50°C dew point. Meanwhile, it compact material and increase the viscidity.
2)Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.

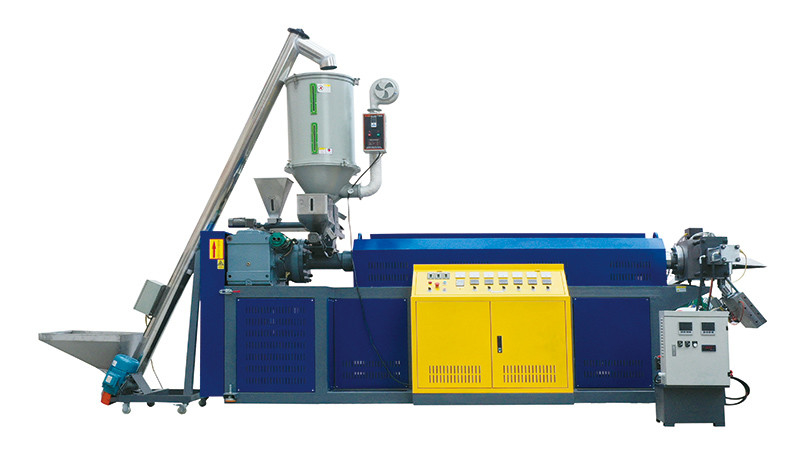

3)Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
4)Produce different model product at one die and mould. Adopts hydraulic screen exchanger without material leak.

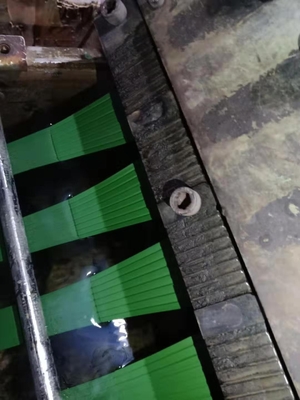

5)Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product’s stretch intensity
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:

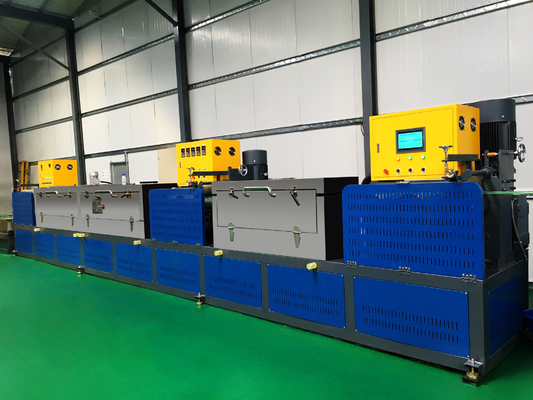

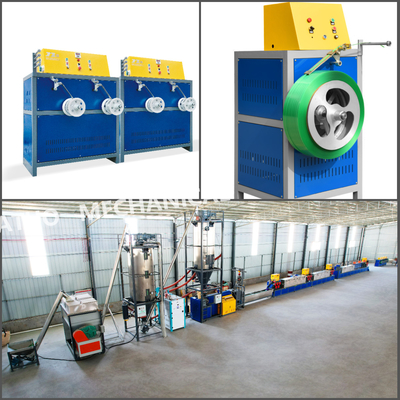

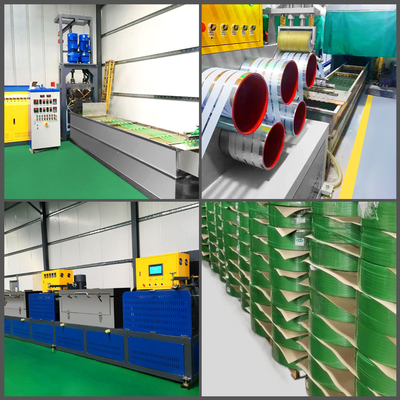

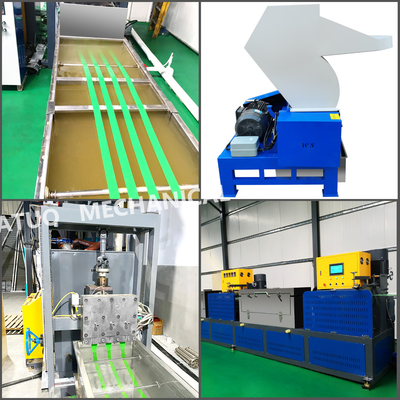

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery

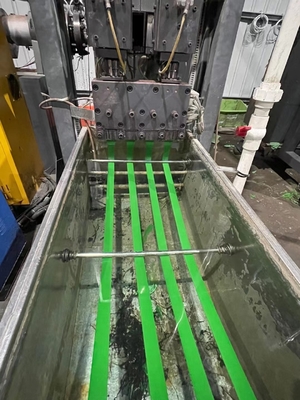

Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
