PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed

PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed
PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed
PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed

Large Image :  PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: IS CEO
Model Number: JTPET
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days

PET Strap Memory Parameter INVT Inverter 250m/min Strap Speed

Description
Product Name: PET Strap Making Machine Strap Material: PET
Origin: China Error Of Width: Within 0.2mm
Trademark: Jiatuo Strap Tension: 150-850kg
Inverter: INVT Control System: PLC Control

Automatic Plastic Strap Machine PET Package Strap Band Extrusion Line


PRODUCT DESCRIPTION

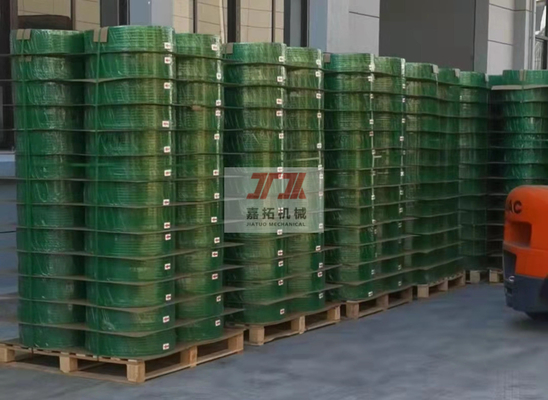

PET strap is made of polyethylene terephthalate as the main raw material, it is currently used as a substitute for steel belt in the world. It can packing paper box,brick,wood pallet,cloth, glass,plastic pipe,other plastic product etc.Wide using in the life

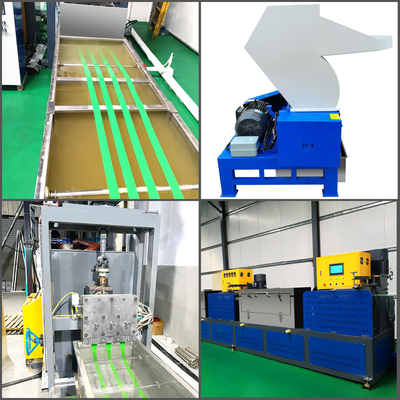

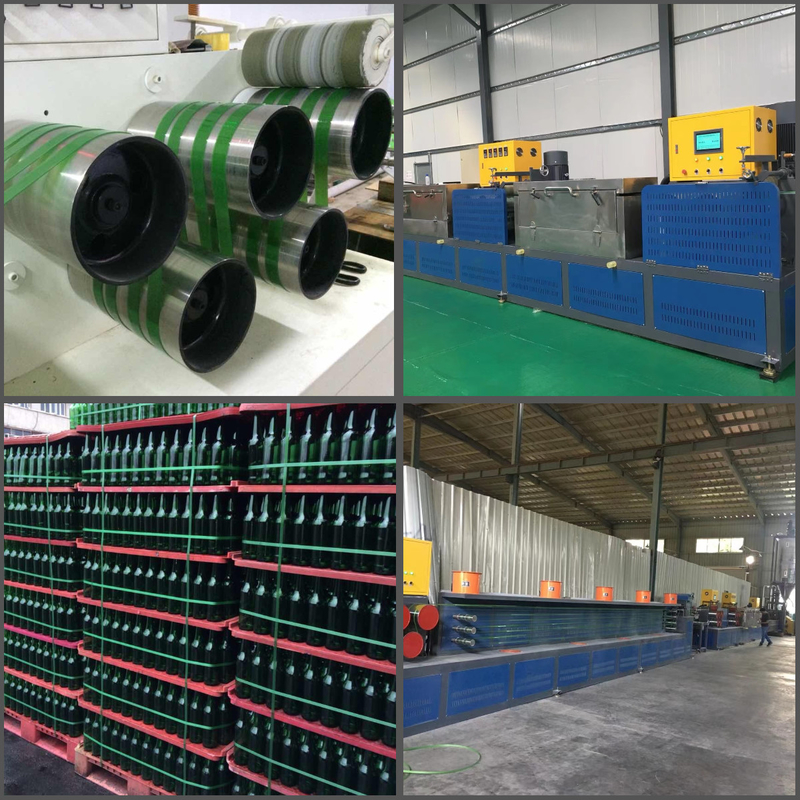

PET Strap Production Line Machine List

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design


Advantages of PET strap

  • Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
  • The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained a long time.
  • Strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120° C, maintaining good stability.
  • Compare with steel strap,it have obvious economic benefits for customer

Features of PET packing strap production line:

  • 1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
  • 2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
  • 3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
  • 4. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.
  • 5. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
  • 6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.
  • 7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging
