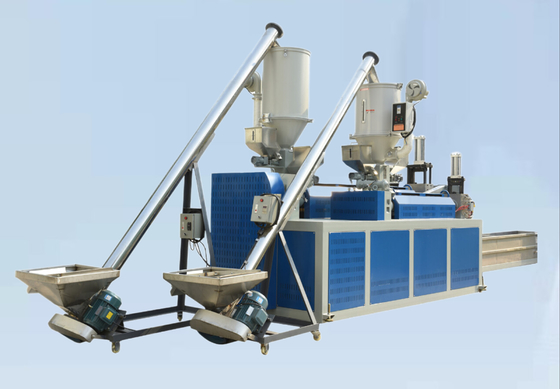

PLC Control Easy Operation High Capacity PP Flexible Strapping Equipment/Flexible Strapping Production Line

PP Plastic Packing Belt Double Output Making Machine

PP Packing Strap Production Line

Process Flow of PP Packing Strap Production Line:

①Material→②Stirring raw material→③Pre crystallization drying→④Extruding→⑤Cooling→⑥Oven preheating→⑦Primary stretching→⑧Secondary stretching→⑨Embossing→⑩Hot forming→⑪Cooling→⑫Winding(finished product)

Machine Description:

PP strapping machine,using the recycling bottle slices as raw materials by making them melt directly,which reduces the course of raw material-making.

​

PP Packing Strap Production Line Details:

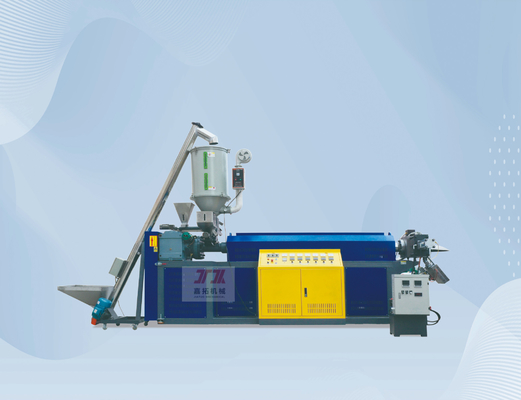

1. Extruder

--- PP two straps extrusion needs 75/30 single screw extruder.
--- Special design screw structurer could extrude PP materials smooth, not create excessive shear molecular structure, and ensures the strength of the packing belt.



2. Screen Changer ,Extrusion Mold and Cooling Tank

--- Automatic hydraulic screen changer, non-stop screen changing.

----Waater tank is mad of 304 stainless steel materials.
----The water is heated by water tank heating unit



3. Extrusion Mold

--- Good quality and special treatment

----Produce different sizes of strpas.
----1-10 straps extruding, according to customer request and straps size.

4. Hual-off Rollers

----Gear transmission
----Chromed rollers

5. Shaping Oven

--- Winder could be designed into servo motor unit, inverter motor unit and torque motor according PET or PP materials and with customer's request.

Parameters of PP 1 to 2 production machine:

Features of  PP Strap Making Machine:

1.Screw with compression ratio especially for PP, gradually changing diameter and deeper thread groove at the melting part.

2. Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps.

3. Stainless steel cooling trough with four thermo treatment processes displaces the traditional one;
4. Haul off rollers with bigger size ensure the quality of products;
5. New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection;
6. Laser embossing roller makes clear and even patterns.

7. Special designed extrusion die & mould; And the improved screen changer realize non-stop screen changing, and without material leakage.

Advantages for PP Strap Making Machine:

• Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.

• Process 100% recycled PP bottle flakes or pellets.

• Even plasticization and stable extrusion with PLC automatic control for the full line.

• 1-10 straps extruding, according to customer request and straps size.

• Produce monofilament by changing some parts.
• Servo or torque motor for winding machine are available.

Samples of  Final Products of PP Strap Band/Belt Extrusion Line/ PP Strap Band/Belt Extrusion Machine

Outstanding Advantages of PP Straps:

Strong tension: Strong tensile resistance, can withstand 0.5 to 8.5 tons of tension, so it can replace traditional steel belt.

Applications of Final Products of PP Strap Band/Belt Extrusion Line/ PP Strap Band/Belt Extrusion Machine

PP packing strap is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

We also supply related auxilliary machines, such as mixer, screw feeder, hopper dryer, etc.
