PET Plastic Packing Belt Double Output Making Machine
PET Packing Strap Production Line
Product Description:
PET strapping band extrusion line machine PET strap line
- PET strap band extrusion line is mainly for producing PET strap.
- The raw material can be 100% recycled material, which can reduce the cost and get a good profit.
- PET bale is the substitution of the steel strap and has a lot of advantages such as good extension high temperature resistant, easy use.
- It is mainly suitable for packaging for various trades.
PET strapping band extrusion line machine PET strap line model :
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|

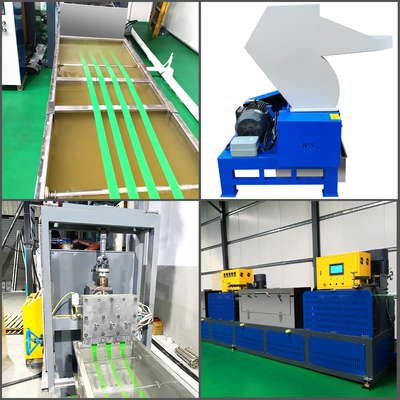

Production line details :
1.High effeciency PET200 continuous crystallizing, dehumidifying, drying and loading System
Include drying system ,crystallizing system and dhumidifying system,with automatic Loading system,
2.High Effeciency Single Screw Extruder
Gear box bearings: NSK, Japan ,with Special design screw & barrel ,with Siemens PLC controlling
system ,ABB550 inverter,Siemens motor, Low voltage component: Siemens

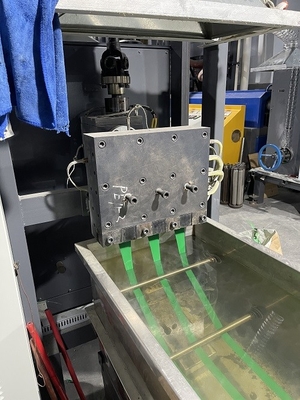

3.Melt Filter, Melt Pump and Extrusion Mold
Candle type filter, bigger filtering area, longer working time, no need change filters shortly.
Close--loop control system from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.
Melt pump ensures stable extrusion
304 stainless steel water cooling tank
Good quality and special treatment
Produce different sizes of strpas.
1-6 straps extruding, according to customer request and straps size.
4.Cooling water tank
High precision water tank made from specify steel material , high Wear resistance and good sliding properties.
Automatically control water temperature and water level.
5. Hual-off Rollers
Gear transmission
Chromed rollers
6. Shaping Oven
Forced air blowing system
Inverter control
Good heat-preservation
7. Fully automatic winding machine
100% fully automatic winding machine is absolutely different with standard winder in the market, it is easy to operate and can save More labour, save Production cost largely.
Our service of PET Strap Band/Belt Extrusion Line/ PET Strap Band/Belt Extrusion Machine:
1.Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.During order: We design groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
3. After sales: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.
