45-50KW Polypropylene Strap Making Machine PP Recycle Material / New Raw Material
Technical parameter of PP strap extrusion line
| Model |
PP-2 |
PP-4 |
PP-6 |
| Production material |
recycled materials/New raw materials |
recycled materials/New raw materials |
recycled materials/New raw materials |
| Number of strips produced |
2 |
4 |
6 |
| Output bandwidth (mm) |
5-19 |
5-19 |
5-19 |
| Tape thickness (mm) |
0.4-1.2 |
0.4-12 |
0.4-12 |
| Extrusion volume (kg/h) |
125 |
290 |
375 |
| Maximum linear speed(m/min) |
≥260 |
≥260 |
≥260 |
| PLC control system |
PLC |
PLC |
PLC |
| Screw model |
90 |
110 |
125 |
| Reducer model |
200 |
220 |
250315 |
| Screen changer |
Single cylinder/double cylinder |
Single cylinder/double cylinder |
Single cylinder/double cylinder |

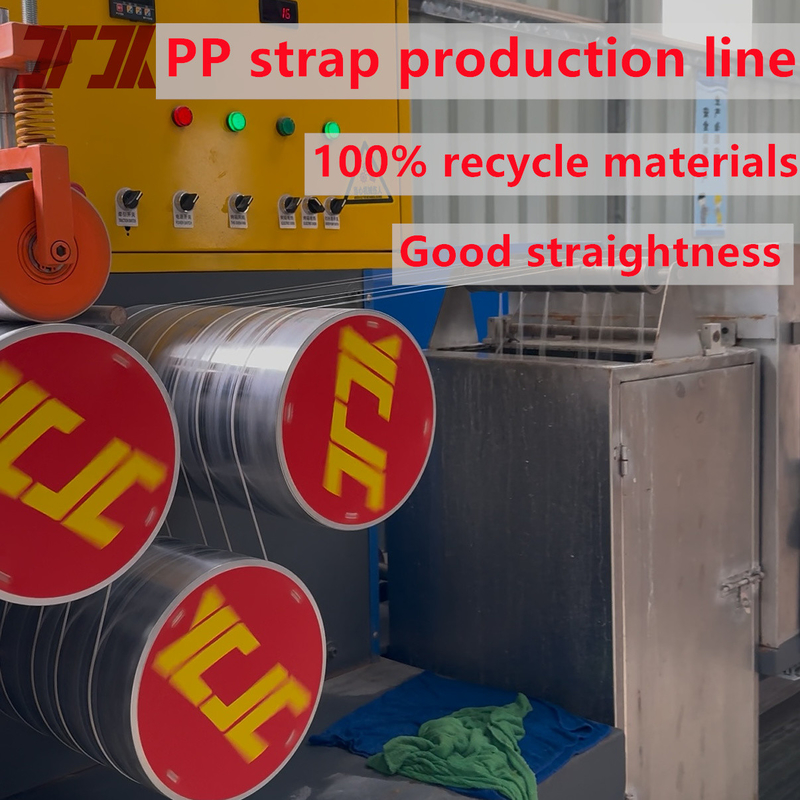

PP packaging belt production line process

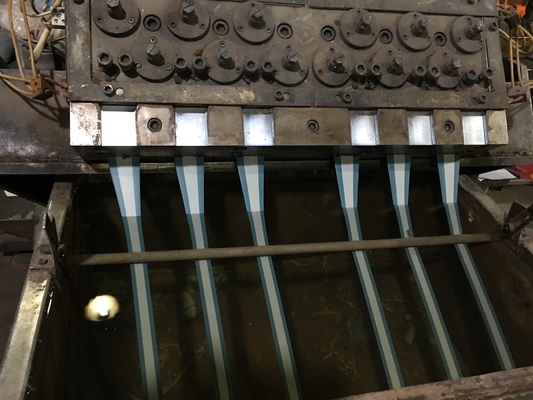

Feeding → stirring → pre-drying → melting and measuring extrusion → embryo (belt embryo) cooling and forming → oven preheating → primary stretching → secondary stretching → embossening → oven tempering and setting → cooling → finished product winding

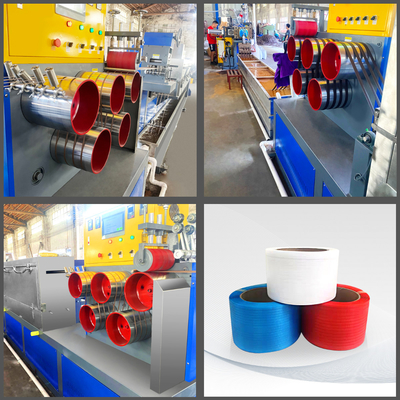

Product Description of PP strap making machine
a plastic strap production machine and manufacture equipment for creating plastic straps out of PP material. This powerful machine is capable of producing straps with a core outer diameter of 200-400mm, and a core inner diameter of 76mm, with strap core lengths of 200-400mm. It even comes with a power supply of either 380V/220V, making it a great choice for any plastic strap production needs.

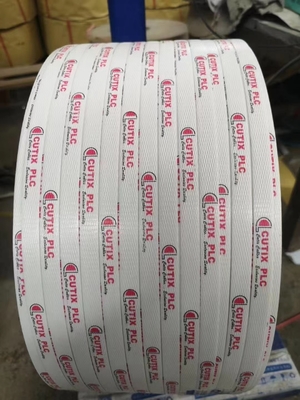

Application of PP strip
The PP packing belt is suitable for a wide range of product application occasions and scenarios. It can be used for packaging and bundling of various goods, including but not limited to, electronic products, food, medicine, daily necessities, and other products that require safe and secure packaging. The PP packing belt is an ideal choice for companies that need to package goods for shipping, storage, or display.
The PP packing belt is available in different colors, including White, Transparent, Yellow, Red, Blue, and Black. The color can be customized to meet the specific needs of the customer. The PP packing belt is also available in different pull strengths, ranging from 50-200KG, which makes it suitable for packaging different types of products.
Our advantages
1.Excellent quality: more than 30 years of industry experience and skilled production workers.
2. Fast delivery: our strong production capability is the guarantee of fast delivery for you.
3.Considerate after sales service: all clients questions can be timely replied within 24 hours.
4.Advanced technology: our R&D team can provide strong technical support and customized solution.
5.We offer fast turn around on all orders,design your logo, low minimum order quantity, and have the experience and capability to handle large volume orders in shortest possible time.
