9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard

9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard
9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard
9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard

Large Image :  9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: ISO/ CE
Model Number: JTPET-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic film
Delivery Time: 50-60DAYS
Payment Terms: L/C, T/T
Supply Ability: 50 sets/month
Contact Now

9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard

Description
Plastic Processed: PET Screw Diameter (mm): 100MM
Production Capacity: 300-350kgs/H Warranty: 1 Years
Number Of Extruded Strap: 3 Application Scope: Brickyard, Metal, Steel, Aluminum,brewery
Screen Filter: Double Cylinder / Single Cylinder Thickness Range: 0.4-1.2mm
Width Range: 9-32mm Applicable Raw Materials: Bottle Flake Material, 100% Broken Material
Control Systems: PLC Chinese/English Control System Heater Power: 220V, 50HZ, 6 KW/ SET
Motor: SIMENS Inverter: INVT
Pre-drying Tower Capacity: 4000L Screw Design: Single-screw
Highlight:

Single Screw PET Strap Making Machine

,

PET Strap Making Machine 350kgs/H

,

PET Strap Making Machine For Brickyard

9-32mm Single Screw PET Strap Making Machine Japan German Technique Tensile Strength

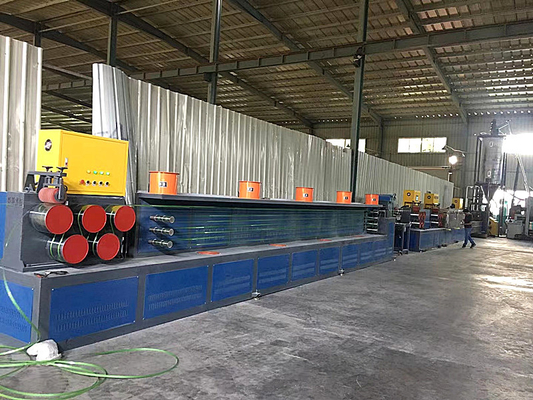

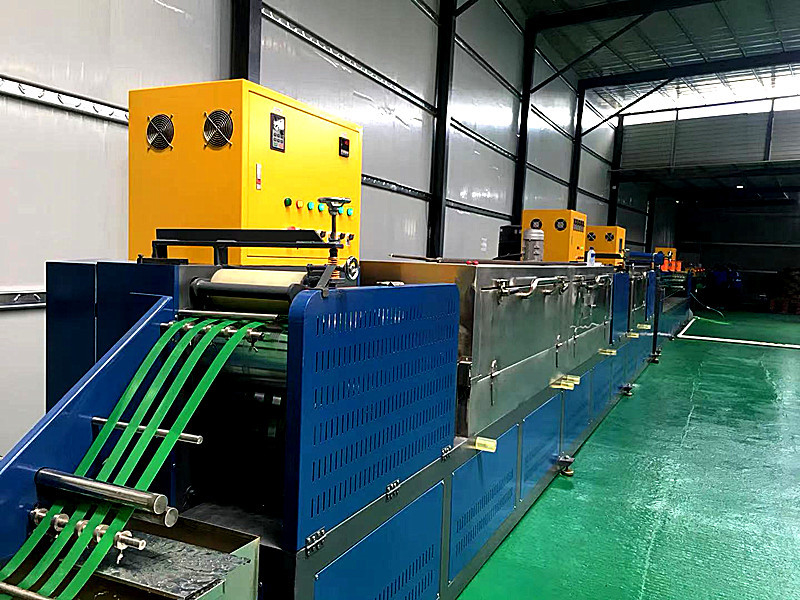

Product Description of  PET strap making extruder machine



Plastic PET strap belt sheet making extruder machine can produce different width and thickness PET strap according to client's requirement.
100% recycled material can be extruded by our PET strap extrusion machine. which can reduce the produce cost and get a good profit. And the PET strap is the substitution of the steel strap and has lots of advantages such as good extension, high temperature resistance, easy use, etc.



Technical Parameters of PET 1 to 3 production machine



Item JTPET-100
Screw design Single screw
Straps Qty. 3 straps
Output/Day 7.2-7.5T/24 hours
Screw Dia. 100mm
Winder Qty. 3 sets
Material used PET raw material or 100% PET bottle flakes recycled
Running power 180-190kw
Installed power 250kw
Strap specifications Width 9-32mm thickness 0.4-1.2mm
Workshop area L (58m) ×W (2m) ×H (8m)
Electric components Schneider





Production Process of PET Strap Production Machine


Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding


9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 0

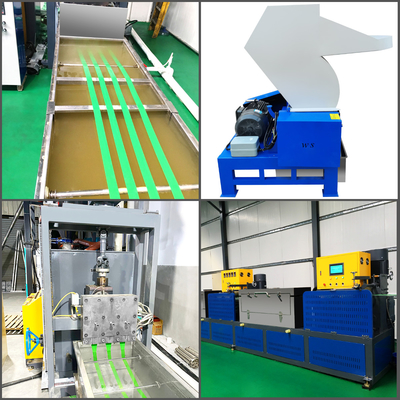

PET strap making line configuration reference



Item

Name

Quantity

1

Dehumidification and drying system

1 set

2

Oil and dust filter

1 set

3

Horizontal mixer(4000L)

1 set

4

Pre-drying tower(4000L)

1 set

5

Screw Feeder

3 set

6

Barrel(4000L)

1 set

7

¢100mm Extruding Machine

1 set

8

Melt pump

1 set

9

Single cylinder filter

1 set

10

PET Mould output 3straps

1 set

11

Cooling water tank

1 set

12

Stretching oven

1 set

13

Five roller gearbox

3 set

14

PLC electrical control system

1 set

15

Forming oven

1 set

16

Double disk winder

3 set

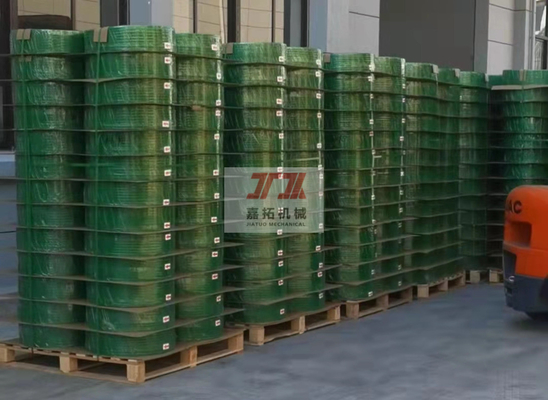

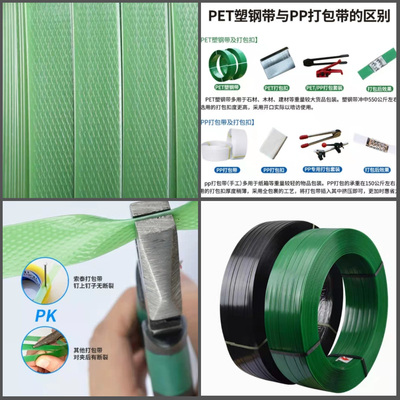

Application of PET strap



PET strap is wide use of plastic packaging with environmental protection. PET is the main raw material by extrusion one-way stretch forming a polyester packing belt, PET packing belt is the most popular international alternative steel, steel, heavy PP packaging with a new type of environmentally friendly packaging materials. It has been widely used in wood, paper, steel, aluminum ingot, steel pipe, profiles, glass, building materials, ceramics, electrical appliances and metal products , Tobacco, chemical fiber, cotton and other industries. Transparent appearance (opaque after adding auxiliaries), the surface is smooth or prismatic pattern. Our PET straps extrusion machine with 100% bottle flakes recycled material, to produce various specifications of PET strap.



9-32mm Single Screw PET Strap Making Machine 350kgs/H For Brickyard 1

Tag:

Bottle Flakes PET Strap Making Machine,

32mm Width PET Strap Making Machine,

32mm Width PET Strap Extrusion Line
