Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width

Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width
Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width
Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width

Large Image :  Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-90
Document: parameter details of PP Str...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Contact Now

Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width

Description
Product Type: Used PET Strapping Band Production Line/PP Strapping Band Making Machine/PET Packing Straps Extrusion Machine Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design: Optional Twin Screw Type: Co-rotating Parallel Twin-screw
Driven Type: Electric Processing Type: Extruding Machine
Automation: Automatic Application: Packaging Strap
Highlight:

0.4mm PP Strapping Band Making Machine

,

135kw PP Strapping Band Making Machine

,

352kw PET Strapping Band Production Line



 Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width


Quick Detail Of PP Strap Making Machine

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)


Configuration Of PP Strapping Production Line

NO. Name QTY
1 Color Mixer 1 set
2 Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it.		 1 set
3 Hopper dryer 1 set
4 SJ single screw extruder 1 set
5 High speed Screen exchanger device 1 set
6 Molud 1 set
7 Water cooling tank 1 set
8 The first traction machine- 5 rollers 1 set
9 The first Stretch forming oven 1 set
10 The Second traction machine- 5 rollers 1 set
11 The second Stretch forming oven 1 set
12 The Third traction machine- 3 rollers 1 set
13 Embossing machine 1 set
14 The Winder machine 1 set

Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width 0

Working process of PP strapping equipment:

Raw material preparation----Add PP granules into the extruder hopper.

Extrusion molding----PP granules are melted in the extruder and extruded through the mold.

Cooling and shaping----The extruded strapping tape enters the cooling water tank for cooling and shaping.

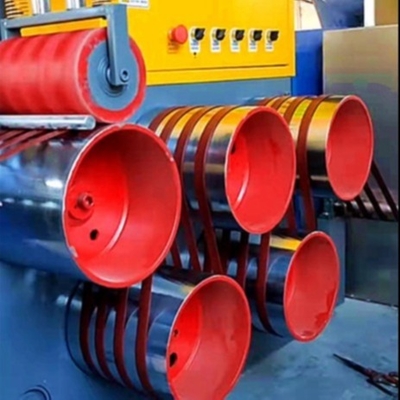

Traction and stretching---- The traction machine pulls the strapping tape, and the stretching machine performs stretching treatment.

Embossed treatment---- The embossing machine embosses the surface of the strapping tape.

Shaping oven---- Heat and shape the PP tape again to achieve consistent specifications.

Reeling and packaging----The reeling machine winds the strapping tape into a roll and puts it into storage after packaging.



 Finished PP belt:

Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width 1





FAQ



Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.

Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.

Q:Can the length of the PP strapping production line be customized?
A: YES

Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF

Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width 2
