400kgs/H PET Strap Making Machine 125MM Screw Diameter Extrusion Line
Motor Simens PET Strap Making Machine Output 4 Making Machine 400kgs/H
Description of PET strap band production machine:

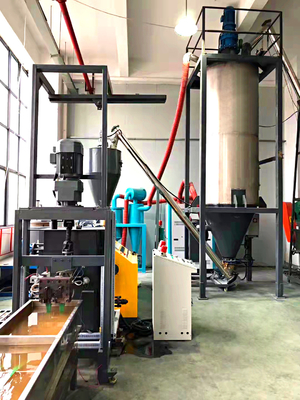

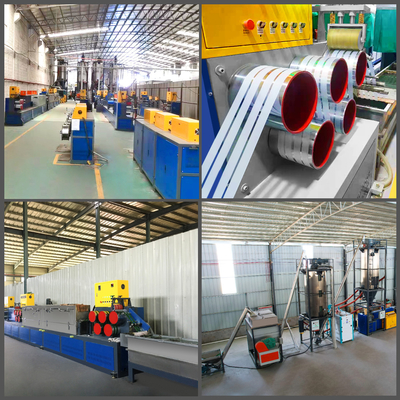

This production line is used to produce the plastic steel packing strap, adopt the PLC control the whole line do the automatic production, it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled PET flakes from the waste PET bottles, virgin material or mixed with each other.
PET strap production line configuration reference:
|
Item
|
Name
|
Quantity
|
|
1
|
Dehumidification and drying system
|
1 set
|
|
2
|
Oil and dust filter
|
1 set
|
|
3
|
Horizontal mixer(5000L)
|
1 set
|
|
4
|
Pre-drying tower(5000L)
|
1 set
|
|
5
|
Screw Feeder
|
3 set
|
|
6
|
Barrel(5000L)
|
1 set
|
|
7
|
¢125mm Extruding Machine
|
1 set
|
|
8
|
Melt pump
|
1 set
|
|
9
|
Single cylinder filter
|
1 set
|
|
10
|
PET Mould output 4straps
|
1 set
|
|
11
|
Cooling water tank
|
1 set
|
|
12
|
Stretching oven
|
1 set
|
|
13
|
Five roller gearbox
|
3 set
|
|
14
|
PLC electrical control system
|
1 set
|
|
15
|
Forming oven
|
1 set
|
|
16
|
Double disk winder
|
4 set
|

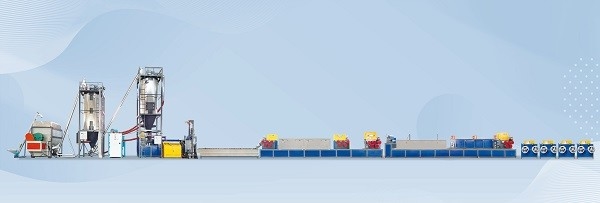

PET packaging belt production line process flow:
① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)
Application for plastic steel strapping:
As a new type of strapping product with strong tensile force and corrosion resistance, PET strapping belt is gradually replacing traditional stainless steel strapping products with overwhelming advantages in performance and price. Therefore, the potential of PET strapping production line as a small and medium-sized investment is huge.It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.
Features of PET Strap production machine:
-
All the products are made of 100% bottle sheet material/crushing material to reduce the cost.
-
The winding machine adopts double station winding device, easy to operate and easy to change.
-
Special design hot forming tensile tank to make good gorming,euqal width,straight strap.
-
It has the advantages of large extrusion capacity, good plasticizing, high hardness and high wear resistance.

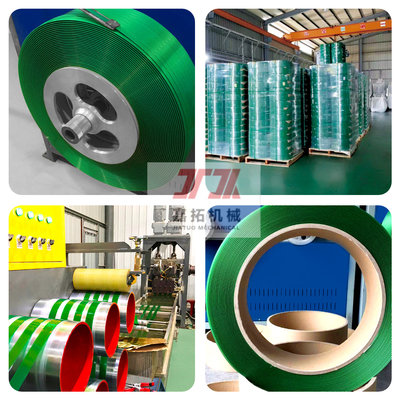

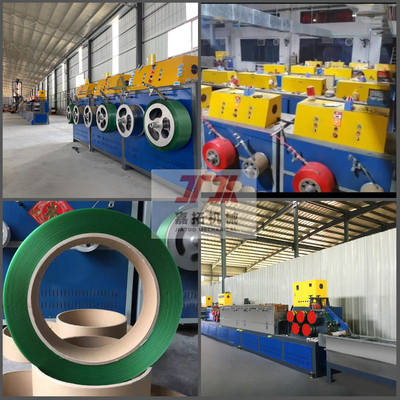

PET strapping finished products:
As you can see that the PET strapping can be available in different colors with different patterns, or can be printed with your company logo or any logo you want to display according to your requirements, the different colors depend on the color masterbatch you use. And we are using constant force winding system with unique design parameters in our machine, which meets high output, excellent winding effect and flat and beautiful on both sides.
