Packaging machinery Single screw PET plastic steel belt machine PET belt making machine for 100% bottle flake production
Product description of pet strap making machine:
PET plastic steel belt is a high speed and environmentally friendly extruder, which can produce PET belts with width 9-32mm, with the following advantages:
1. Tensile strength ----PET packing tape production line has the tensile strength of steel tape, good ductility and better impact resistance. It is not easy to break, which can ensure the safety of product transportation.
2. small elongation ----PET plastic steel belt is a kind of bundling products, its elongation change is very small, its elongation is only 1/6 of polypropylene, it can keep the tension, and make its elongation no longer change after packing.
3. Strong temperature resistance ----PET Plastic Steel Belt has the characteristics of high temperature resistance, cold resistance, etc. The melting point of PET strapping is about 260℃, which can be used for a long time without deformation under the environment of 120℃, and has good stability.
4.Environmental protection-----PET steel belt is beautiful and will not rust, but also can be recycled, energy saving and environmental protection, low manufacturing cost.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Name |
PET packing strap making machine |
| Applicable raw materials |
100% bottle flakes or crushed materials |
| Number of screws |
Single Screw |
| Screw model |
150 |
| Number of extruded belts |
6 |
| Width range |
9-32mm |
| Thickness range |
0.4-1.2mm |
| Production capacity |
600-650kg/h |
| Metering Pumps |
150CC |

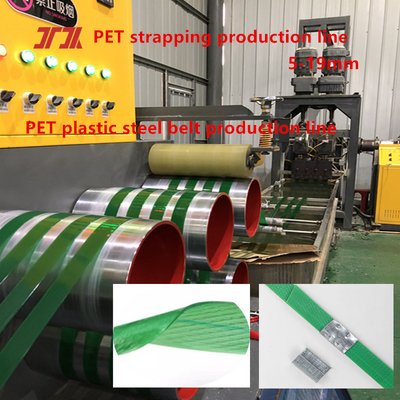

Plastic steel strap finished products:
Features of PET plastic-steel strapping:
PET strapping, also known as plastic-steel strapping, is a new type of strapping strapping that is currently popular in the world to replace iron strapping. It is widely used in steel, aluminum, chemical fiber, cotton spinning, brick factories, paper industry, metal can making and other industries. Strong tensile strength: It has both the tensile strength of steel strapping and the ductility to resist impact, which can ensure the transportation safety of your products.
Features of PET plastic steel belt:
PET strapping production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure that the product quality is the same every time.
The equipment is equipped with two sets of shaping oven systems, one stretch shaping, two shaping shaping, etc. The equipment consists of: stirring part, feeding part, drying part, dehumidification part, main machine part, cooling part, extension part, shaping part, small traction part, large traction part, embossing part, winding machine, etc.
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer, so that we can quote a best price to you without any person adding extra fee between us.
2.China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
3.If we buy your machines, can you offer us wear-out spare parts?
We will provide some wear-out spare parts free of charge, it will send to you with the machine.
4.How am I suppose to trust you the machine I received matches your description?
Appearance of final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
