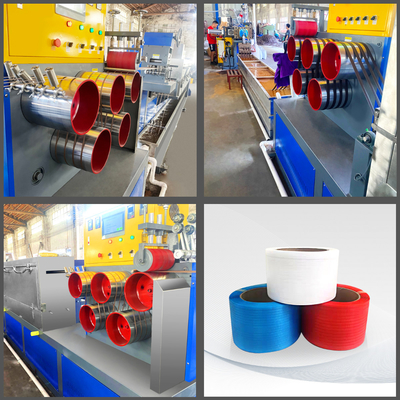

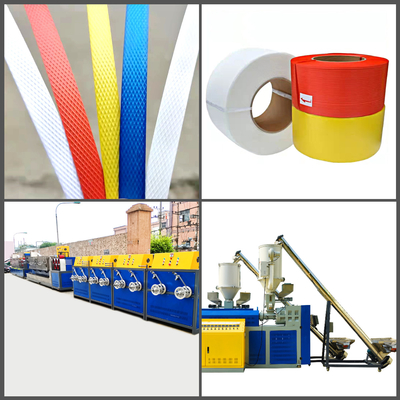

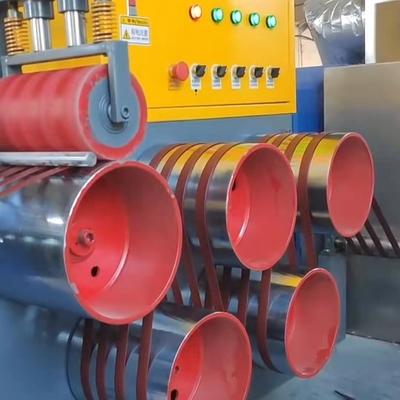

Plastic Machinery Twin Screw Sandwich PP Strapping Tape Production Line PP Strapping Tape Machine with 5-19mm Width
QUICK DETAILS OF PP STRAP MAKING MACHINE
The main components of PP strapping equipment:
Extruder---- core component, heats and melts PP particles and then extrude them into shape.
Die head---- determines the shape and size of the plastic strap.
Cooling system----quickly solidifies the extruded plastic strap through water cooling or air cooling.
Tractor---- pulls out the cooled plastic strap to ensure uniform thickness and width.
Oven---- heats the strap embryo and stretches it into shape, stretching ratio: 10-20 times.
Coiler---- winds the plastic strap into a roll for easy storage and transportation.
Control system---- PLC automatically controls each component to ensure stable production.
CONFIGURATION OF PP STRAPPING PRODUCTION LINE
| NO. | Name | QTY |
| 1 | Color Mixer | 1 set |
| 2 | Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it. | 1 set |
| 3 | Hopper dryer | 1 set |
| 4 | SJ single screw extruder | 1 set |
| 5 | High speed Screen exchanger device | 1 set |
| 6 | Molud | 1 set |
| 7 | Water cooling tank | 1 set |
| 8 | The first traction machine- 5 rollers | 1 set |
| 9 | The first Stretch forming oven | 1 set |
| 10 | The Second traction machine- 5 rollers | 1 set |
| 11 | The second Stretch forming oven | 1 set |
| 12 | The Third traction machine- 3 rollers | 1 set |
| 13 | Embossing machine | 1 set |
| 14 | The Winder machine | 1 set |
APPLICATION & FEATURES OF PP STRAP EXTRUSION LINE
The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
The PP strapping tape production line can produce PP strapping tapes of different colors according to customer requirements, including: red, green, blue, black, yellow, transparent, white, etc.
The PP strapping tape production line can use twin-screw extrusion or single-screw extrusion according to customer requirements, and can produce all-plastic PP tapes or sandwich PP tapes.
About After-sales
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ ABOUT PP BELT STRAPPING PRODUCTION LINE
Q1:Are you a trading company or a factory?
A1:We are a factory,can give u best service.
Q2:When can I get my machine after I paid?
A2:We will deliver the machines on time as the date we agreed both side.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
