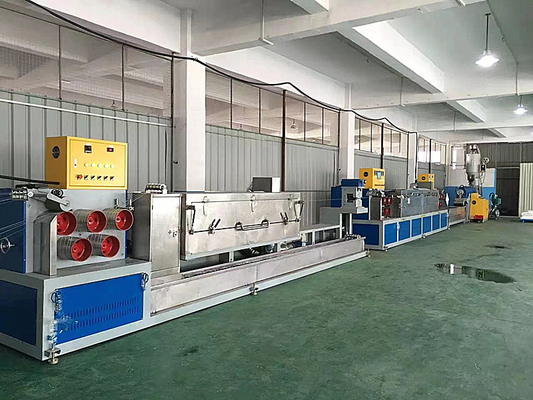

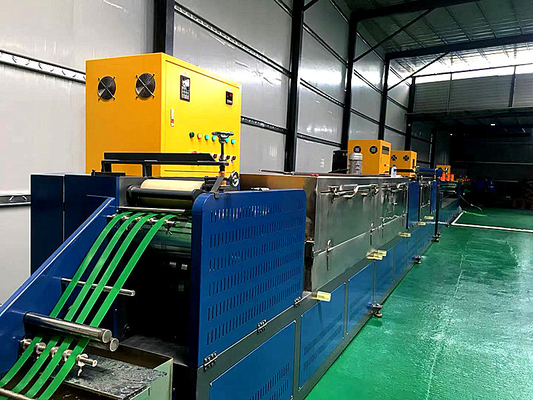

Plastic PET Strap Extrusion Line Plastic Manufacturing Machine For PET Package Belt
PET STARP MACKING MACHINE
Jiatuo Plastic Machinery Co.,Ltd is the professional manufacturer of PET PP strap extrusion line. We could meet high quality strap production and high capacity request from customers.
Character:
It use single screw extruder system
For PET strap production, It use 100% recycling material
Measurement pump ensure constant and stable production
Two pull four station filter can efficiently eliminate impurity
Large hauling force stretch device and insulation oven
PET Strap Production Line Machine List
| Item |
Quantity |
| 1.Lifting mixing drying system and screw feeding system |
1 set |
| 2.450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4.high-power screen changer |
1 set |
| 5.metering pump with independent speed regulation system |
1 set |
| 6.Special mould for PET strap band |
1 set |
| 7.Cooling water tank |
1 set |
| 8.The first five-roller tractor |
1 set |
| 9.Stretching oven |
1 set |
| 10.The second five-roller tractor |
1 set |
| 11.Embossing machine |
1 set |
| 12.The third five-roller tractor |
1 set |
| 13.Cooling sizing system |
1 set |
| 14.The fourth three-roller tractor |
1 set |

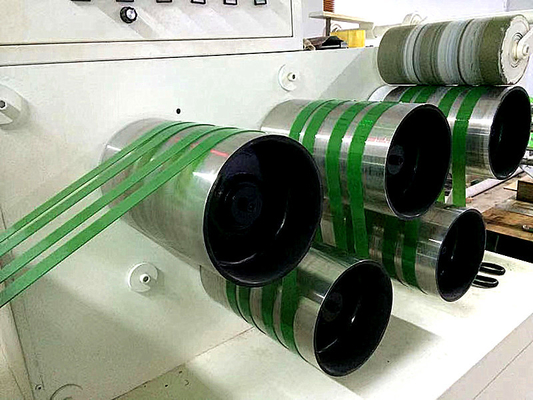

| 15.Single station semi-automatic winding machine |
1 set |
FEATURES
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head
3. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower
FUNCTION
1) PET raw materials do not need to separate the dry and water treatment. There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) with the multi-purpose machine, produce the PET straps in different specifications directly and don't need to change the mould head;
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;
5) Low Energy consumption, but high production capability;
6)Easy to operate, save the manpower and two persons for one production line on average.
ABOUT OUR COMPANY
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.
Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine for all bags, automatic packing machine for all bags and automatic packing machine for all bags; High grade, high-strength and environment-friendly PP baling machine, PP packing belt, pet plastic steel belt and other packaging materials.
