PET Packing Belt Extrusion Line PET Strap Band Making Manufacturing Machine
PET PACKAGE STRAP MAKING MACHINE
This machine is main used to make pet strap, pet packing strap .
Adopt the PLC control the whole line do the auotmatic production
it use the melting pump and pressure sensor ensure the production stable and strap quality control
The raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.

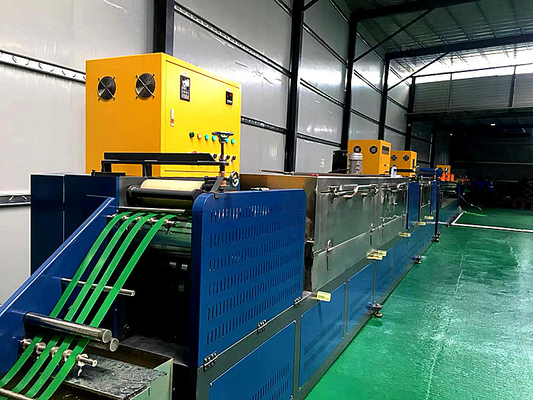

PET Strap Production Line Machine List
| Item |
Quantity |
| 1.Lifting mixing drying system and screw feeding system |
1 set |
| 2.450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4.high-power screen changer |
1 set |
| 5.metering pump with independent speed regulation system |
1 set |
| 6.Special mould for PET strap band |
1 set |
| 7.Cooling water tank |
1 set |
| 8.The first five-roller tractor |
1 set |
| 9.Stretching oven |
1 set |
| 10.The second five-roller tractor |
1 set |
| 11.Embossing machine |
1 set |
| 12.The third five-roller tractor |
1 set |
| 13.Cooling sizing system |
1 set |
| 14.The fourth three-roller tractor |
1 set |

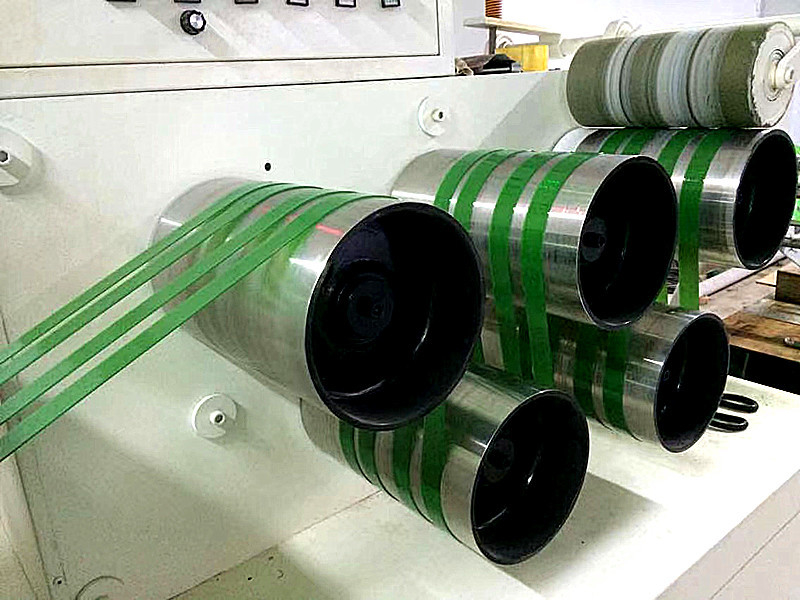

| 15.Single station semi-automatic winding machine |
1 set |
ADVANTAGES & FEATURES
1. Special design of the screw extrusion technology can be choosing as per customer needs.
2. Can process 100% recycled PP/PET bottle flakes or pellets.
3. Plasticization and stable extrusion can with PLC automatic control for the full line.
4. According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5. Melt filter with two pistons with air venting design and back flushing.
6. Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7. Workers: 2 -3 workers per shift, 12 hours/shift.
