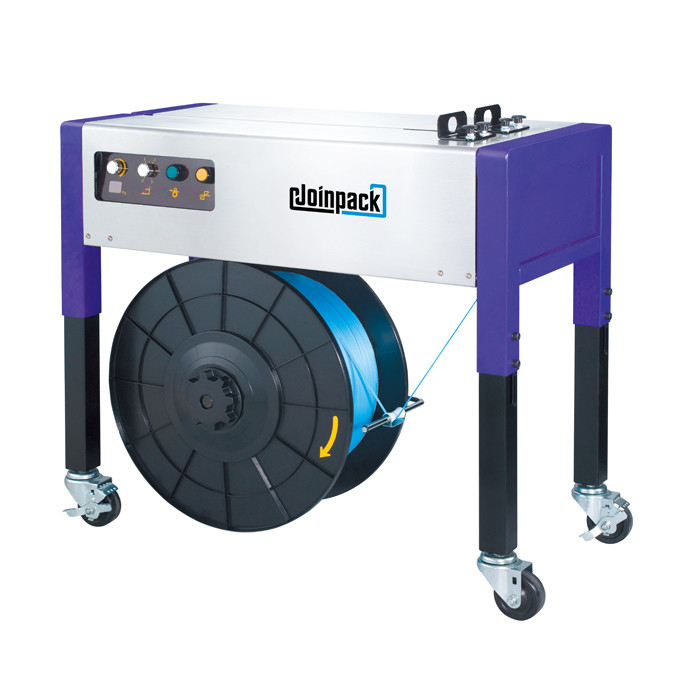

Join Pack Semi Automatic Strapping Machine Strap Width Adjustable
PRODUCT DESCRIPTION
High performance equipped with digital indicator for electrical tension adjustment.
Low voltage DC motor driven, perform fast speed and wide tension range at low noise.
Available for narrow and thick strap.
Table height adjustable.
Legs dismountable for saving transportation and storage cost.
| Cycle Time |
2 sec./strap |
| Tension Range |
3~40kgs |
| Strap Width |
5,6,9,12,15.5mm adjustable |
| Sealing Method |
Heating element |
| Reel Inside Diameter |
200,230,280mm specified |
| Power Supply |
100/110/220/230/240V 50/60HZ, 1PH |
| Table Height |
750~830mm adjustable |
| Power Consumption |
0.4kw |
Machine Dimension
(L x W x H mm) |
L845 x W430 x H750 |
Machine Weight
(50%,100%,150%,200%) |
65kgs |
Features of the semi-automatic strapping machine for PET strap:
High engineering standard and simple design
Easy operation, simple maintenance
Hinged stainless steel top plate
Mechanical outside tension control
Rigid castors with brake
Energy efficient, motor only runs as needed
Reliable P.C. Board control
Affordable for every budget
Offer maximum total value among competing brands
Proven quality
How to use semi-automatic strapping machine:
1. Power switch: Turn ON to start the machine, and OFF to stop the machine.
2. Power indicator light (POWER): Turn on the power switch, the light is on.
3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.
4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.
5. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.

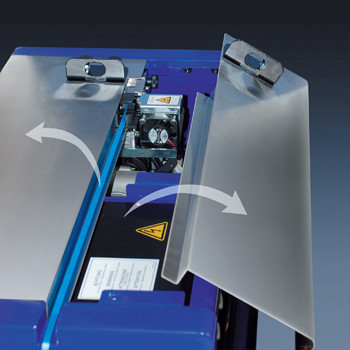

6. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.
7. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 8. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.
