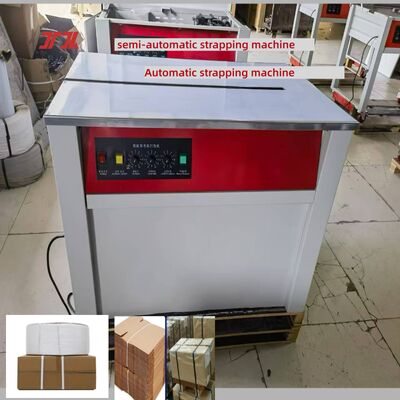

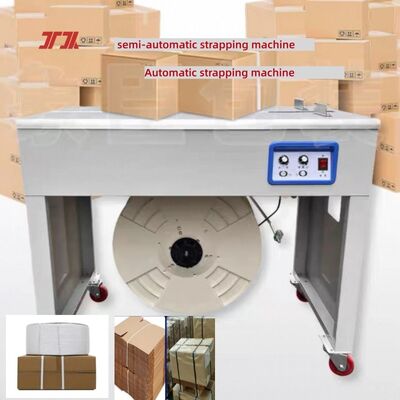

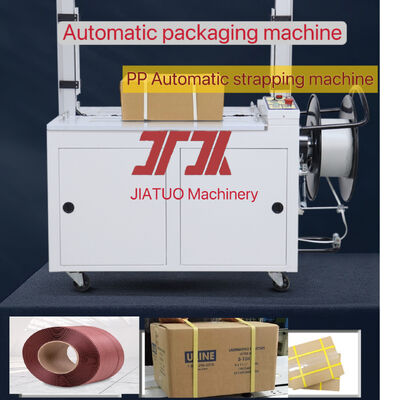

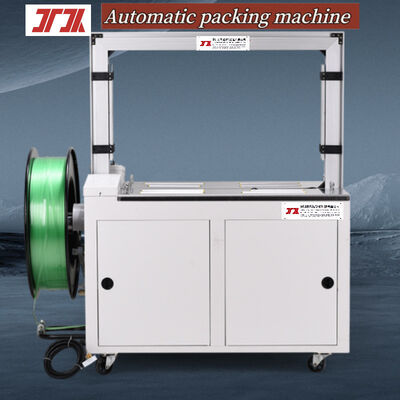

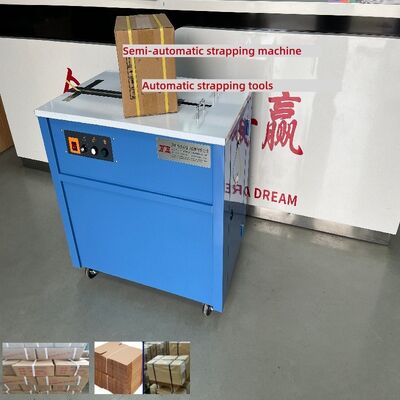

Semi-automatic fully automatic strapping machines high-speed packaging machines with PP PET strapping
PRODUCT DESCRIPTION
High performance equipped with digital indicator for electrical tension adjustment.
Low voltage DC motor driven, perform fast speed and wide tension range at low noise.
Available for narrow and thick strap.
Table height adjustable.
Legs dismountable for saving transportation and storage cost.
Parameter table
| Name |
Semi-Automatic strapping machine |
| Packing speed |
≤2.5 seconds/track |
| Work surface height |
750mm |
| Panel load-bearing capacity |
50KG |
| Binding force |
0-60KG(Adjustable) |
| Joining method |
Hot-melt bonding |
| Bundling method |
Manually threading and strapping |
| Strap Width |
6-15mm |
| Weight |
100KG |
| Power supply |
220V 50/60HZ.1P |
| Color |
white red (customizable) |
| Size |
L1000*W500*H1950mm |
Features:
Frame---- A sturdy steel structure that provides stable support.
Reel----- Mounts and supports the rolled strapping tape.
Tape feed guide----- Guides the strapping tape into the machine.
Tape retraction and tightening mechanism------ The core component responsible for tightening the strapping tape.
Electric heat welder----- Heats and melts the strapping tape to create a bond.
Drive system----- Includes a motor and gears, providing power for retraction and tightening.
How to use semi-automatic strapping machine:
1. Power switch: Turn ON to start the machine, and OFF to stop the machine.
2. Power indicator light (POWER): Turn on the power switch, the light is on.
3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.
4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.
5. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 6. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.
7. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.
8. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.
