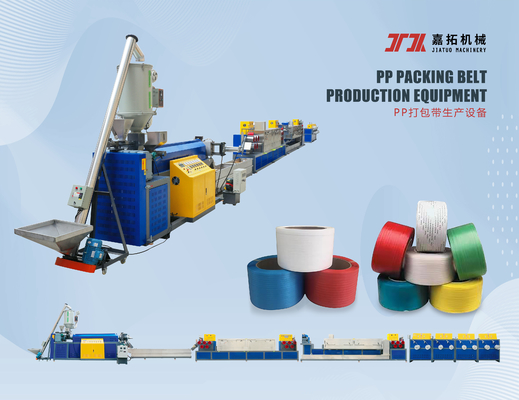

Packaging equipment 5-15mm twin screw sandwich PP strapping production line PP strapping equipment PP extruder for PLC control system
PRODUCT DESCRIPTION
Screw------The machine uses high-quality 38CrMoALA screw material, which is famous for its excellent strength and durability.
Type------Single screw/twin screw extruder can be used, and the size can be customized according to customer requirements.
Winding machine-----PP belt making machine can be equipped with semi-automatic winding machine & fully automatic winding machine
Line speed---------200-300 m/min
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |

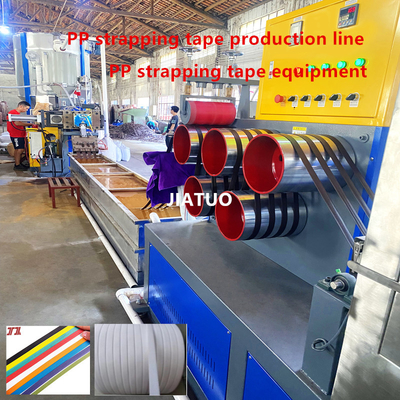

Working process of PP strapping equipment:
Raw material preparation----Add PP granules into the extruder hopper.
Extrusion molding----PP granules are melted in the extruder and extruded through the mold.
Cooling and shaping----The extruded strapping tape enters the cooling water tank for cooling and shaping.
Traction and stretching---- The traction machine pulls the strapping tape, and the stretching machine performs stretching treatment.
Embossed treatment---- The embossing machine embosses the surface of the strapping tape.
Shaping oven---- Heat and shape the PP tape again to achieve consistent specifications.
Reeling and packaging----The reeling machine winds the strapping tape into a roll and puts it into storage after packaging.
FUNCTION
1) PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) Low Energy consumption, but high production capability;
4)Easy to operate, save the manpower and two persons for one production line on average.
Applicable to balers:
1. Fully automatic baler
2. High-speed baler
3. Semi-automatic baler
4. Handheld electric baler
5. Manual clamp baler
