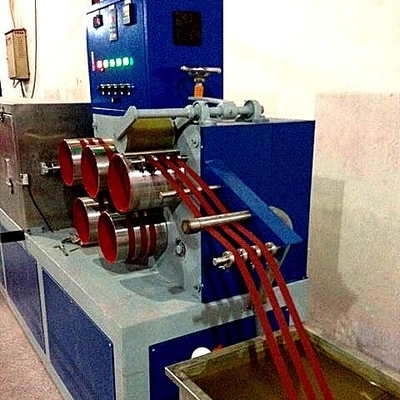

Supply 5-15mm PP strapping tape production line PP strapping tape equipment PP extruder for automatic screen changer
PRODUCT DESCRIPTION
The raw material can be 100% recycled material, which can reduce the produce cost and get a good profit.
And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature
resistant, easy use.
It is mainly suitable for packaging for various trades.
| Name |
PP Extrusion Machine |
| Machine size (L*W*H) mm |
3600*1200*4000 |
| Product arrange mode |
PP One out four |
| Extrusion Capacit(kg/h) |
240 |
| Speed (m/min) |
more than 250 |
| Number of Straps |
4 |
| PLC control system |
PLC |
| Outgoing band width(mm) |
5-19 |
| Band Thickness(mm) |
0.4-1.2 |
| Capacity per day |
5.7 T |
ADVANTAGES
PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and
drying that save a large number of equipment investment and reduce the production cost by 30%;
Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
With the multi-purpose machine, produce the PP PET straps in different specifications directly and don not need to change the mould head;
Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock
resistance are up to the international grade;
Low Energy consumption, but high production capability;
Easy to operate, save the manpower and two persons for one production line on average
PP strapping tape specifications
| Model |
Width |
Thickness |
Pull |
Gross weight |
Net weight |
Paper core |
Length |
| PP-05045 |
5.0mm |
0.45mm |
>50kg |
10kg |
9.5kg |
Ø200mm |
7000m |
| PP-08050 |
8.0mm |
0.50mm |
>90kg |
10kg |
9.5kg |
Ø200mm |
4700m |
| PP-09060 |
9.0mm |
0.60mm |
>90kg |
10kg |
9.5kg |
Ø200mm |
3150m |
| PP-10060 |
10.0mm |
0.60mm |
>110kg |
10kg |
9.5kg |
Ø200mm |
2350m |
| PP-11045 |
11.0mm |
0.45mm |
>80kg |
10kg |
9.5kg |
Ø200mm |
3650m |
| PP-12080 |
12.0mm |
0.80mm |
>150kg |
10kg |
9.5kg |
Ø200mm |
1700m |
| PP-13580 |
13.5mm |
0.80mm |
>160kg |
10kg |
9.5kg |
Ø200mm |
1550m |
| PP-15100 |
15.0mm |
1.00mm |
>180kg |
10kg |
9.5kg |
Ø200mm |
1050m |
| PP-18080 |
18.0mm |
0.80mm |
>180kg |
10kg |
9.5kg |
Ø200mm |
1150m |
| PP-19060 |
19.0mm |
0.60mm |
>160kg |
10kg |
9.5kg |
Ø200mm |
1350m |
| PP-19070 |
19.0mm |
0.70mm |
>200kg |
10kg |
9.5kg |
Ø200mm |
1200m |
| PP-19080 |
19.0mm |
0.80mm |
>240kg |
10kg |
9.5kg |
Ø200mm |
1000m |
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
* What about the usage of PP strap? Packing boxes, money, paper;
* Will the strap be used for automatic strapping tool or manual tool? Both.
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the camber of strap? <20mm/2m;
* What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
* Will the strap be used for automatic strapping tool or manual tool? Both.
WHY CHOOSE US
1. We major in PP & PET Strap Production Line for 20 years
2. Can use 100% recycled bottle flakes material
3. The final straps can be packed automatically
4. Always have at least 3 sets of sample machine in our workshop
5. Can take customers to see the running machines
6. Can test the machine for customers
