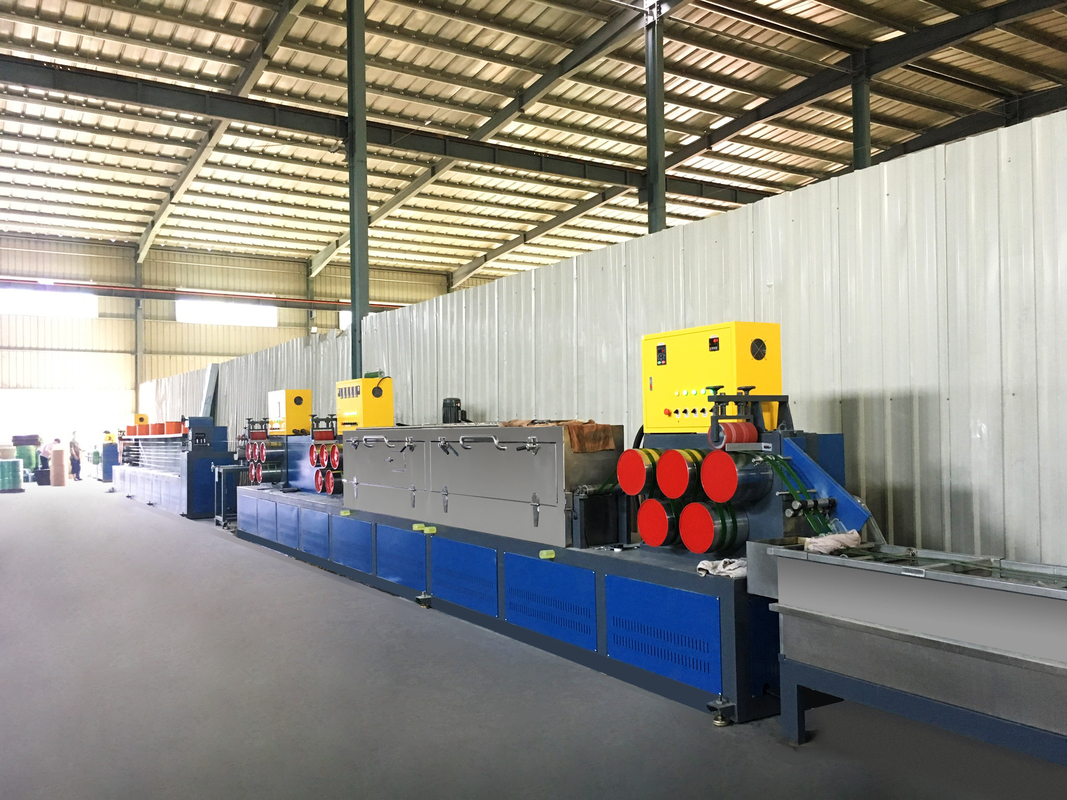

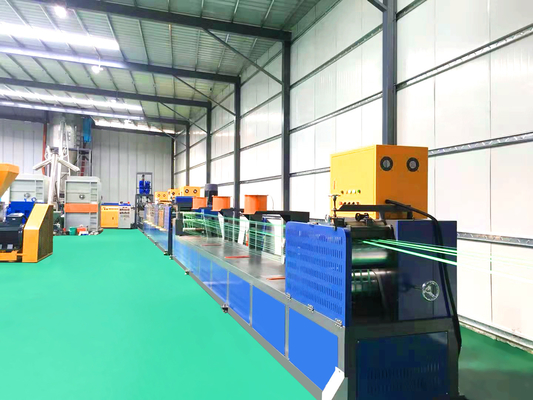

Automatic Plastic Packing Belt Plastic Extruder Line PET Strap Machine
PRODUCT DESCRIPTION
This machine is mainly used to make PET strap ,PP packing strap.
Our machines adopts the PLC control to realsize the whole line auotmatic production.
Using the melting pump and pressure sensor ensure the production stable and strap quality control.
The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Advantages of PET strap
- Use 100% Recycled PET/PP Flakes to reduce the cost.
- Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.
- Special design hot forming tensile tank to make good forming ,equal width,straight strap.
Features of PET packing strap production line
PET packing strap is widely used, replaced for steel strap for packing application internationally, because
of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant,
non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making,
tobacco, agriculture, election, etc.
Characteristic of our PET packing strap machine:
1. The raw material treatment is by our CSG serious dehumidify and dryness system, it ensures the
humidity in raw material less than 80PPM.
2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw
material.
3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the
even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good
dimension of PET strap.
4. The machine can produce 1/2/4 strap at the same time.
5. The mould is specially designed, equipped with two-stage filter.
6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile
strength performance.
7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape.
FAQ
1. Q: How can I purchase your goods?
A: Please choose your perfect item and tell us your size, quantity and packing you want.
2. Q: How long is the lead time?
A: Normal order within 10-30 days after deposit.
3. Q: Do you offer sample?
A: Samples can be sent for your reference, but charge is required, after making formal order, the cost of samples will be cut from the total amount.
4.Q: What is the MOQ on your products?
A: Small quantity can be acceptable, depends on the stock.
