CE Approved Pet Strapping Band Production Line High Production Energy Saving
PRODUCT DESCRIPTION
Produce 1-2 lines at the same time
Automatic operation and labor saving
High production
Reasonable drive system and unique oven. Energy saving
Safety, environment protection and economy
Produce lighter weight straps(L:12,W:0.6 strap, only 3.1g)
Produce manual and automatic straps
Low skewness, strong tensile strength and stable quality
Hydraulic automatic screen changer is optional

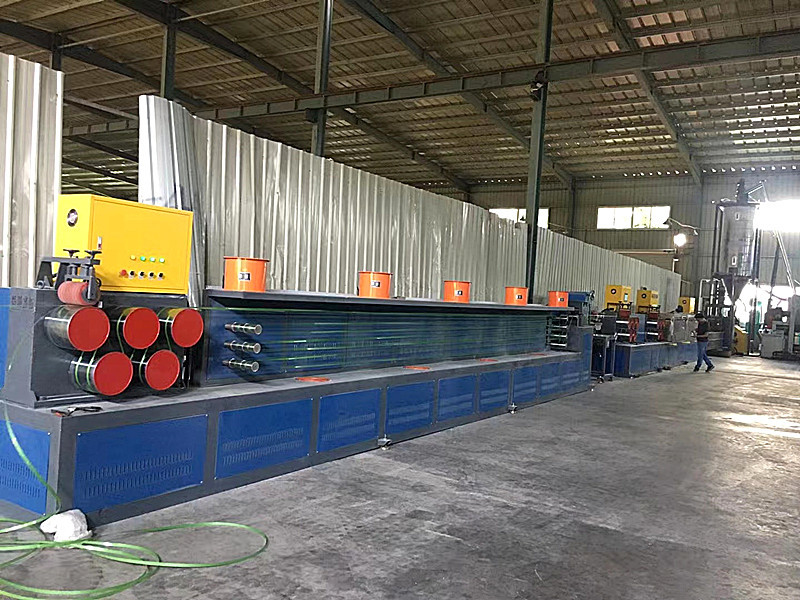

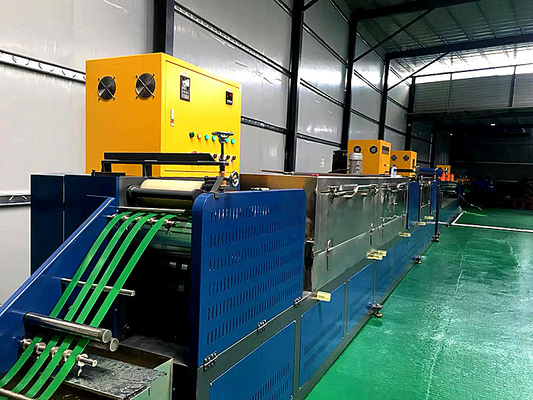

PET Strap Production Line Machine List
| Item |
Quantity |
| 1.Lifting mixing drying system and screw feeding system |
1 set |
| 2.450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4.high-power screen changer |
1 set |
| 5.metering pump with independent speed regulation system |
1 set |
| 6.Special mould for PET strap band |
1 set |
| 7.Cooling water tank |
1 set |
| 8.The first five-roller tractor |
1 set |
| 9.Stretching oven |
1 set |
| 10.The second five-roller tractor |
1 set |
| 11.Embossing machine |
1 set |
| 12.The third five-roller tractor |
1 set |
| 13.Cooling sizing system |
1 set |
| 14.The fourth three-roller tractor |
1 set |
| 15.Single station semi-automatic winding machine |
1 set |
ADVANTAGES & FEATURES
1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process 100% recycled PP/PET bottle flakes or pellets.
3.Plasticization and stable extrusion can with PLC automatic control for the full line.
4.Melt filter with two pistons with air venting design and back flushing.
5.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
6.Workers: 2 -3 workers per shift, 12 hours/shift.
7.According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
PP PET packing strapping extrusion machine include:
1. The raw material will be dried by the dehumidifier, and the below 40 dew point make the material humidity less than 40PPM, and condensation polymerization(this is for PET straping line);
2. The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying;
3. Special designed extruder screw for PP/PET production, bear the better performance of material separating and mixing. Automatic material feeding provide the smooth environment for the PP/PET strap production.
