PET extruder PP PET strapping production line PET plastic steel strap equipment with chemical fiber filter
PRODUCT DESCRIPTION
Features of PET plastic steel belt equipment:
1. Adopt special PET extruder dedicated screw, extrusion energy can be customized according to customer requirements.
2. Can use 100% recycled PET bottle flakes or broken material pellets for production.
3. The main machine extrudes evenly, the die head flow channel extrudes stably, and the whole line is automatically controlled by PLC.
4. According to different requirements, the coating material is replaced to make the strap have better stretching ability.
5. Equipped with melt filter, ventilation design and backwashing function.
6. Number of straps: 1-8 straps, support customization.

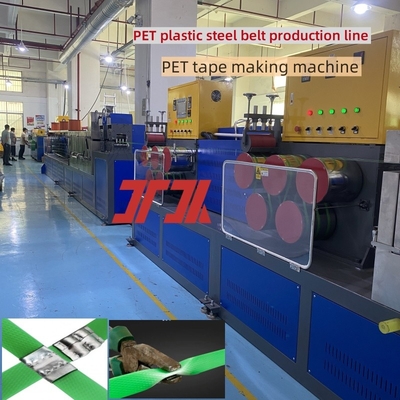

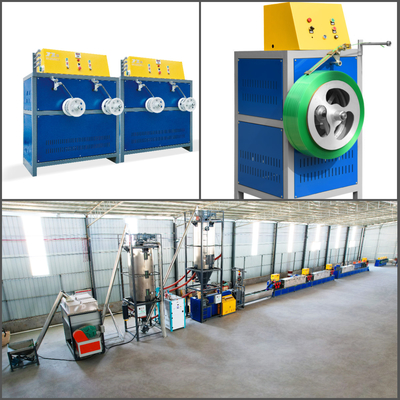

PET Strap Production Line Machine List
| Item |
Quantity |
| 1.Lifting mixing drying system and screw feeding system |
1 set |
| 2.450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4.high-power screen changer |
1 set |
| 5.metering pump with independent speed regulation system |
1 set |
| 6.Special mould for PET strap band |
1 set |
| 7.Cooling water tank |
1 set |
| 8.The first five-roller tractor |
1 set |
| 9.Stretching oven |
1 set |
| 10.The second five-roller tractor |
1 set |
| 11.Embossing machine |
1 set |
| 12.The third five-roller tractor |
1 set |
| 13.Cooling sizing system |
1 set |
| 14.The fourth three-roller tractor |
1 set |
| 15.Single station semi-automatic winding machine |
1 set |
ADVANTAGES & FEATURES
1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process 100% recycled PP/PET bottle flakes or pellets.
3.Plasticization and stable extrusion can with PLC automatic control for the full line.
4.According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5.Melt filter with two pistons with air venting design and back flushing.
6.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7.Workers: 2 -3 workers per shift, 12 hours/shift.

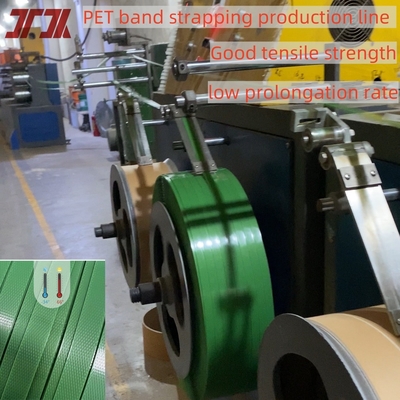

For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
* What about the maximum tensile strength of the strap? 12000N (32*1.2mm);
* What about the camber of strap? <20mm/2m;
* What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
* Will the strap be used for automatic strapping tool or manual tool? Both.
ABOUT OUR COMPANY
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.

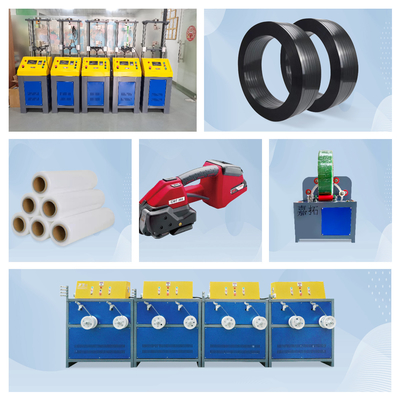

Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine for all bags, automatic packing machine for all bags and automatic packing machine for all bags; High grade, high-strength and environment-friendly PP baling machine, PP packing belt, pet plastic steel belt and other packaging materials.
The target of Jiatuo Machinery Co., Ltd. is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Jiatuo Machinery Co., Ltd. to new and old friends.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
