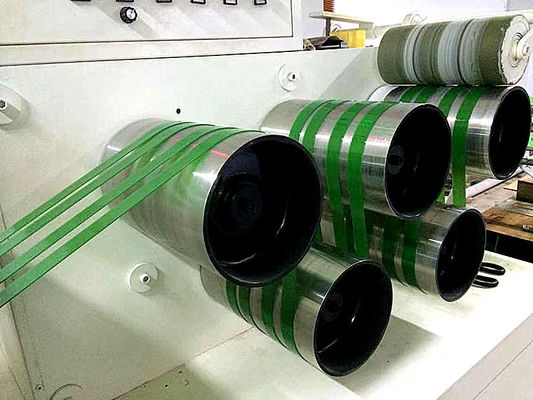

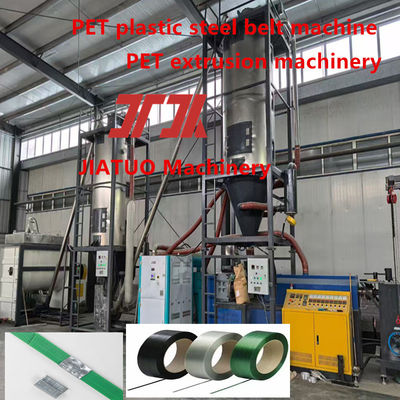

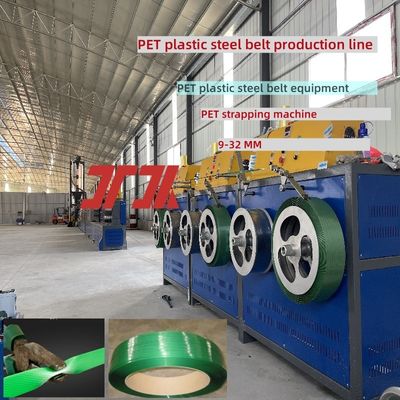

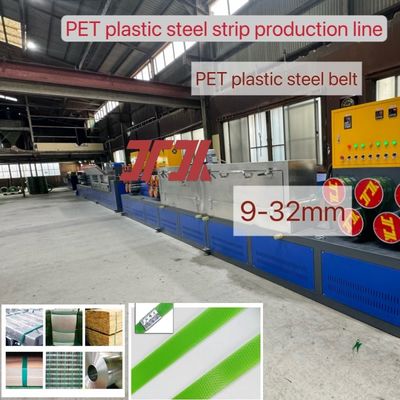

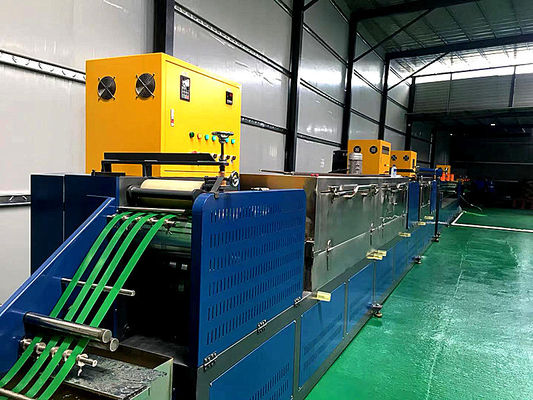

90mm Screw PET Plastic Strap Making Machine PET Strap Production Line with PLC Control
PRODUCT DESCRIPTION
Descripition:
PET Strapping is safer to apply and remove - no sharp edeges.it's strong,light weight,shock resistant and easy to dispose of because it
can be recycled.Securely seal PET strap with serrated seals and one of our Manual PET tools or use Columbia friction weld tools without the need for seals.100% Recyclable.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Advantages of PET strap
- Use 100% Recycled PET/PP Flakes to reduce the cost.
- Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.
- Special design hot forming tensile tank to make good forming ,equal width,straight strap.
Core Components of PET Plastic Steel Strip Equipment:
1. Five-Roller Stretching System
Stretching Unit: Equipped with 3-5 sets of traction rollers, utilising silicone or chrome-plated rollers to prevent strip scratching; adjustable stretching speed range of 5-20m/min accommodates production requirements for plastic steel strips of varying thicknesses (0.4-1.2mm).
2. Five-Roller Forming System

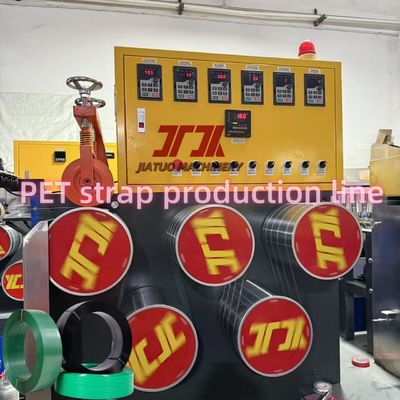

Temperature Control System: Utilises a PLC control system with touchscreen operation, achieving ±1℃ precision across the entire line. Real-time temperature curves for each section are displayed, with fault alarm functionality (e.g., temperature anomalies, motor overload) enabling prompt operator intervention.
ABOUT US
PET and PP straps machine making are our factory main jobs. we have long time experience and also we are update the new technology every set of machine.
high tensile strength straps , precision in the size , ensure the straps can use with automatic packing tools.
We are the expert level on PP and pet straps machine design and making . we know what is the latest technology and practical function in the machine. we have long time experience and also we are devote ourselves to research and develop new technology . we focus on how to save the energy spend and how to save worker consumption. We also focus on high quality of the straps.
What is high quality of straps:
1. pet straps: can use to package cotton, fiber, fabric, paper and some loose and easy relax commodities. Packing stone and metal is very easy, but packing loose things need high flexible and high strength straps.
2. PP straps : can use in automatic packing machine . embossing pattern clear. Our machine stretching rate can arrive 13 times when producing.
