Extrusion Machinery 9-32 mm PET Steel Strip Production Line PET Extrusion Equipment for 100% PET Crushed Material Production
PRODUCT DESCRIPTION
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
PET Strap Production Line Machine List
| Item |
Quantity |
| 1. Lifting mixing drying system and screw feeding system |
1 set |
| 2. 450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4. high-power screen changer |
1 set |
| 5. metering pump with independent speed regulation system |
1 set |
| 6. Special mould for PET strap band |
1 set |
| 7. Cooling water tank |
1 set |
| 8. The first five-roller tractor |
1 set |
| 9. Stretching oven |
1 set |
| 10. The second five-roller tractor |
1 set |
| 11. Embossing machine |
1 set |
| 12. The third five-roller tractor |
1 set |
| 13. Cooling sizing system |
1 set |
| 14. The fourth three-roller tractor |
1 set |
| 15. Single station semi-automatic winding machine |
1 set |
FEATURES

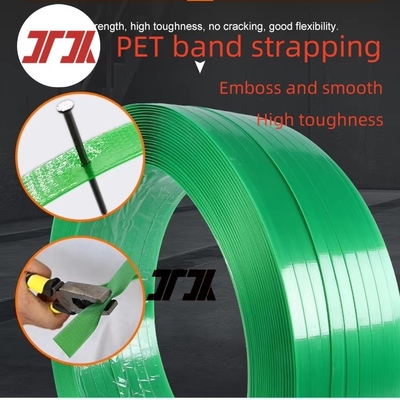

1. PET plastic steel strip is a kind of packaging material with good tensile strength and excellent fusion performance.
2. It has a very good tightening and holding capacity, and does not relax for a long time after packing, so as to ensure that the goods have excellent impact resistance in long-distance transportation.
3. It can be packed directly with PET plastic steel belt, and the goods will not be damaged or corroded.
4. Good flexibility, convenient and safe operation. PET plastic steel belt has no sharp edge of steel belt, which will not scratch the package or hurt your hands. No special tools are needed when cutting. Even if the binding is tighter, people will not be hurt when cutting.
5. Excellent weather resistance, between - 50 ºC - 100 ºC, keep good stability.
6. Beautiful appearance, environmental protection, recyclable.
7. Good economic benefits. The density of PET plastic steel strip is only 1 / 6 of that of steel strip, and the price per unit length is relatively low. The length of one ton of plastic steel strip is equivalent to that of six tons of steel strip, and the cost per meter is lower than that of steel strip.
ABOUT US
we specialized in making PET and PP straps machine for 20 years of experience, we researched and studied all the advanced new technology machine from Italy, Germany,and America. We absorbed all their advantages technology, and coordinate with our experience, making high technology, low consumption pet straps and pp straps line. 30% electricity is saving in our machine compare with common machine. CE standards is seriously and tightly carrying out in our machine. On the machine, every units has emergency stop system. The stretching rollers has emergency break in order to stop the rollers rotary within 0.1 second when there is some danger for worker or straps wrapping on the rollers. All the rollers has shield, avoid workers close to the rollers.
FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?

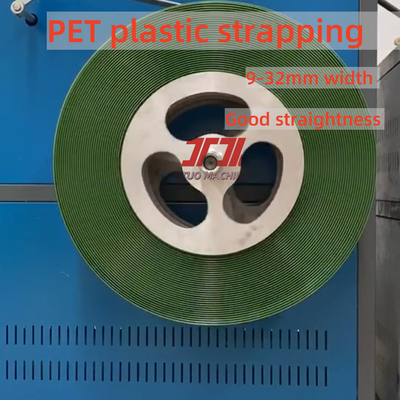

A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
